Installation Procedure

WARNING: This page is about a different car, the 2003 Pontiac Montana, 2003 Oldsmobile Silhouette, and 2003 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the cruise control release switch electrical connector.
  2. With the electrical connector index notch at the 10 o'clock position, install the cruise control release switch to the retainer.

    Important:  Do NOT move or push the brake pedal.

  3. Slide the switch into the retainer until the plunger is fully depressed into the barrel.

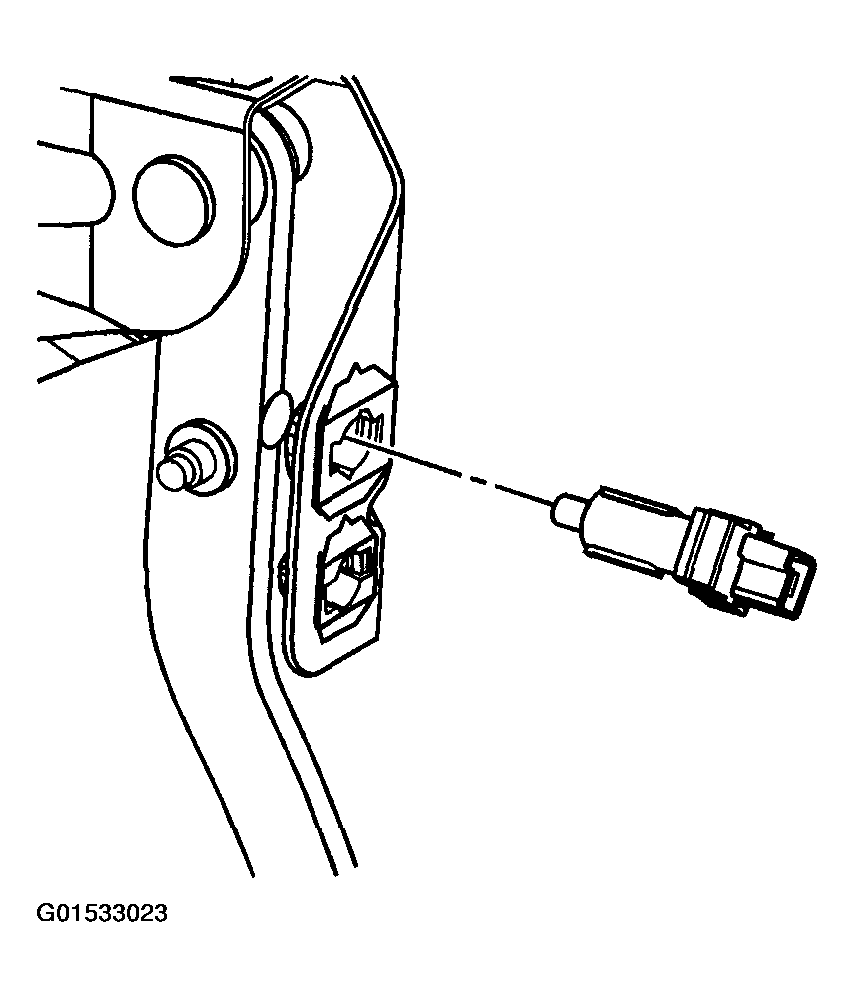

    Fig 1: Installing Cruise Control Release Switch Electrical Connector
    G01533023Courtesy of GENERAL MOTORS CORP.
  4. Rotate the cruise control release switch clockwise until the travel stop has been reached (approximately 60 degrees). The electrical connector index notch should now be at the 12 o'clock position.
  5. Ensure that the cruise control system operates properly.
  6. Install the left side instrument panel insulator. Refer to CLOSEOUT/INSULATOR PANEL REPLACEMENT - LEFT  in Instrument Panel, Gages and Console.

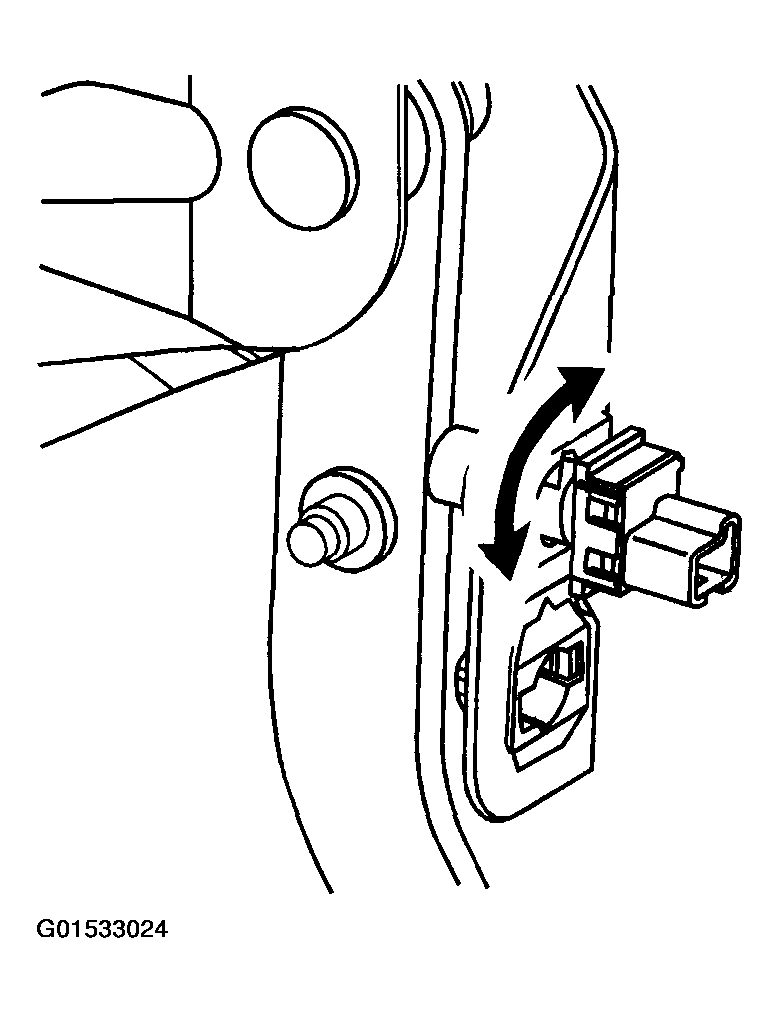

    Fig 2: Rotating Cruise Control Release Switch Clockwise
    G01533024Courtesy of GENERAL MOTORS CORP.
