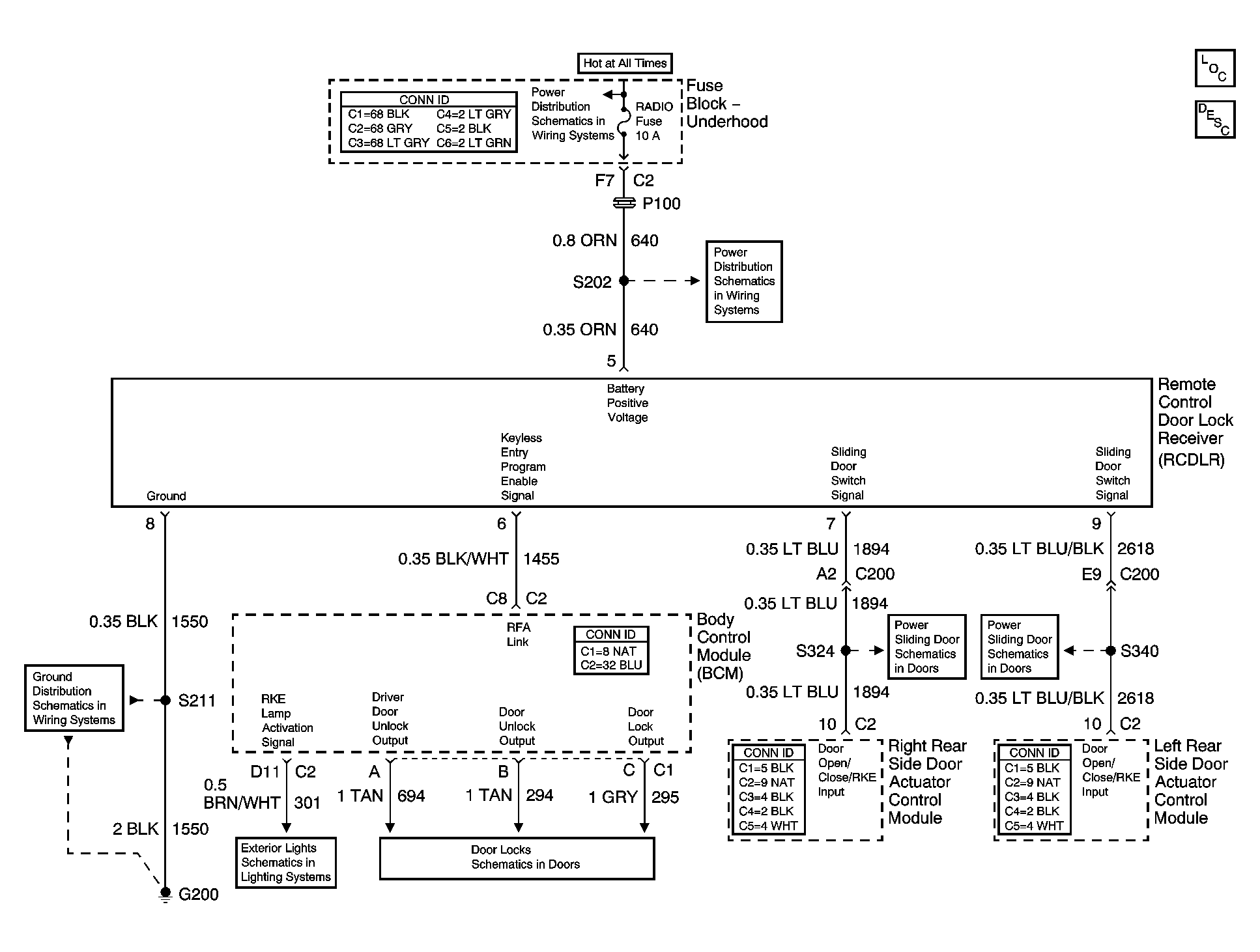

Home >> Chevrolet >> 2005 >> Venture Base, Van Cargo Extended >> Repair and Diagnosis >> Body & Frame >> Door Locks >> Keyless Entry System >> Schematic And Routing Diagrams >> Keyless Entry Schematics
