Interior Lights Schematics

WARNING: This page is about a different car, the 2005 Pontiac Aztek and 2005 Buick Rendezvous. However, it is still accessible from the selected car via links, so may be relevant.

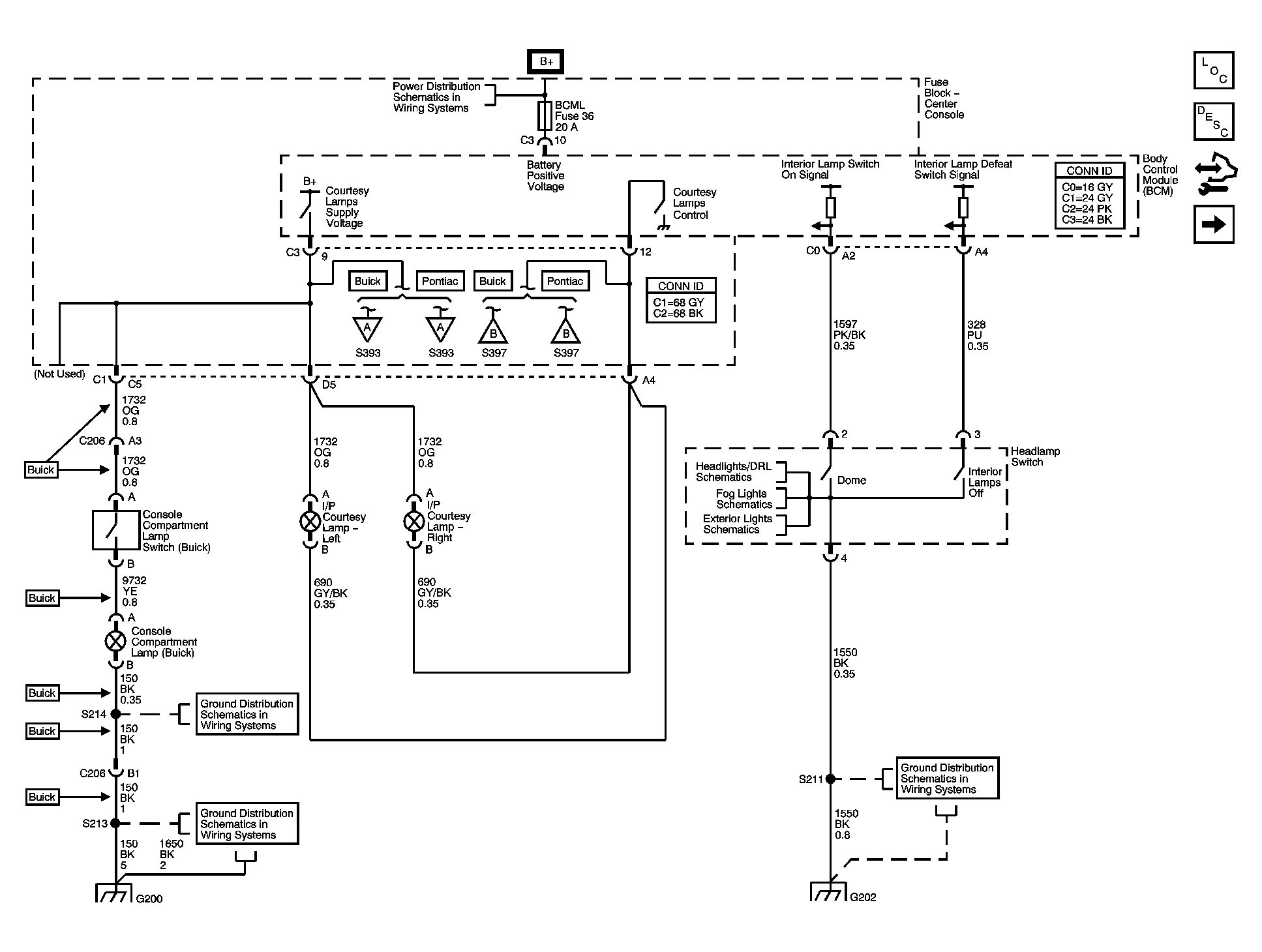

Fig 1: I/P Lighting, Lamp Control

Courtesy of GENERAL MOTORS CORP.

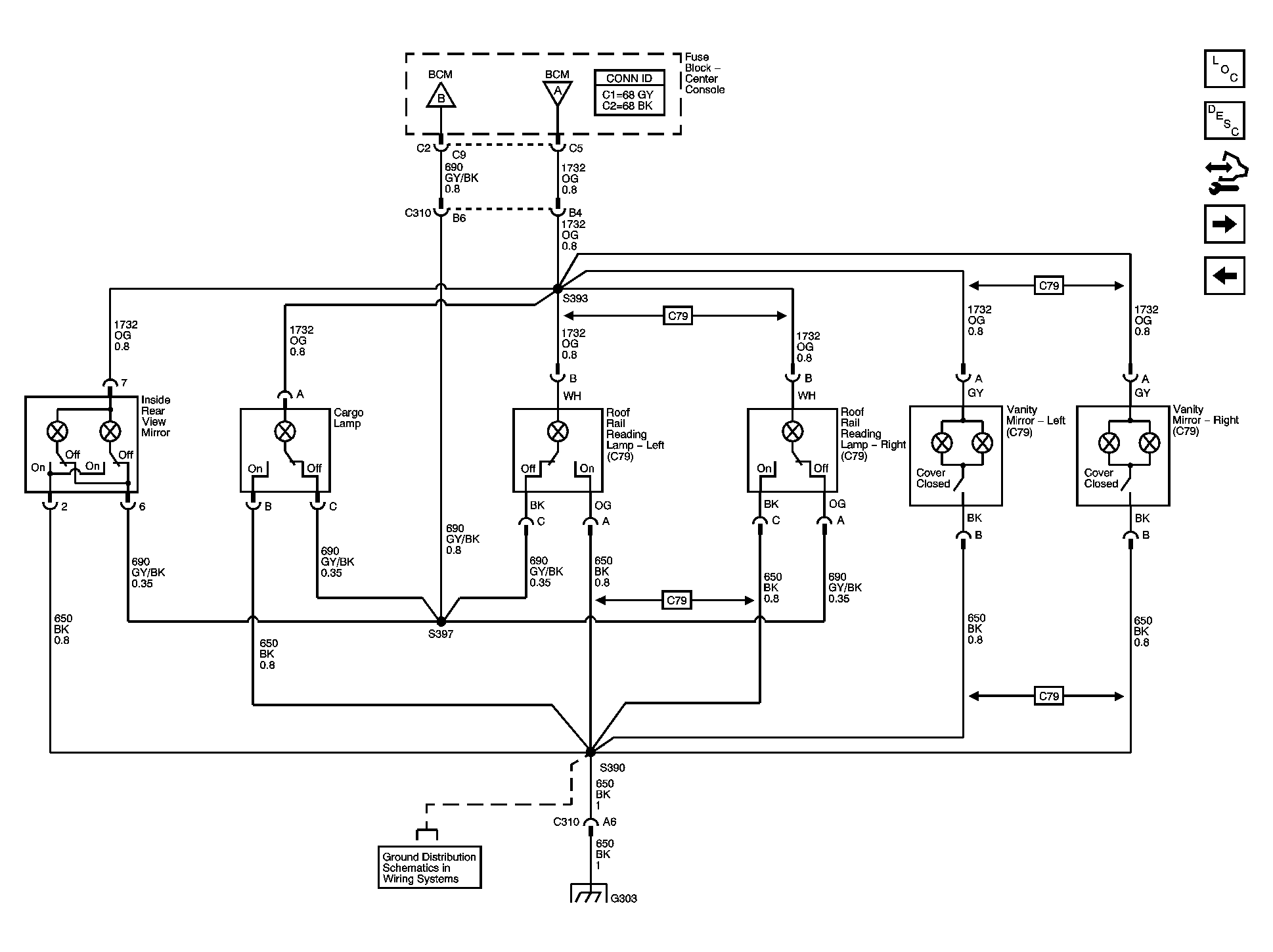

Fig 2: Roof Lighting - Pontiac

Courtesy of GENERAL MOTORS CORP.

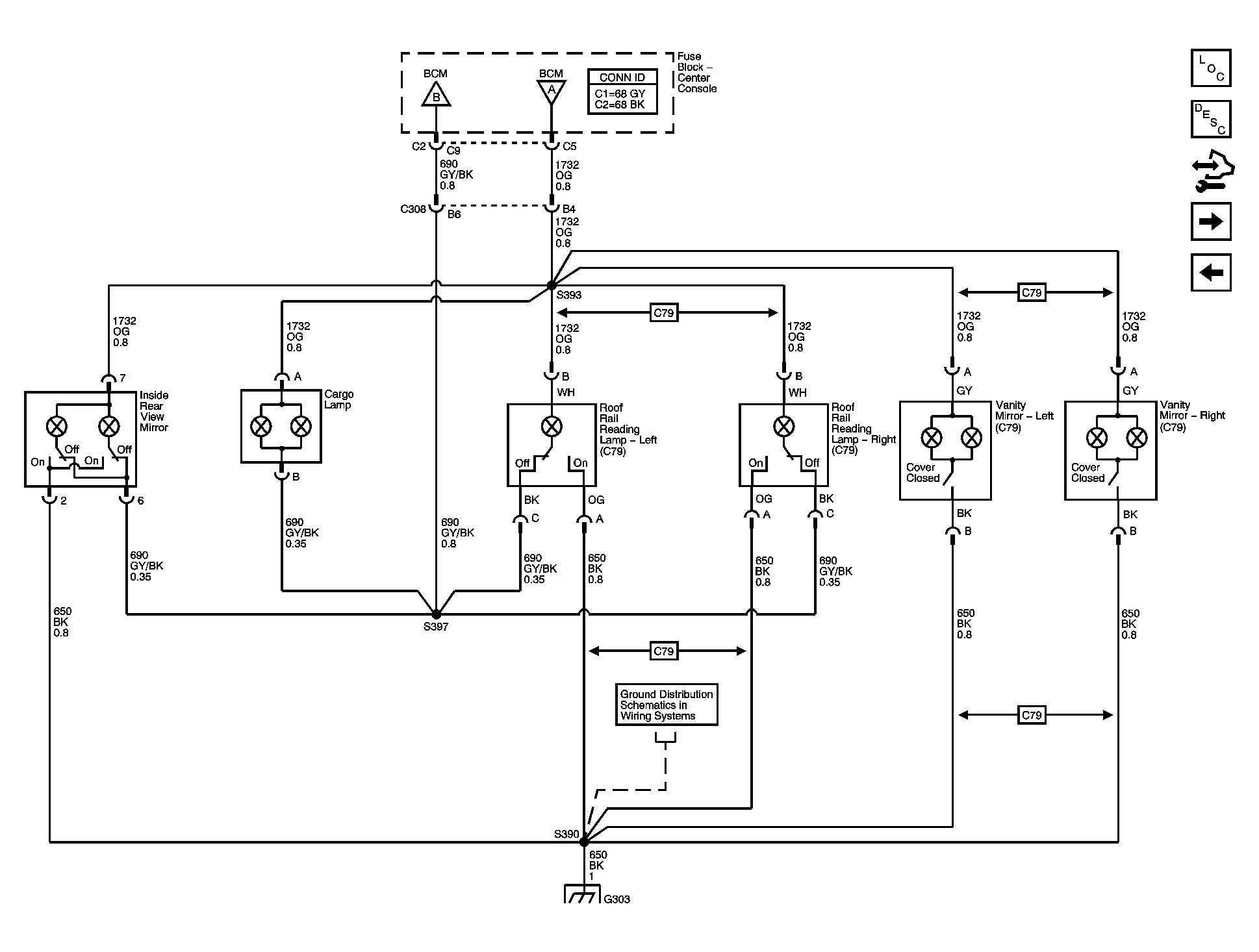

Fig 3: Roof Lighting - Buick

Courtesy of GENERAL MOTORS CORP.

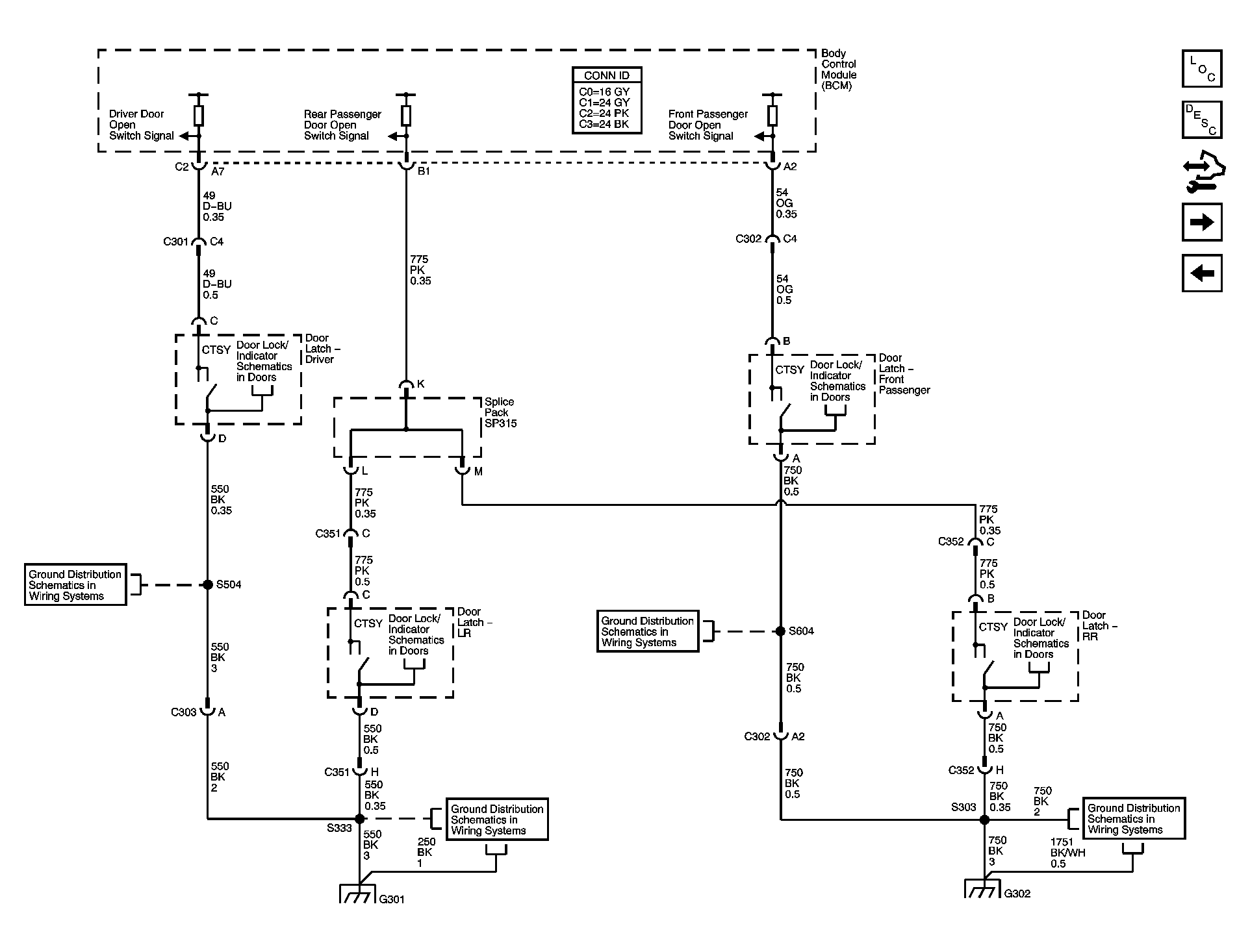

Fig 4: Door Switches

Courtesy of GENERAL MOTORS CORP.

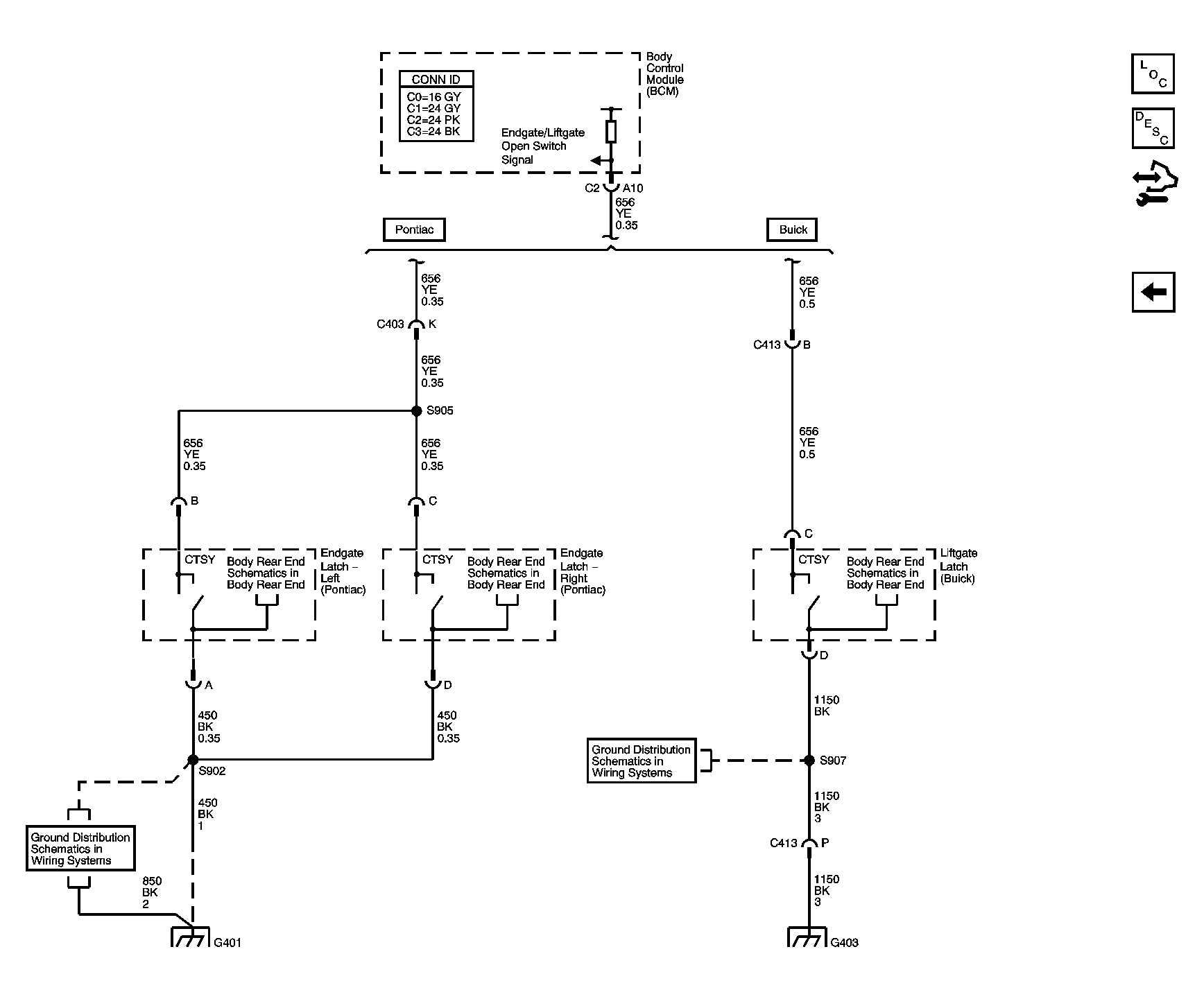

Fig 5: Lift Window, Endgate and Liftgate Switches

Courtesy of GENERAL MOTORS CORP.
