Installation Procedure

WARNING: This page is about a different car, the 2005 Chevrolet Malibu. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the stabilizer shaft.

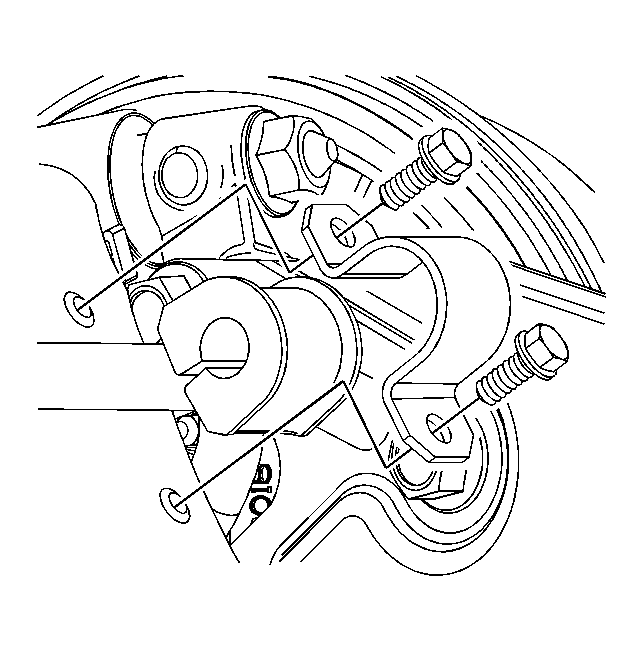

    2. Fig 1: Removing Stabilizer Shaft Bracket Bolts
    GM1236975Courtesy of GENERAL MOTORS CORP.
  2. Install the stabilizer shaft insulators.
  3. Install the stabilizer shaft brackets.
    4. NOTE: Refer to Fastener Notice in Cautions and Notices.
  4. Install the stabilizer shaft bracket bolts.

    Tighten:  Tighten the stabilizer shaft insulator bracket retaining bolts to 35 N.m (26 lb ft).

    5. Fig 2: Removing Stabilizer Shaft To Knuckle Bolts
    GM1236972Courtesy of GENERAL MOTORS CORP.
  5. Install the stabilizer shaft links to knuckle bolts.

    Tighten:  Tighten the bolts to 50 N.m (37 lb ft).

  6. Lower the vehicle.
