Installation Procedure

WARNING: This page is about a different car, the 2005 Chevrolet Malibu. However, it is still accessible from the selected car via links, so may be relevant.
  1. Place the shock in the vehicle.

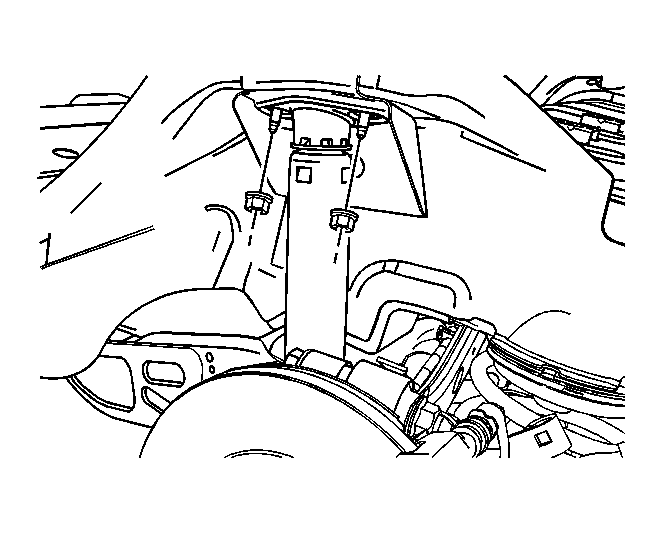

    2. Fig 1: Removing Upper Shock Nuts
    GM1386845Courtesy of GENERAL MOTORS CORP.
    NOTE: Refer to Fastener Notice in Cautions and Notices.
  2. Install the shock absorber to body nuts.

    Tighten:  Tighten the nuts to 25 N.m (18 lb ft).

    3. Fig 2: Removing Lower Shock To Knuckle Bolt
    GM1236981Courtesy of GENERAL MOTORS CORP.
  3. Install the shock absorber to knuckle bolt.

    Tighten:  Tighten the bolt to 180 N.m (133 lb ft).

  4. Remove the jack stand from the rear knuckle.
  5. Install the tire and wheel. Refer to Tire and Wheel Removal and Installation in Tires and Wheels.
  6. Lower the vehicle.
