Installation Procedure

WARNING: This page is about a different car, the 2005 Chevrolet Malibu. However, it is still accessible from the selected car via links, so may be relevant.
    Fig 1: Removing Brake Caliper Bracket Bolts
    GM1334850Courtesy of GENERAL MOTORS CORP.
  1. Install the brake caliper bracket.
    2. NOTE: This is a self-retaining fastener joint that does not require thread locking compounds. Do not attempt to clean the threads with a standard tap. If a standard tap is used, damage to the joint threads will occur.
    NOTE: Refer to Fastener Notice in Cautions and Notices.
  2. Install the brake caliper mounting bracket bolts (2).

    Tighten:  Tighten the brake caliper mounting bracket bolts to 115 N.m (85 lb ft).

    3. Fig 2: Removing Brake Pads From Brake Caliper Mounting Bracket
    GM1335587Courtesy of GENERAL MOTORS CORP.
  3. Install the brake pad retainers (2) to the brake caliper bracket (3).
  4. Install the brake pads (1) to the brake caliper bracket (3).
  5. Install the brake caliper. Refer to Brake Caliper Replacement - Rear .

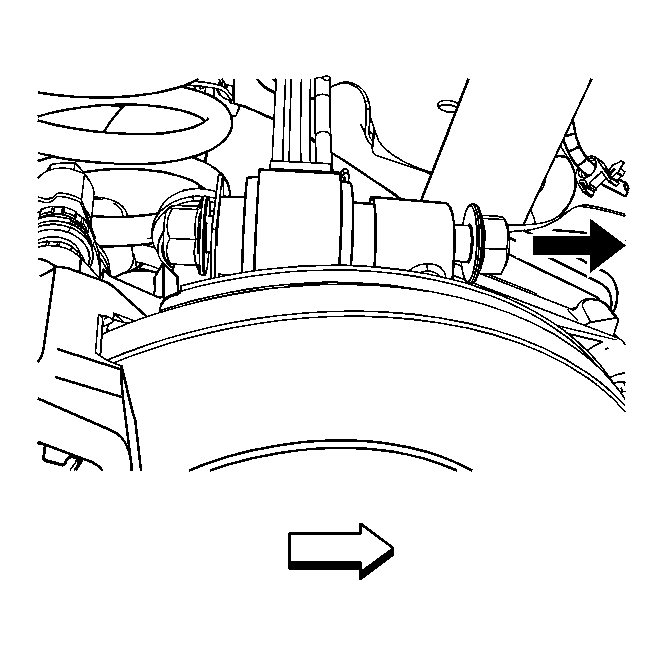

    6. Fig 3: Loosening Upper Control Arm Bolt And Position Bolt Forward As Shown
    GM1334846Courtesy of GENERAL MOTORS CORP.
  6. Tighten the upper control arm bolt.

    Tighten:  Tighten the upper control arm bolt to 180 N.m (133 lb ft).

  7. Install the rear tire and wheel assembly. Refer to Tire and Wheel Removal and Installation in Tire and Wheels.
  8. Lower the vehicle.
  9. Pump the brake pedal 2-3 times in order to seat the rear disc brake pads to the rotor.
