Installation Procedure

WARNING: This page is about a different car, the 2005 Chevrolet Malibu. However, it is still accessible from the selected car via links, so may be relevant.

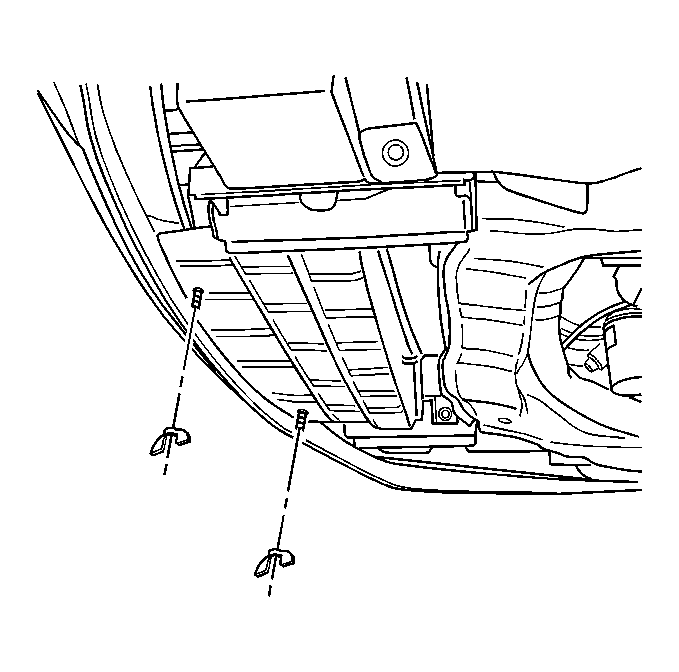

    Fig 1: Installing Wing Nuts And Push-In Retainers In Air Dam
    GM1219353Courtesy of GENERAL MOTORS CORP.
  1. Position the air dam to the front fascia.
  2. Install the wing nuts and the push-in retainers to the air dam.

    Reposition the air baffle to the front fascia.

    3. NOTE: Refer to Fastener Notice in Cautions and Notices.

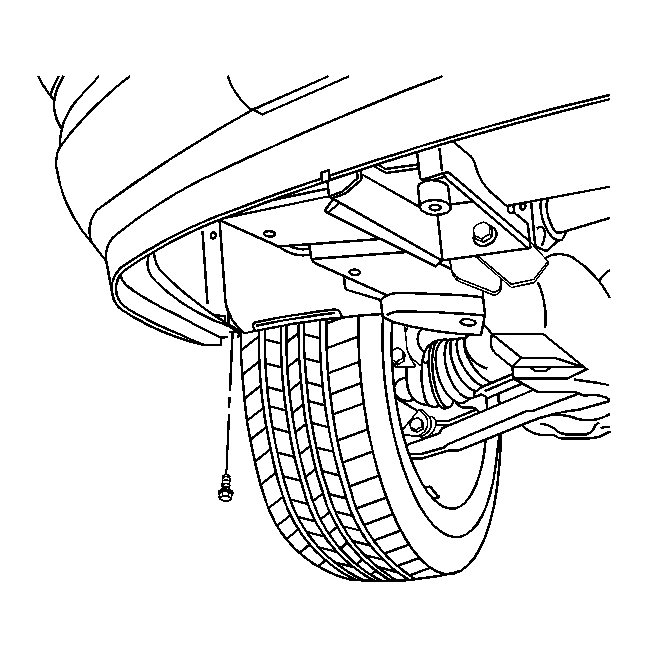

    Fig 2: Installing Bolts In Air Dam
    GM1219352Courtesy of GENERAL MOTORS CORP.
  3. Install the bolts to the air dam.

    Tighten:  Tighten the bolts to 10 N.m (89 lb in).

  4. Lower the vehicle.
