Installation Procedure

WARNING: This page is about a different car, the 2005 Chevrolet Malibu. However, it is still accessible from the selected car via links, so may be relevant.

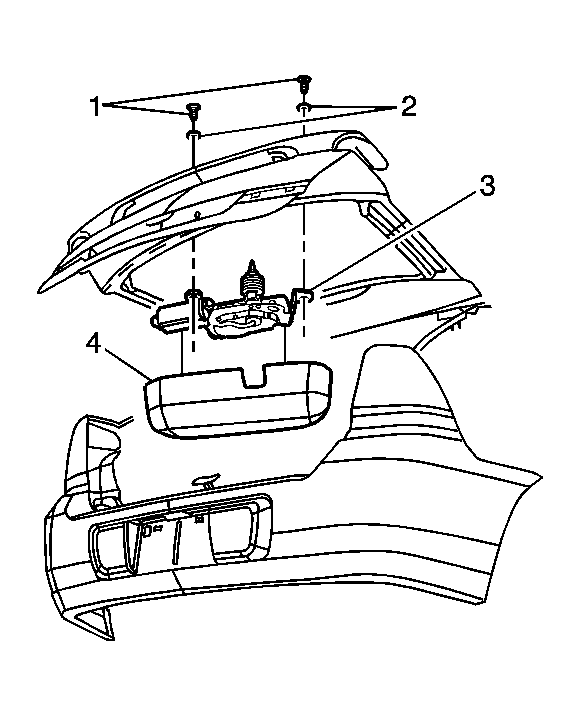

    Fig 1: Removing/Installing Wiper Motor
    GM1523829Courtesy of GENERAL MOTORS CORP.
  1. Position the rear wiper motor (3) to the liftgate.
    2. NOTE: Refer to Fastener Notice in Cautions and Notices.
  2. Install the wiper motor washers (2) and bolts (1).

    Tighten:  Tighten the bolts to 7 N.m (62 lb in).

  3. Connect the wiper motor electrical connector.
  4. Connect the washer hose to the wiper motor.
  5. Install the wiper motor cover (4) to the motor.
  6. Lower the liftgate.

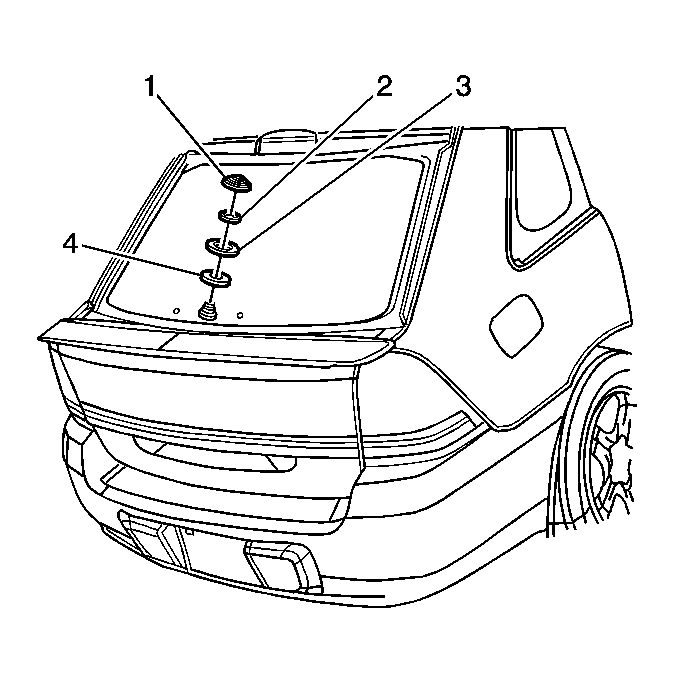

    7. Fig 2: Wiper Motor Shaft Components
    GM1523827Courtesy of GENERAL MOTORS CORP.
  7. Install the wiper shaft seal (4) and spacer (3).
    8. NOTE: Refer to Fastener Notice in Cautions and Notices.
  8. Install the wiper motor shaft nut (2).

    Tighten:  Tighten the nut to 5 N.m (44 lb in).

  9. Install the wiper motor shaft cap (1).
  10. Install the rear wiper arm. Refer to Wiper Arm Replacement - Rear .
