Removal Procedure

WARNING: This page is about a different car, the 2005 Chevrolet Malibu. However, it is still accessible from the selected car via links, so may be relevant.
    CAUTION: When a lift gate hold open device is being removed or installed, provide alternate support to avoid the possibility of damage to the vehicle or personal injury.
  1. Open and support the liftgate.

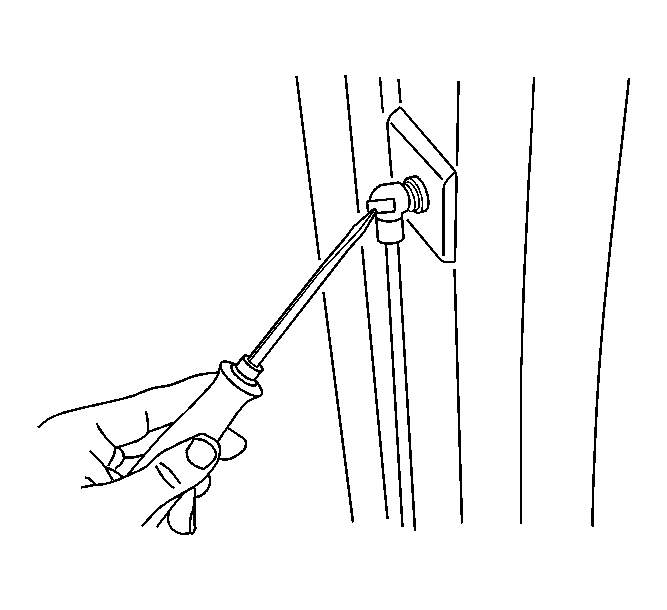

    2. Fig 1: Lifting Up Snap Ring Retainer
    GM1325770Courtesy of GENERAL MOTORS CORP.
    NOTE: Apply pressure only at the end of the liftgate/hood assist rod that you are removing or attaching. Do NOT apply pressure to the middle of the rod because damage or bending will result.
  2. Lift up the snap ring retainer on the bottom of the assist rod struts using a small flat-bladed tool.
  3. Remove the bottom of the strut from the ball stud on the body.
    4. Fig 2: View Of Top Of Strut
    GM313605Courtesy of GENERAL MOTORS CORP.
  4. Lift up on the snap ring at the top of the strut using a small flat-bladed tool.
  5. Remove the top of the strut from the ball stud.
  6. Remove the strut from the vehicle.
