SIR Schematics

WARNING: This page is about a different car, the 2005 Chevrolet Malibu. However, it is still accessible from the selected car via links, so may be relevant.

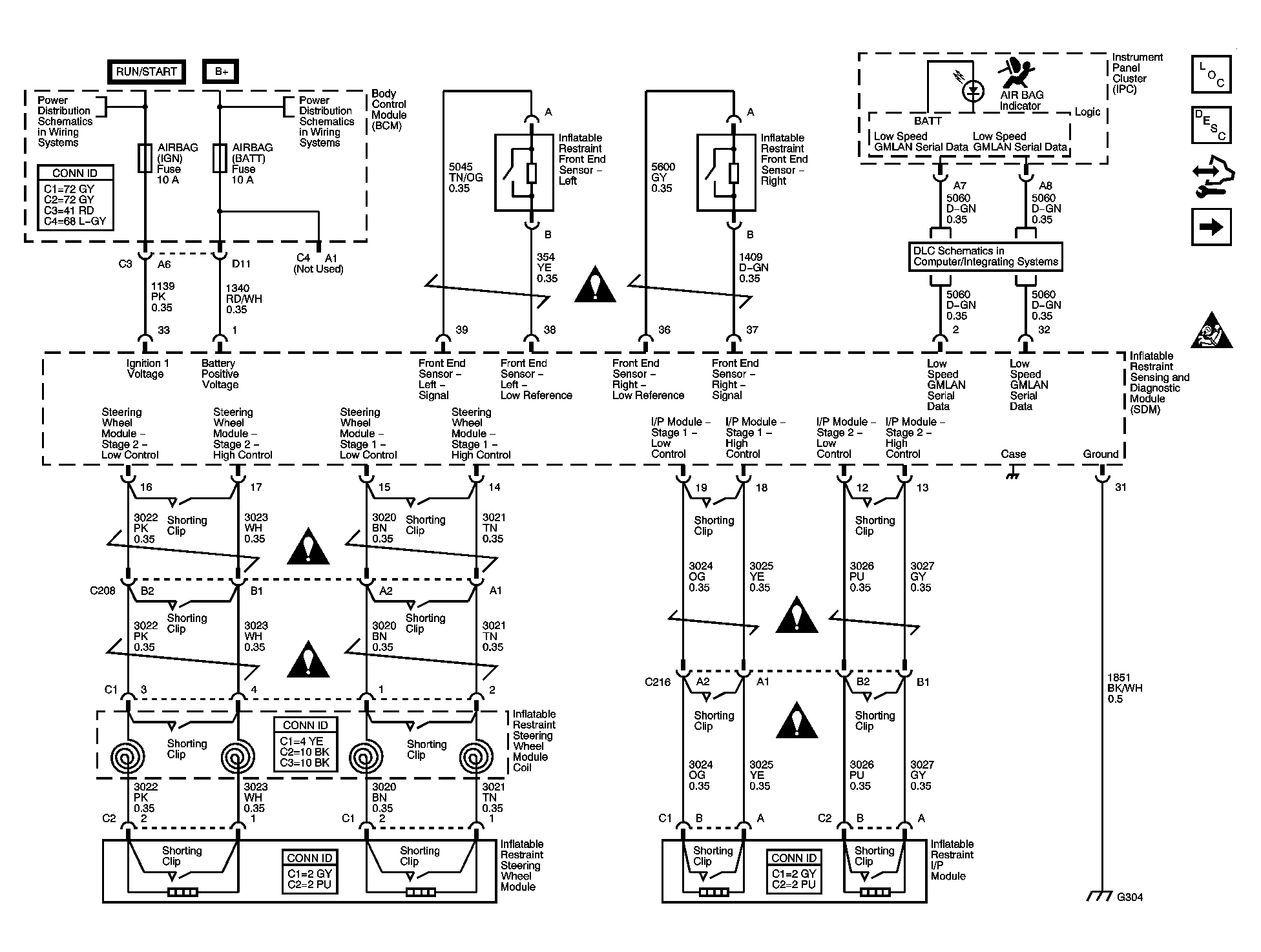

Fig 1: Power, Ground and Sensors
GM1501050Courtesy of GENERAL MOTORS CORP.

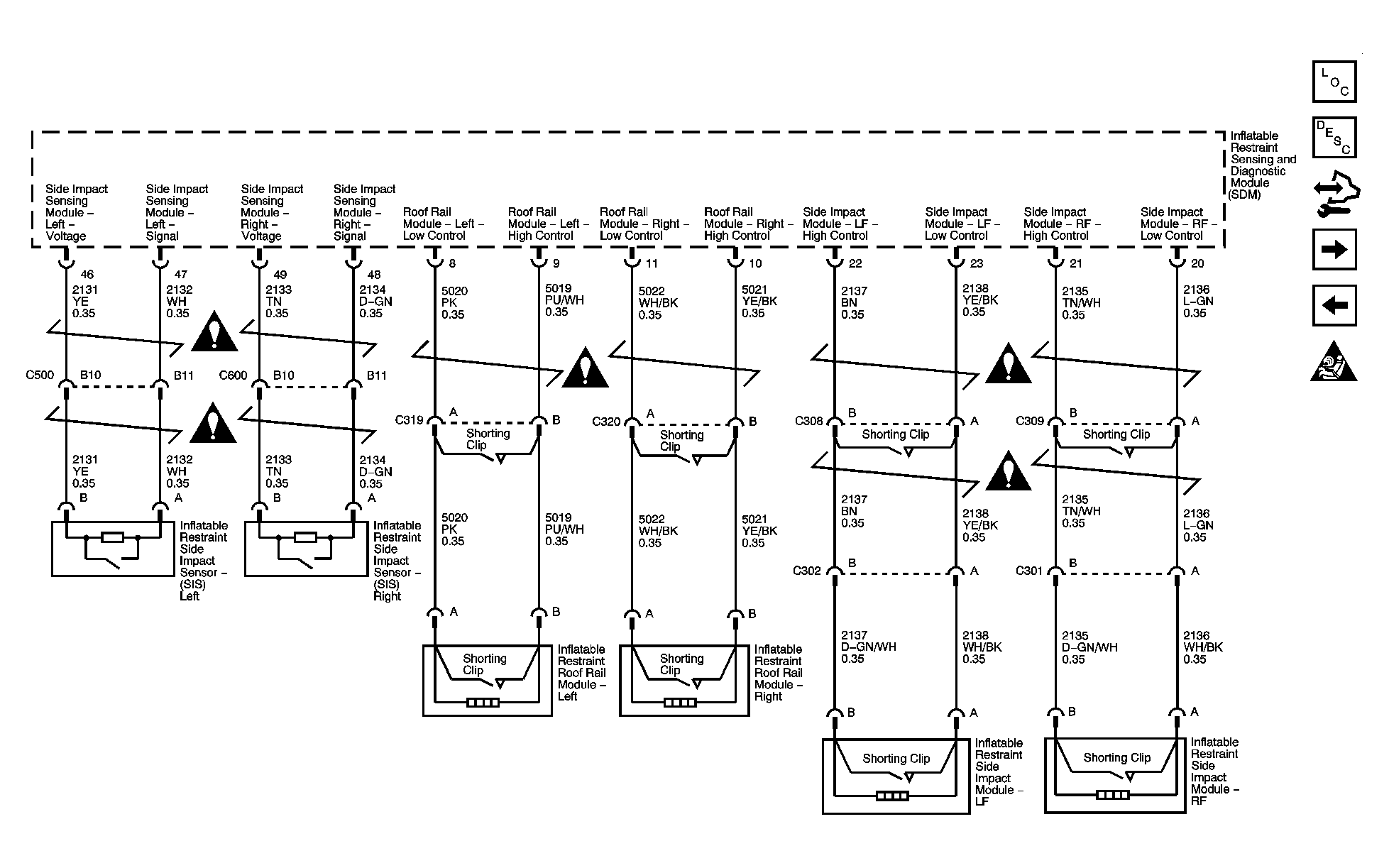

Fig 2: Impact Modules
GM1501052Courtesy of GENERAL MOTORS CORP.

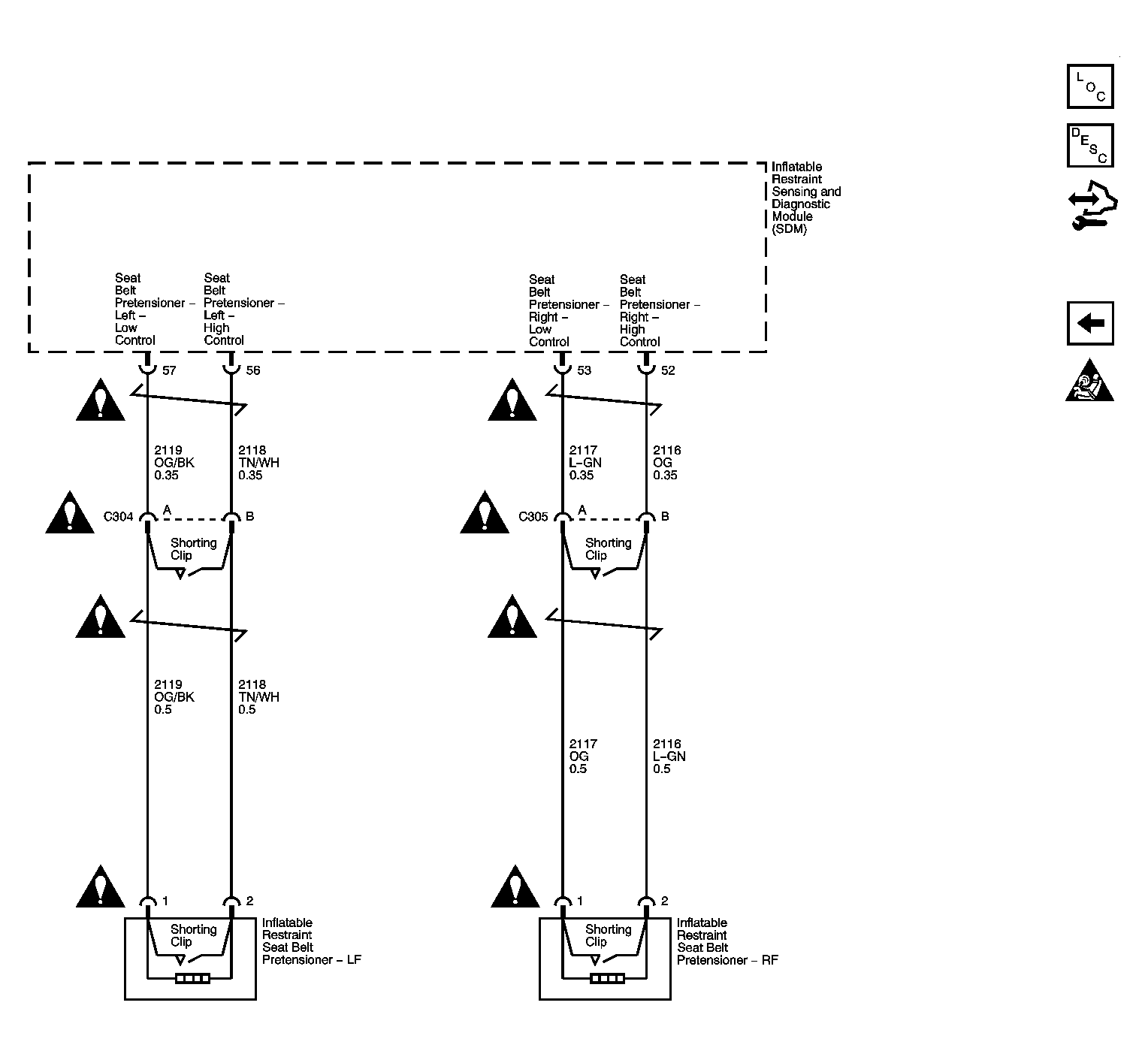

Fig 3: Seat Belt Pretensioners
GM1501053Courtesy of GENERAL MOTORS CORP.
