Removal Procedure

WARNING: This page is about a different car, the 2005 Chevrolet Malibu. However, it is still accessible from the selected car via links, so may be relevant.

Remove the front door trim panel. Refer to Trim Panel Replacement - Side Front Door .
Remove the front door water deflector. Refer to Water Deflector Replacement - Front Door .

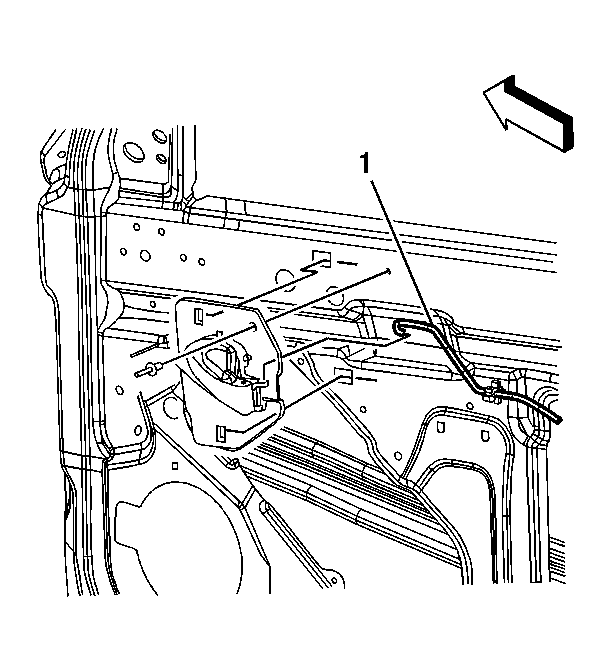

Fig 1: Removing Rods From Inside Door Handle

Courtesy of GENERAL MOTORS CORP.

Remove the rods from the inside door handle (1). Refer to Door Handle Replacement - Front Inside .
Remove the clip securing the rods to the front door.
Remove the outside door handle. Refer to Door Handle Replacement - Outside .

Fig 2: Identifying Door Lock Components

Courtesy of GENERAL MOTORS CORP.

Remove the screws (1, 2, 3) securing the lock to the front door.
Remove the lock from the front door with the inside rods attached to the lock.

Fig 3: Disconnecting Electrical Connectors

Courtesy of GENERAL MOTORS CORP.

Disconnect the electrical connectors.
Remove the window guides from the lock.
Remove the inside door handle rods from the lock.
