Removal Procedure

WARNING: This page is about a different car, the 2005 Chevrolet Malibu. However, it is still accessible from the selected car via links, so may be relevant.

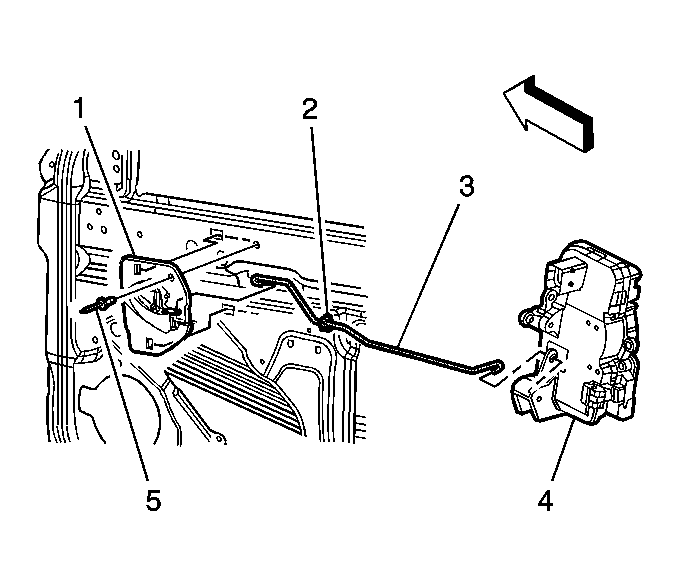

    Fig 1: Removing Inside Handle Rod (3) By Removing Rivet (5) From Inside Door Handle (1)
    GM1234158Courtesy of GENERAL MOTORS CORP.
  1. Remove the front door trim panel. Refer to Trim Panel Replacement - Side Front Door .
  2. Remove the front door water deflector. Refer to Water Deflector Replacement - Front Door .
  3. Remove the inside handle rod (3) by removing the rivet (5) from the inside door handle (1). Refer to Door Handle Replacement - Front Inside .
  4. Remove the front door lock (4). Refer to Lock Replacement - Front Door .
  5. Unclip the handle rod retainer (2). Remove the front door inside handle rod from the door lock.
