Removal Procedure

WARNING: This page is about a different car, the 2005 Chevrolet Malibu. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the door inner trim panel. Refer to Trim Panel Replacement - Side Front Door .
  2. Remove the front door water deflector. Refer to Water Deflector Replacement - Front Door .

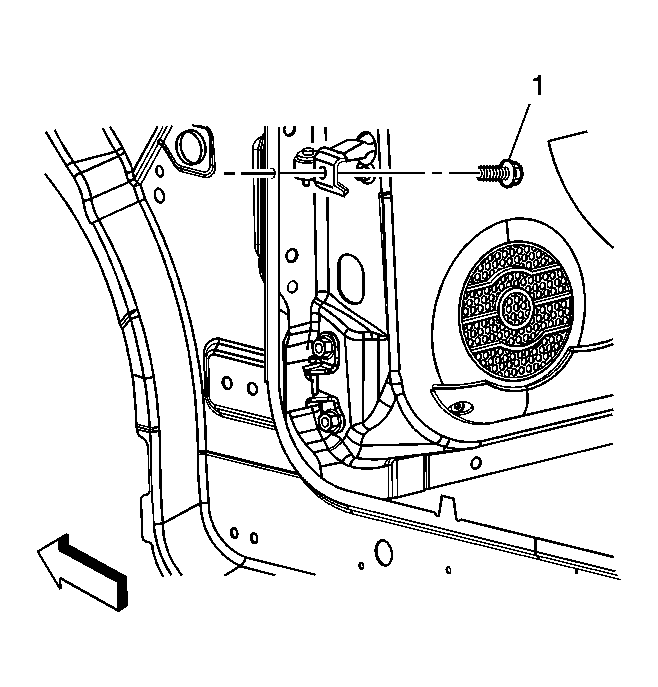

    3. Fig 1: Removing Front Door Check Link Bolt
    GM1211323Courtesy of GENERAL MOTORS CORP.
  3. Remove the front door check link bolt (1).

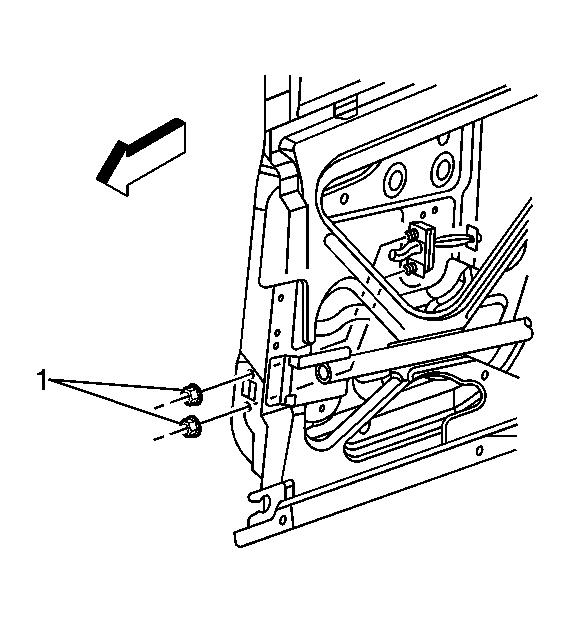

    4. Fig 2: Removing Front Door Check Link Nuts
    GM1224454Courtesy of GENERAL MOTORS CORP.
  4. Remove the front door check link nuts (1).

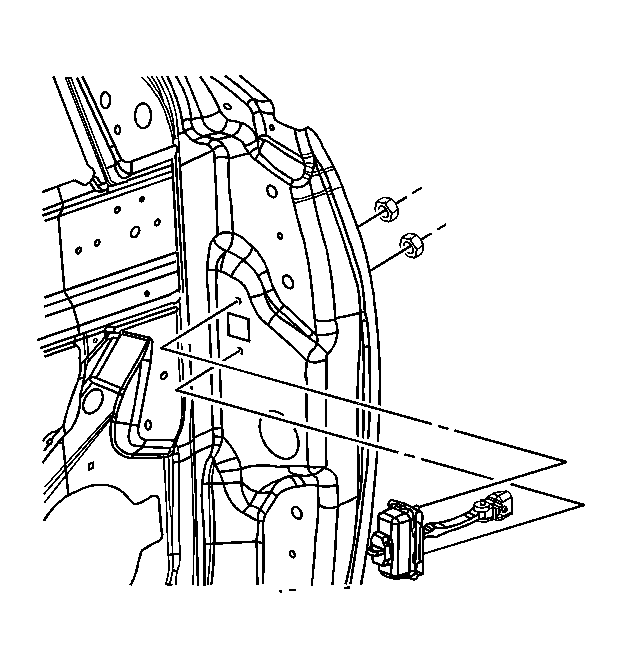

    5. Fig 3: Removing Front Door Check Link From Door
    GM1211300Courtesy of GENERAL MOTORS CORP.
  5. Remove the front door check link from the door.
