Ground Distribution Schematics

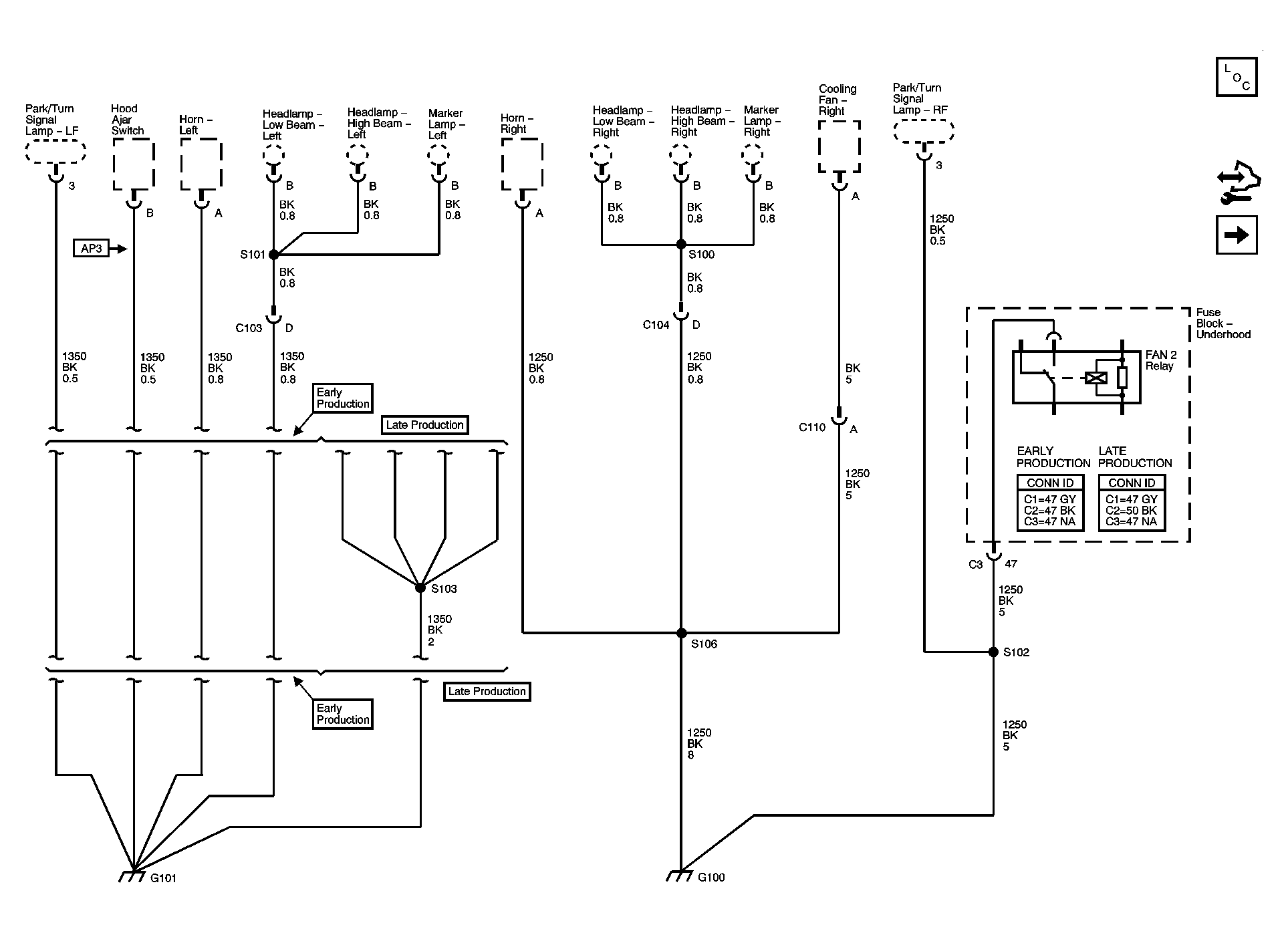

Fig 1: G100 & G101 Schematic

GM1486070

Courtesy of GENERAL MOTORS CORP.

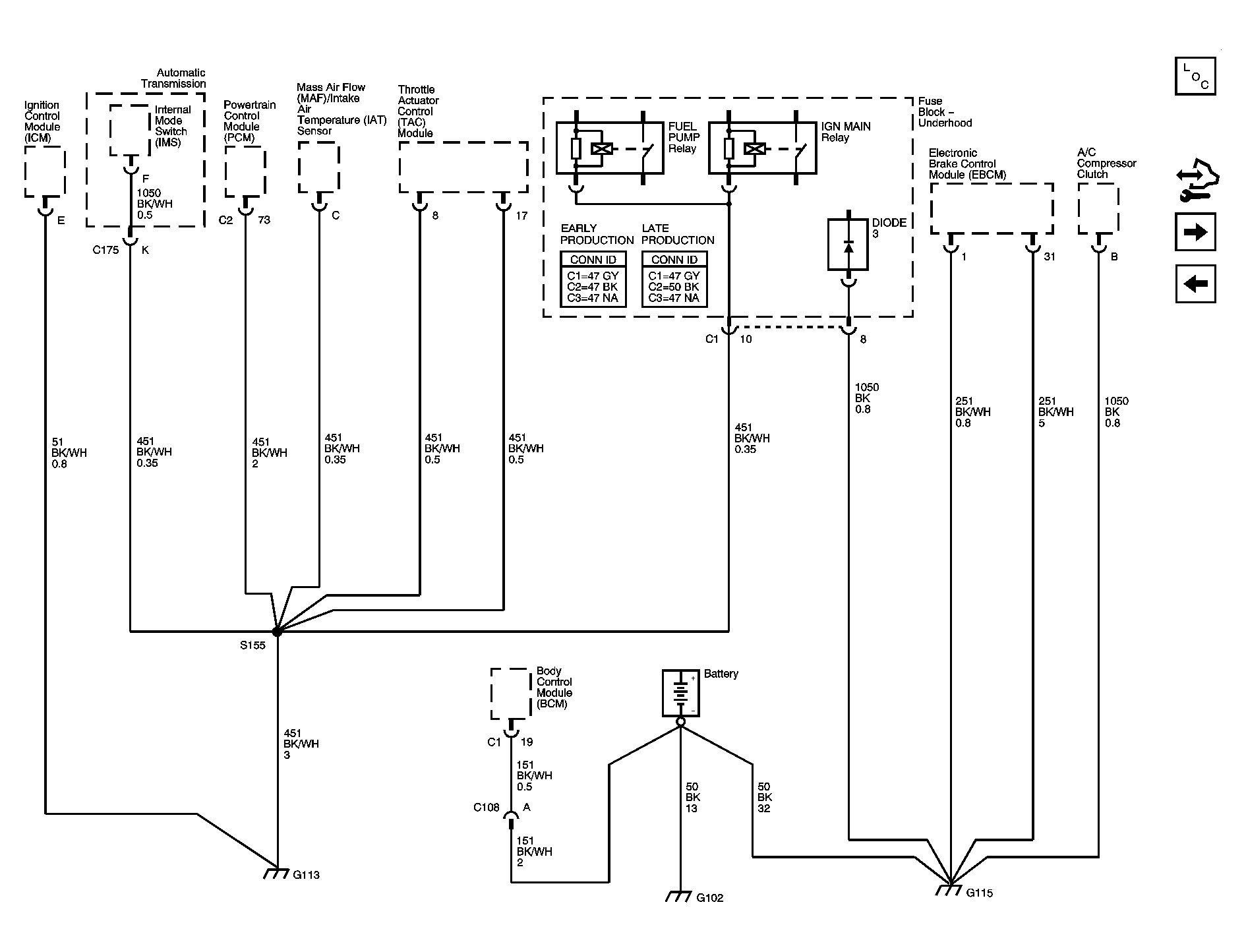

Fig 2: G102, G113 & G115 Schematic

GM1486076

Courtesy of GENERAL MOTORS CORP.

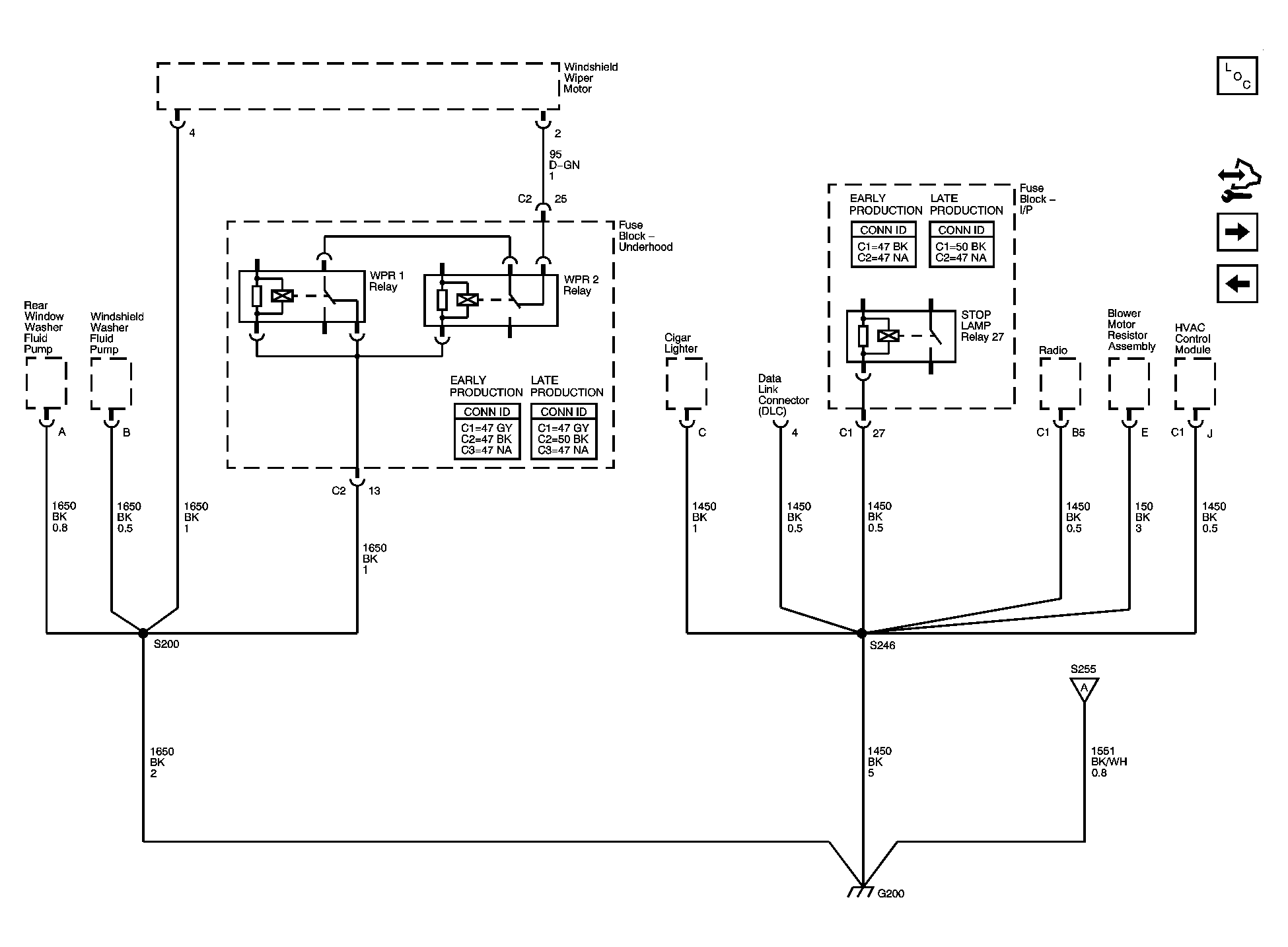

Fig 3: G200 Schematic - 1 of 2

GM1486086

Courtesy of GENERAL MOTORS CORP.

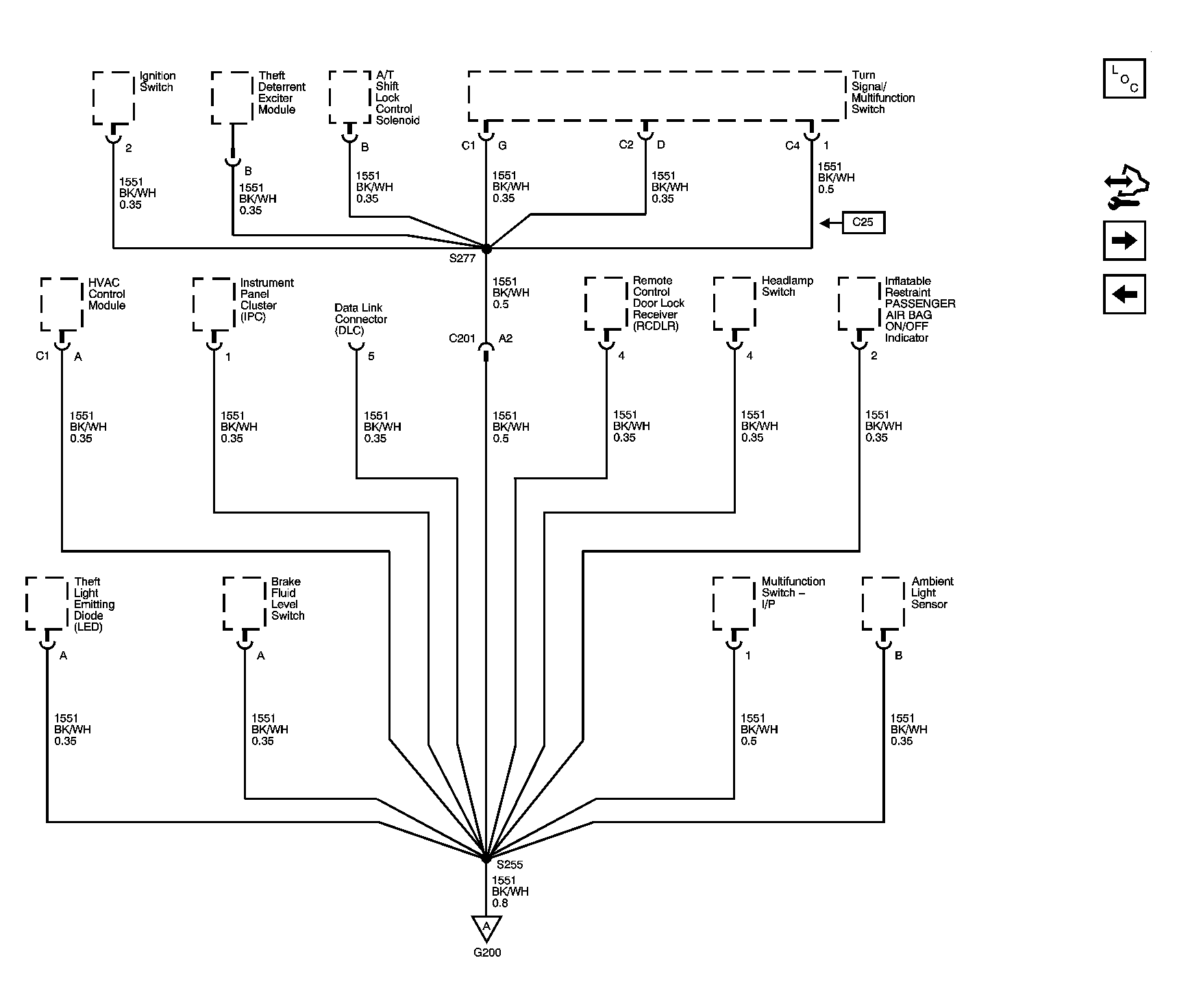

Fig 4: G200 Schematic - 2 of 2

GM1486089

Courtesy of GENERAL MOTORS CORP.

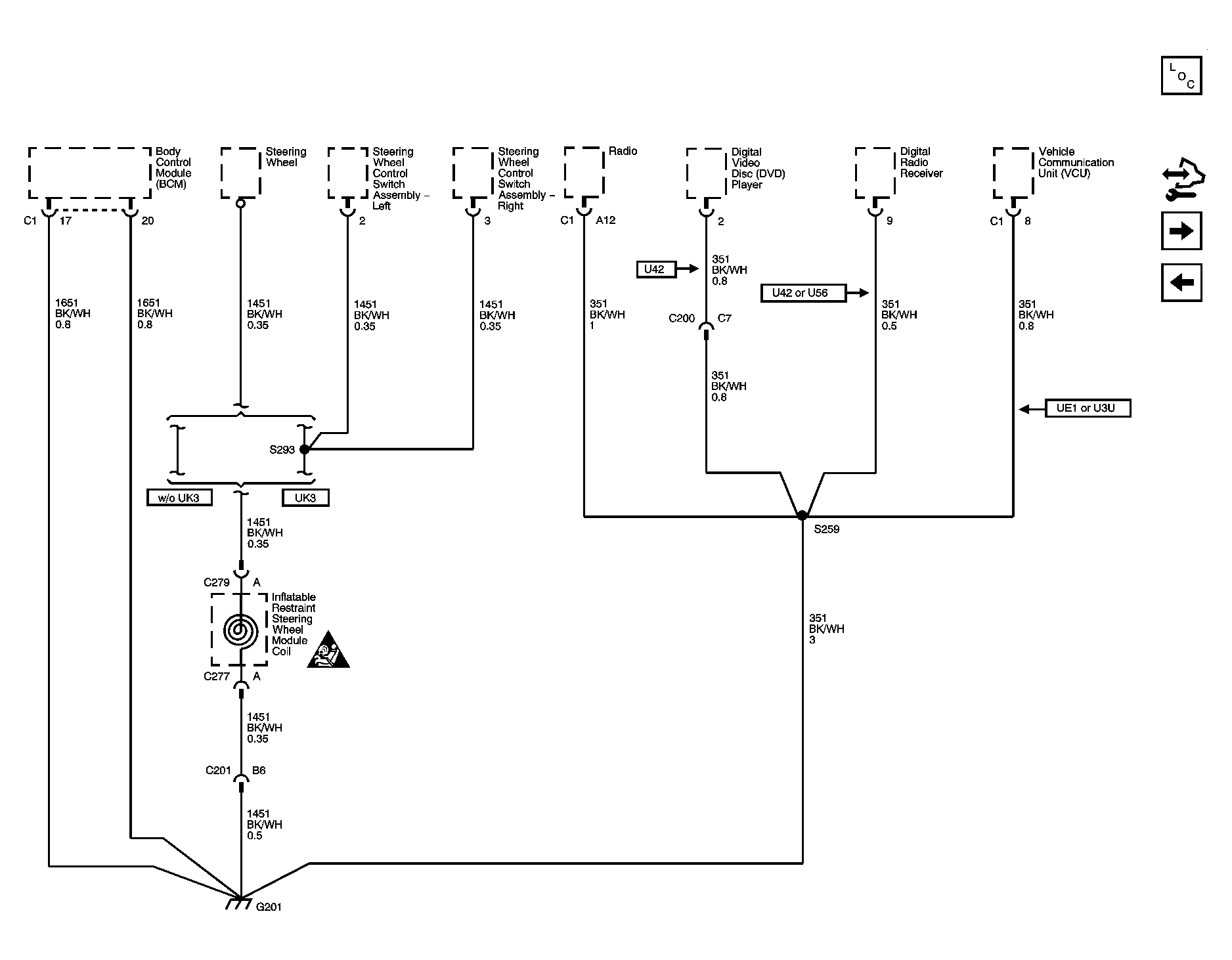

Fig 5: G201 Schematic

GM1486091

Courtesy of GENERAL MOTORS CORP.

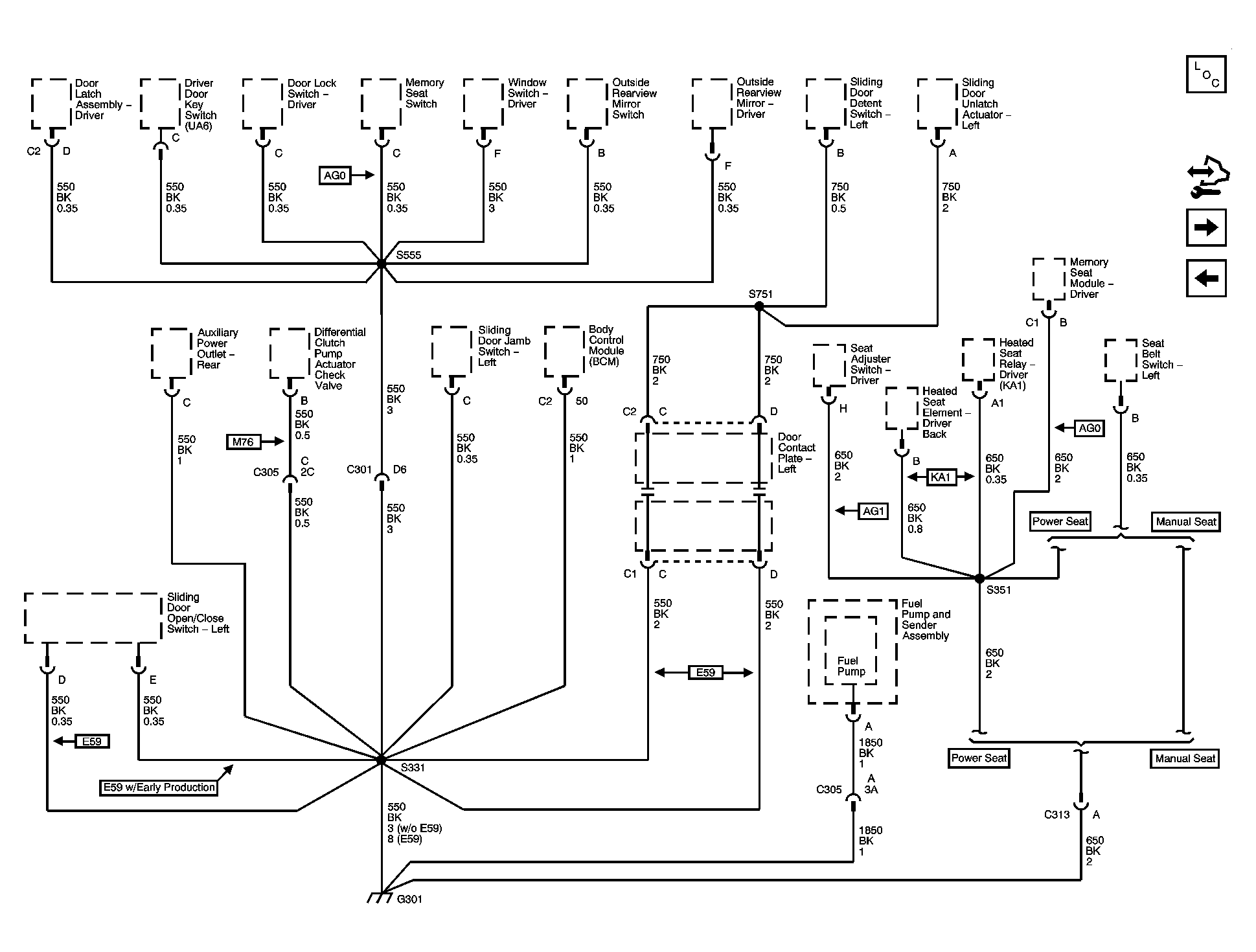

Fig 6: G301 Schematic

GM1486093

Courtesy of GENERAL MOTORS CORP.

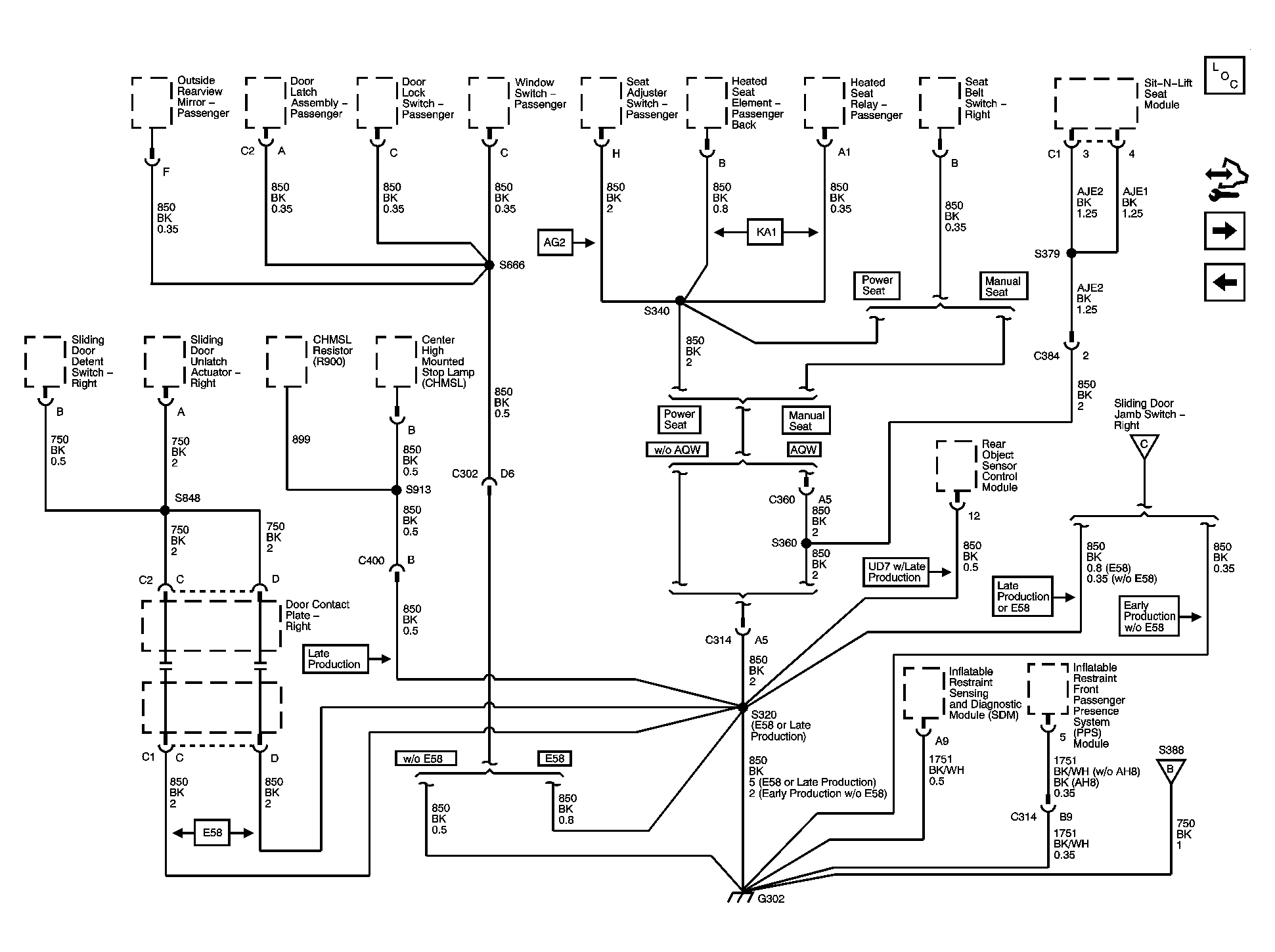

Fig 7: G302 Schematic - 1 of 2

GM1486094

Courtesy of GENERAL MOTORS CORP.

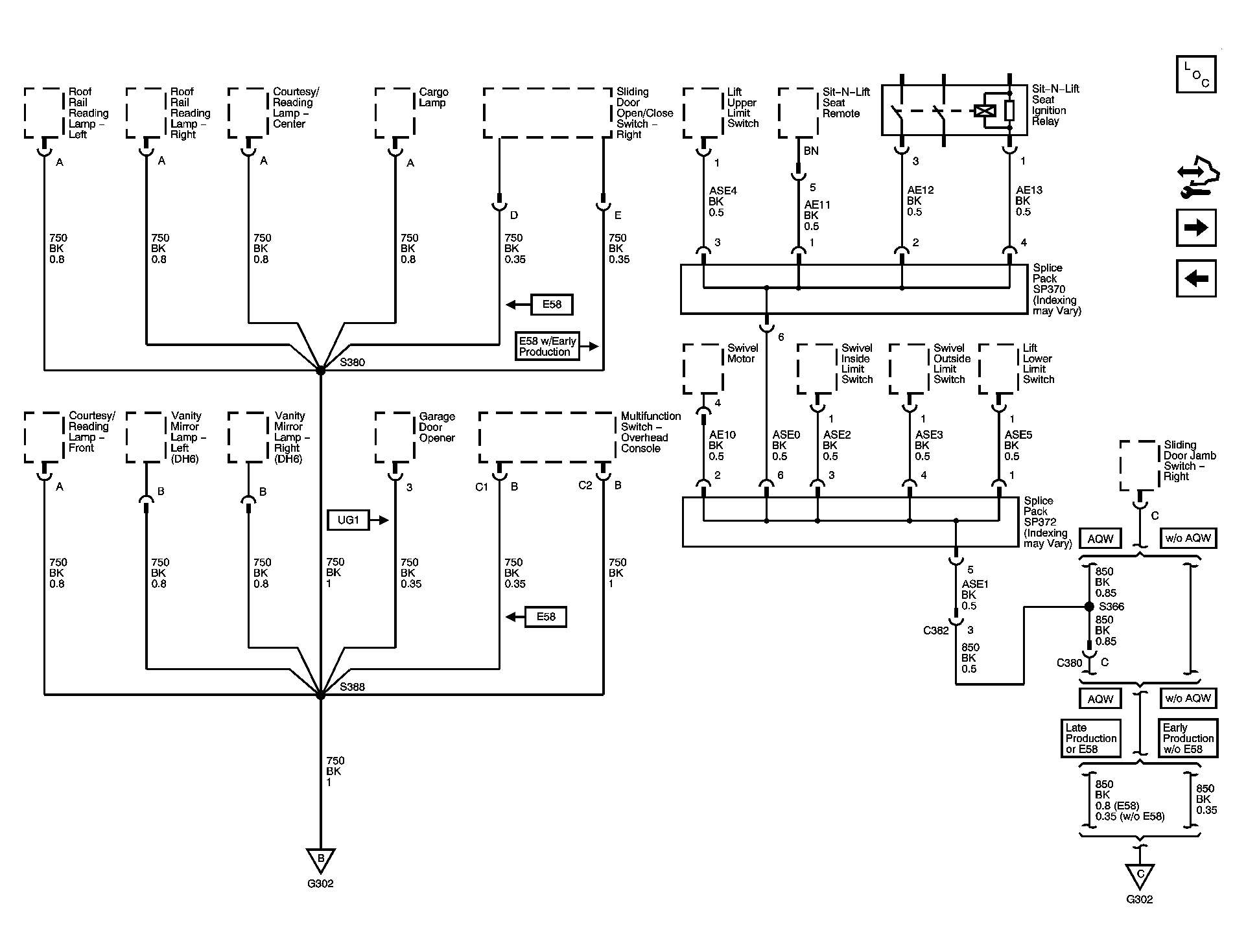

Fig 8: G302 Schematic - 2 of 2

GM1486095

Courtesy of GENERAL MOTORS CORP.

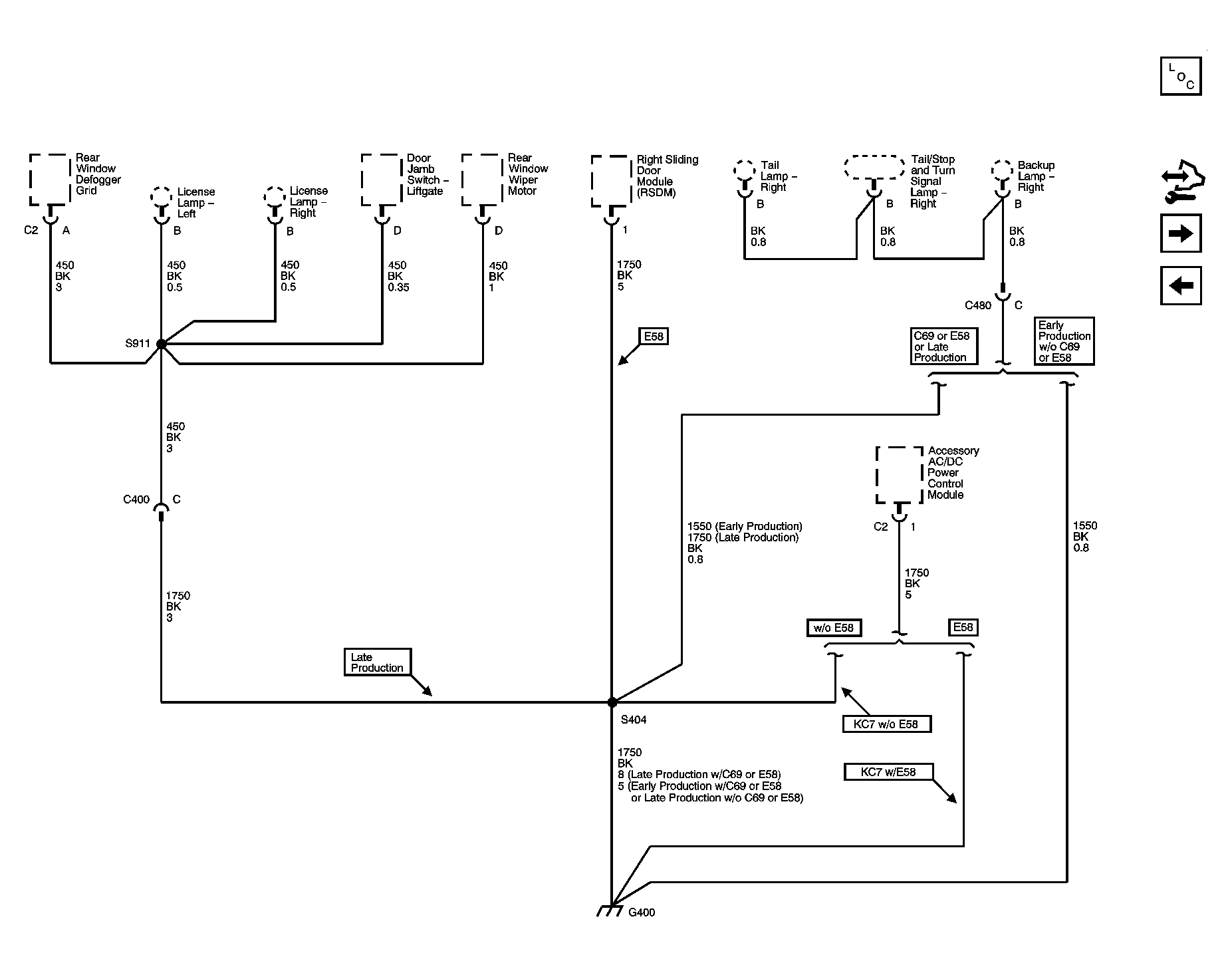

Fig 9: G400 Schematic

GM1486096

Courtesy of GENERAL MOTORS CORP.

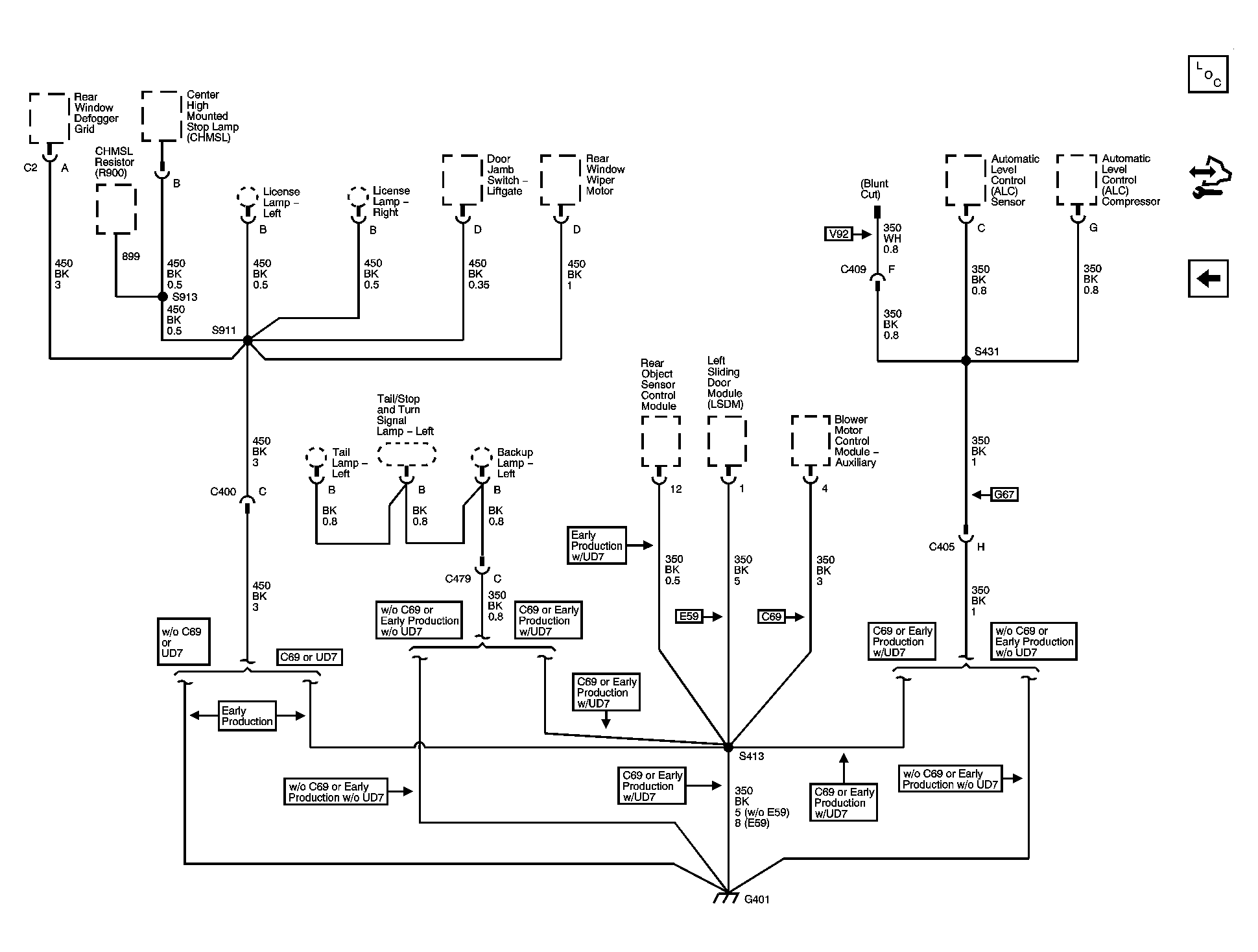

Fig 10: G401 Schematic

GM1527397

Courtesy of GENERAL MOTORS CORP.
