Installation Procedure

WARNING: This page is about a different car, the 2005 Chevrolet Malibu. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the license lamp bulb to the socket, if required.

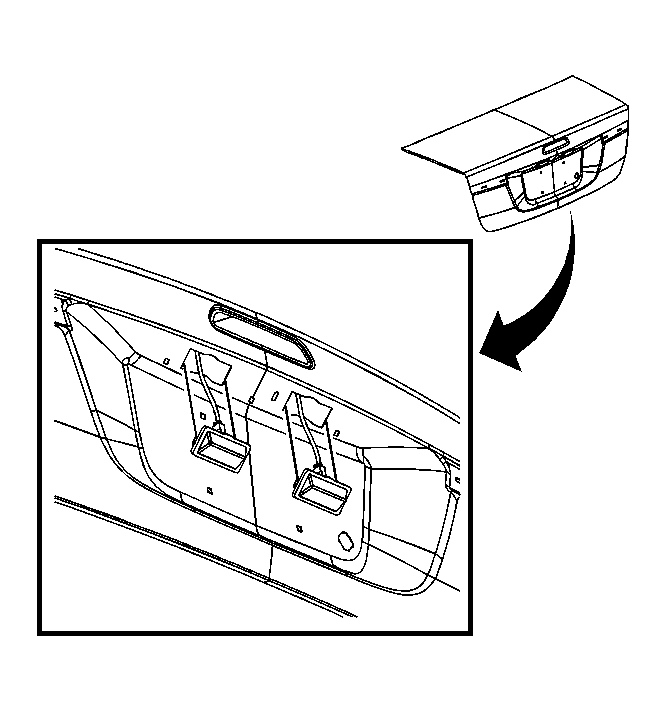

    2. Fig 1: Unseating Lamp From Rear Compartment Lid
    GM1215805Courtesy of GENERAL MOTORS CORP.
  2. Install the license lamp socket to the license lamp by rotating the socket clockwise.
  3. Connect the electrical connector.

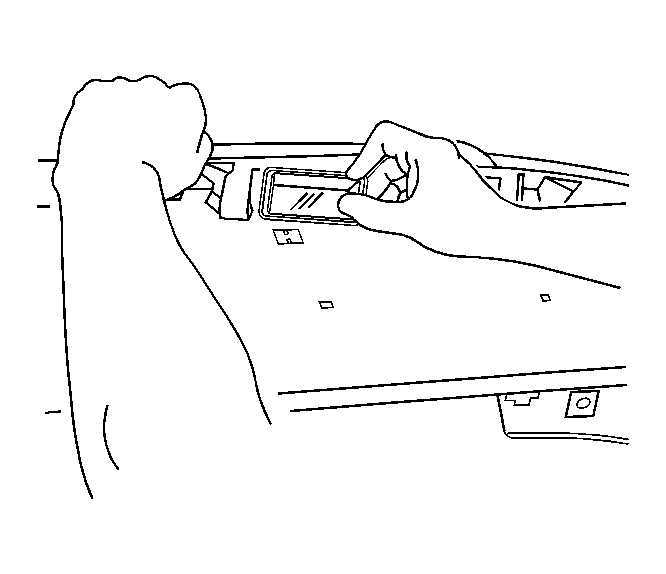

    4. Fig 2: View Of License Lamp
    GM1326367Courtesy of GENERAL MOTORS CORP.
  4. Carefully lift the rear compartment lid applique away from the rear compartment lid. Allow clearance for installation of the license lamp.
  5. Install the license lamp into the rear compartment lid outer panel.
  6. Close the rear compartment lid.
  7. Install the 3 center screws to the rear compartment lid applique. Refer to Compartment Lid Applique Replacement - Rear .
