Removal Procedure

WARNING: This page is about a different car, the 2005 Chevrolet Malibu. However, it is still accessible from the selected car via links, so may be relevant.
  1. Open the hood.
  2. Remove the upper fascia support.
  3. Mark the hood latch location to the support bracket with a grease pencil.

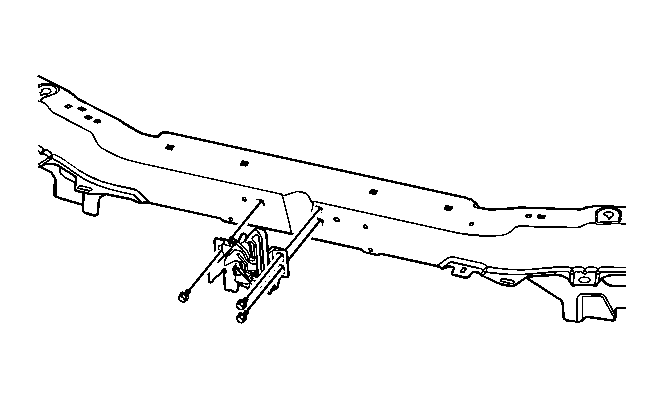

    4. Fig 1: Removing Hood Latch Bolts
    GM1315802Courtesy of GENERAL MOTORS CORP.
  4. Remove the hood latch bolts.
    5. Fig 2: View Of Hood Release Cable
    GM863872Courtesy of GENERAL MOTORS CORP.
  5. Disconnect the release cable from the hood latch by squeezing the cable retainer.
  6. Remove the hood latch from the vehicle.
