Installation Procedure

WARNING: This page is about a different car, the 2005 Chevrolet Malibu. However, it is still accessible from the selected car via links, so may be relevant.

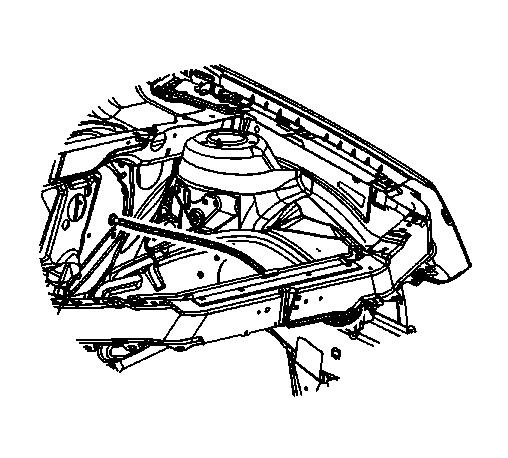

    Fig 1: Installing Wire
    GM1315801Courtesy of GENERAL MOTORS CORP.
  1. Tie the wire or string to the hood release cable.
  2. Install the hood primary latch release cable through the hole in the instrument panel.
  3. Install the hood release cable through the instrument panel using a small flat-bladed tool until the grommet is fully seated.
  4. Remove the wire or string from the hood release cable.
  5. Install the hood latch release cable ball to the latch.
    6. NOTE: Refer to Fastener Notice in Cautions and Notices.
  6. Install the hood latch fasteners.

    Tighten:  Tighten the fasteners to 10 N.m (89 lb in)

  7. Install the upper fascia support.
  8. Install the knee bolster to the instrument panel.
  9. Install the hood latch release cable handle to the instrument panel.

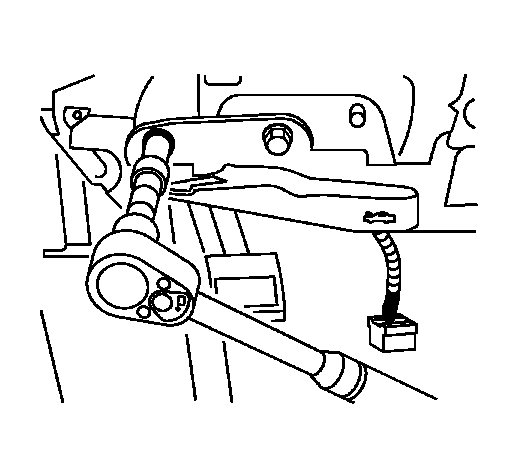

    10. Fig 2: Installing Hood Latch Release Cable Handle Bolts
    GM1343785Courtesy of GENERAL MOTORS CORP.
  10. Install the side trim panel.
  11. Install the hush panel to the instrument panel.
