Installation Procedure

WARNING: This page is about a different car, the 2005 Chevrolet Malibu. However, it is still accessible from the selected car via links, so may be relevant.

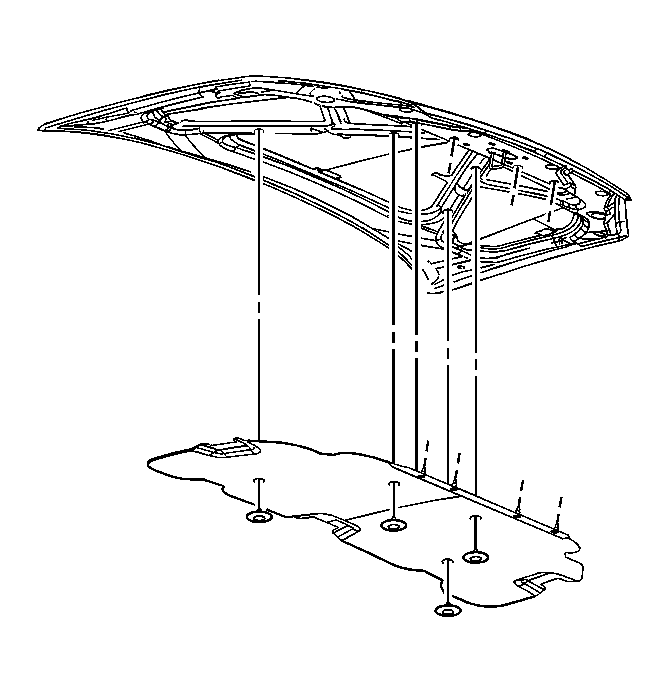

    Fig 1: Installing Hood Insulator Push-In Retainers In Hood
    GM1315799Courtesy of GENERAL MOTORS CORP.
  1. Position the hood insulator under the tabs that are located at the front and center of the hood.
  2. Install the hood insulator push-in retainers until fully seated.
  3. Close the hood.
