Installation Procedure

WARNING: This page is about a different car, the 2005 Chevrolet Malibu. However, it is still accessible from the selected car via links, so may be relevant.

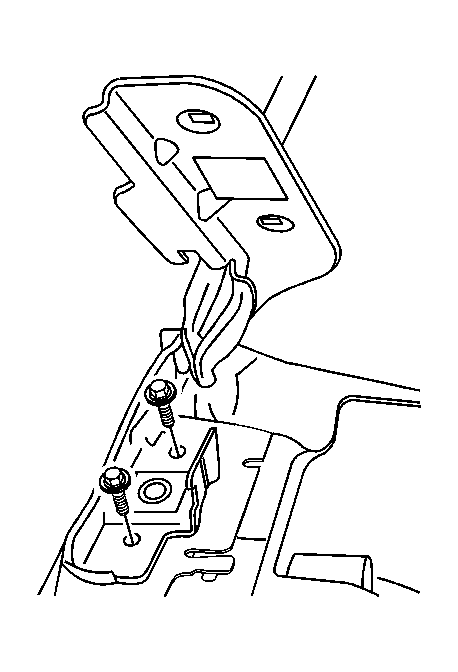

    Fig 1: Installing Hinge Bolts And Hinge
    GM1317342Courtesy of GENERAL MOTORS CORP.
  1. Position the hood hinge to the alignment marks on the vehicle.
    2. NOTE: Refer to Fastener Notice in Cautions and Notices.
  2. Install the hood hinge to body bolts.

    Tighten:  Tighten the hood hinge to body bolts to 10 N.m (89 lb in).

  3. Install the hood. Refer to Hood Replacement .
  4. Install the upper fender bolts.

    Tighten:  Tighten the hood hinge to body bolts to 10 N.m (89 lb in).

  5. Close the hood.
