Installation Procedure

WARNING: This page is about a different car, the 2005 Chevrolet Malibu. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the seat into the vehicle.

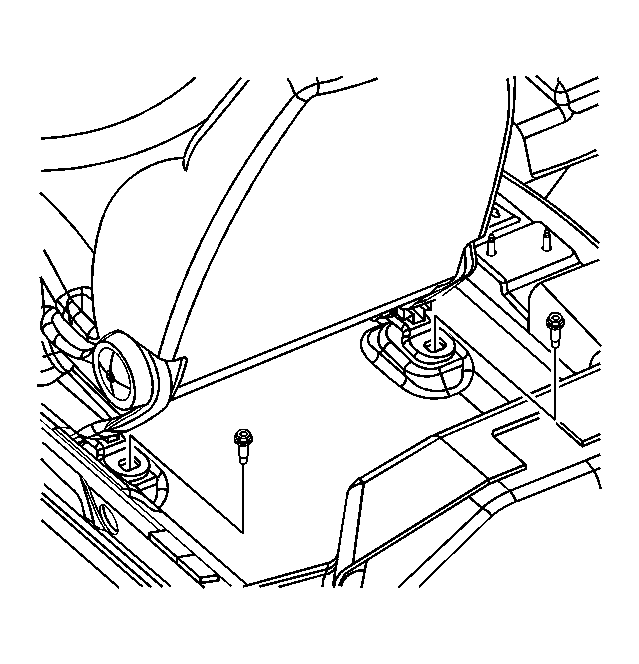

    2. Fig 1: View Of Front Bucket Seat Adjuster Bolts
    GM873511Courtesy of GENERAL MOTORS CORP.
  2. Connect the electrical wire harness and install the push-in fastener beneath the seat.
    3. NOTE: Refer to Fastener Notice in Cautions and Notices.
  3. Install the front seat mounting fasteners.

    Tighten:  Tighten the fasteners to 45 N.m (33 lb ft).

    4. IMPORTANT: Verify that the shoulder belt is not twisted.
  4. Install the seat belt anchor bolt to the front seat assembly. Refer to Seat Belt Retractor Pretensioner Replacement - Front .
