Installation Procedure

WARNING: This page is about a different car, the 2005 Chevrolet Malibu. However, it is still accessible from the selected car via links, so may be relevant.
    Fig 1: View Of Seat Back Panel
    GM1506502Courtesy of GENERAL MOTORS CORP.
  1. Install the seat back panel to the seat back frame.
  2. Engage the lower hooks to the seat frame.
  3. Push at the top of the seat back panel to install the push-in retainers to the frame.
  4. Install the lumbar knob, if equipped. Refer to Lumbar Support Knob Replacement .

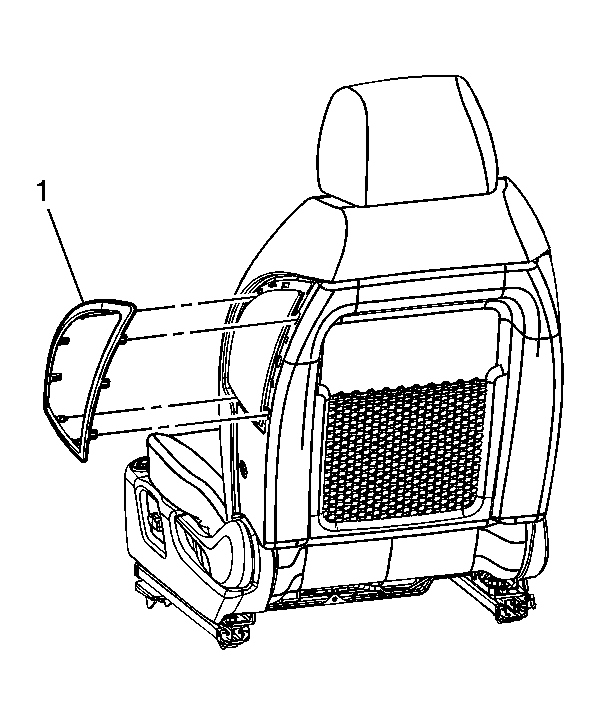

    5. Fig 2: View Of Inflatable Restraint Side Impact Module Trim
    GM1506507Courtesy of GENERAL MOTORS CORP.
  5. Install the inflatable restraint side impact module trim (1).
