Installation Procedure

WARNING: This page is about a different car, the 2005 Chevrolet Malibu. However, it is still accessible from the selected car via links, so may be relevant.

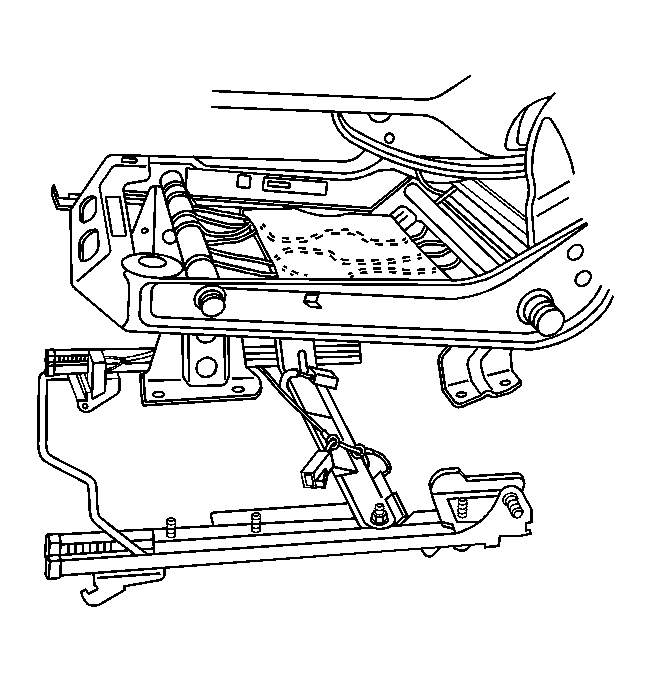

    Fig 1: Removing Seat Adjuster Fasteners
    GM1284495Courtesy of GENERAL MOTORS CORP.
    NOTE: Refer to Fastener Notice in Cautions and Notices.
  1. Install the seat adjuster to the seat frame and secure with the adjuster fasteners.

    Tighten:  Tighten the fasteners to 30 N.m (22 lb ft).

  2. Install the cushion cover and the pad to the front seat. Refer to Seat Cushion Cover and Pad Replacement - Front .
  3. Install the front seat to the vehicle. Refer to Seat Replacement - Front Bucket .
