Installation Procedure

WARNING: This page is about a different car, the 2005 Chevrolet Malibu. However, it is still accessible from the selected car via links, so may be relevant.

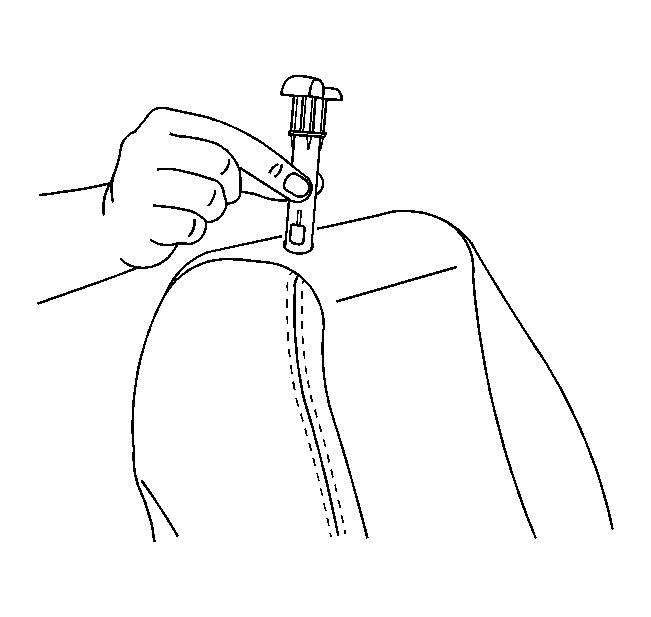

    Fig 1: Pushing Head Restraint Guide Into Seat Back Frame
    GM1283536Courtesy of GENERAL MOTORS CORP.
  1. Push the head restraint guide into the seat back frame.
  2. Install the seat back panel. Refer to Seat Back Panel Replacement - Front .
  3. Install the head restraint assembly. Refer to Head Restraint Replacement - Front Seat .
