Installation Procedure

WARNING: This page is about a different car, the 2005 Chevrolet Malibu. However, it is still accessible from the selected car via links, so may be relevant.
    IMPORTANT: The top of the liftgate strut is marked with the word TOP and an up-arrow.

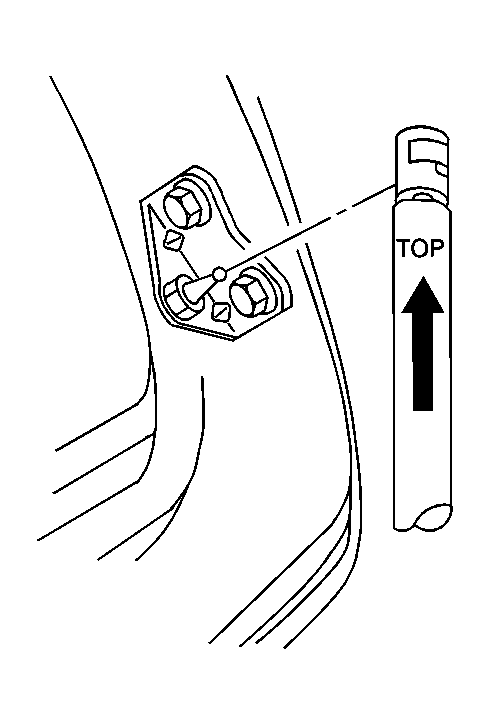

    Fig 1: View Of Top Of Strut
    GM313605Courtesy of GENERAL MOTORS CORP.
  1. Align the top of the strut with the ball stud on the liftgate.
  2. Press on the top of the strut to install onto the ball stud.
    3. Fig 2: View Of Bottom Of Strut For Ball Stud On Body
    GM313603Courtesy of GENERAL MOTORS CORP.
  3. Align the bottom of the strut to the ball stud on the body.
  4. Press on the bottom of the strut to install onto the ball stud.
  5. Remove the support, and close the liftgate.
