Installation Procedure

WARNING: This page is about a different car, the 2005 Chevrolet Malibu. However, it is still accessible from the selected car via links, so may be relevant.

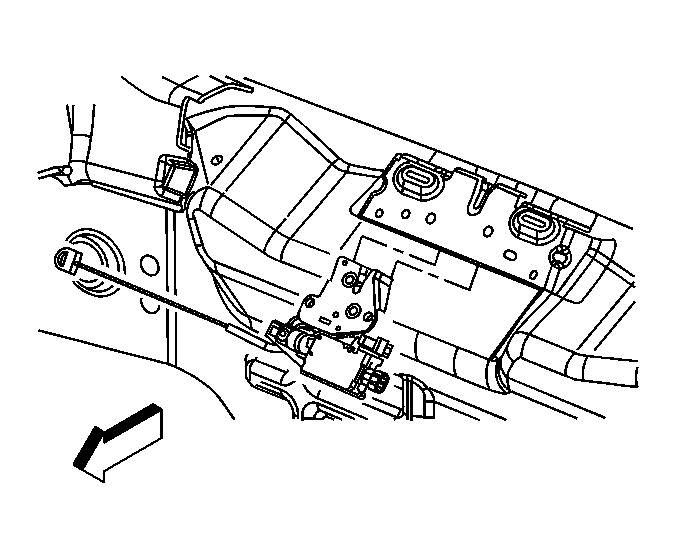

    Fig 1: Installing Latch Cable In Liftgate Latch
    GM1315493Courtesy of GENERAL MOTORS CORP.
  1. Install the liftgate latch to the bracket.
  2. Engage latch cable retainer.
  3. Connect the electrical connector to the liftgate latch.
    4. NOTE: Refer to Fastener Notice in Cautions and Notices.
  4. Install the liftgate latch retainer bolts.

    Tighten:  Tighten the bolts to 10 N.m (89 lb in).

  5. Install the rear compartment sill panel.
  6. Close the liftgate.
