Installation Procedure

WARNING: This page is about a different car, the 2005 Chevrolet Malibu. However, it is still accessible from the selected car via links, so may be relevant.

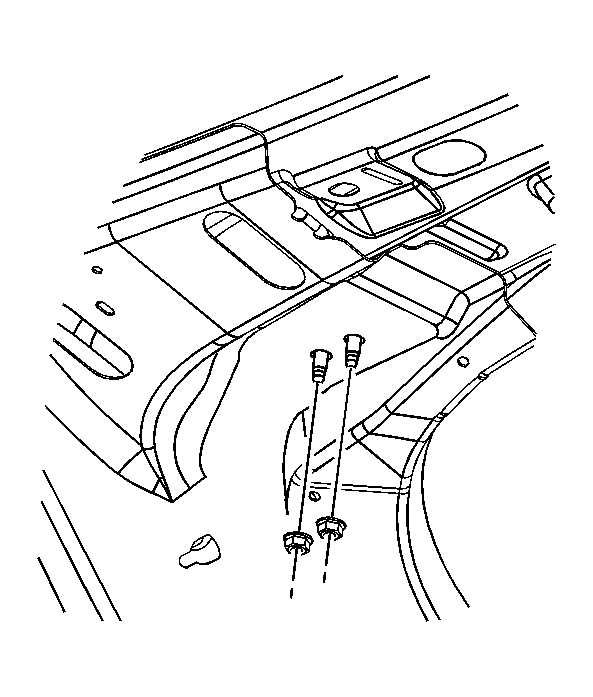

    Fig 1: Installing Hinge Retaining Nuts
    GM1315512Courtesy of GENERAL MOTORS CORP.
  1. Align the hinge with the marks made on the vehicle body.
    2. NOTE: Refer to Fastener Notice in Cautions and Notices.
  2. Install the hinge retaining nuts.

    Tighten:  Tighten the liftgate hinge stud nuts to 25 N.m (18 lb ft).

  3. Install the headliner. Refer to Headliner Replacement (Sedan) or Headliner Replacement (Extended Sedan) in Interior Trim.
  4. Install the liftgate. Refer to Liftgate Replacement .
