Installation Procedure

WARNING: This page is about a different car, the 2005 Chevrolet Malibu. However, it is still accessible from the selected car via links, so may be relevant.
  1. If installing a new headliner, transfer the dome lamp and the console to the new headliner.

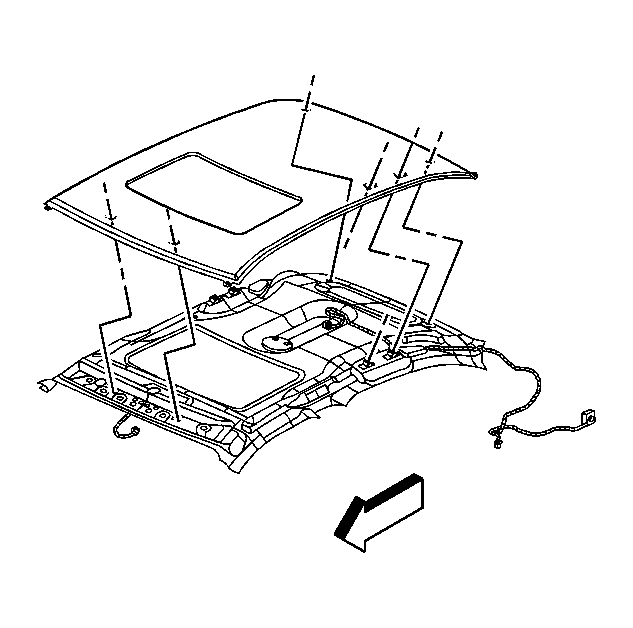

    2. Fig 1: View Of Headliner From Vehicle Through Rear Passenger Door
    GM1179381Courtesy of GENERAL MOTORS CORP.
  2. Install the headliner to the vehicle through the liftgate opening.
  3. Connect the rearview mirror electrical connector.
  4. Connect the sunroof electrical connector.
  5. Install the sunroof lace.

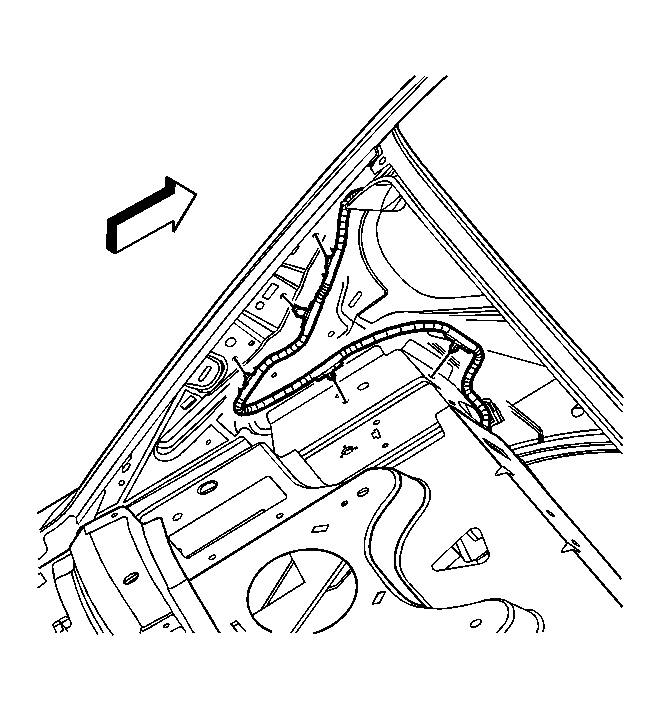

    6. Fig 2: View Of Headliner Wire Harness From Rear Quarter Panel
    GM1179368Courtesy of GENERAL MOTORS CORP.
  6. Install the headliner wiring to the rear quarter panel.

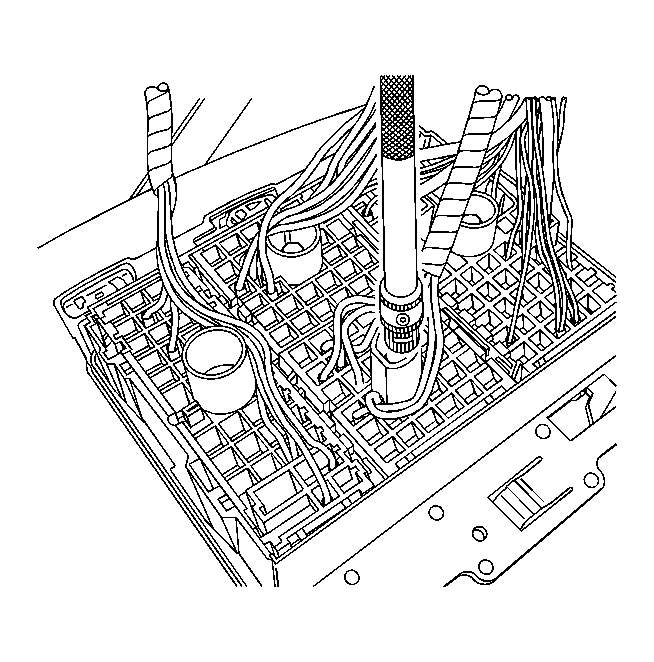

    7. Fig 3: View Of Headliner Wiring Harness From Rear Junction Block
    GM1219150Courtesy of GENERAL MOTORS CORP.
  7. Install the headliner wiring harness to the rear body wiring junction block.

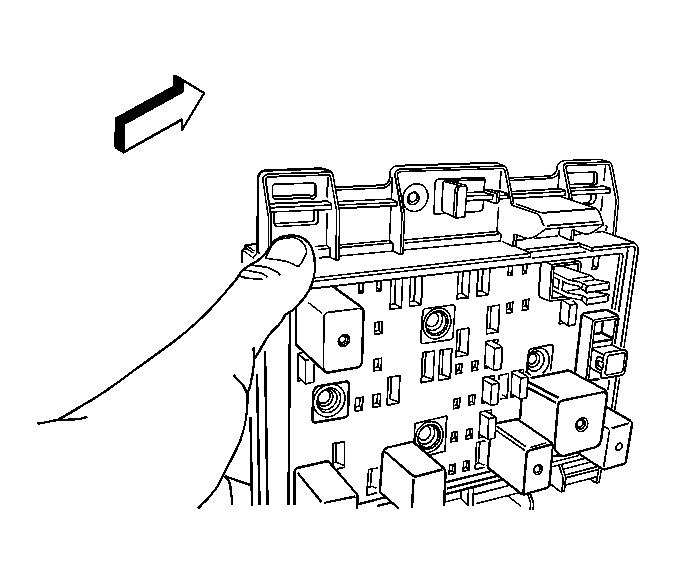

    8. Fig 4: View Of Fastener From Body Wiring Junction Block
    GM1219151Courtesy of GENERAL MOTORS CORP.
    NOTE: Refer to Fastener Notice in Cautions and Notices.
  8. Install the rear junction block to the vehicle and secure with the fastener.

    Tighten:  Tighten the fastener to 2.5 N.m (22 lb in).

  9. Place the front and the rear seats in an upright position.
  10. Install the rear fasteners to the headliner.
  11. Install the assist handles. Refer to Assist Handle Replacement  .
  12. Install the lower rear quarter trim panels. Refer to Trim Panel Replacement - Rear Quarter Lower (Extended Sedan)  .
  13. Install the upper panels to the rear quarter trim. Refer to Trim Panel Replacement - Rear Quarter Upper (Extended Sedan)  .
  14. Install the garnish moldings to the upper center pillar. Refer to Garnish Molding Replacement - Center Pillar Upper  .
  15. Install the sunshade supports. Refer to Sunshade Retainer Bezel Replacement  .
  16. Install the sunshades. Refer to Sunshade Replacement (Sedan)  or Sunshade Replacement (Extended Sedan Rear)  .
  17. Install the windshield garnish moldings. Refer to Garnish Molding Replacement - Windshield Pillar  .
  18. Enable the roof rail SIR system. Refer to SIR Disabling and Enabling Zone 8 in SIR.
