Installation Procedure

WARNING: This page is about a different car, the 2005 Chevrolet Malibu. However, it is still accessible from the selected car via links, so may be relevant.

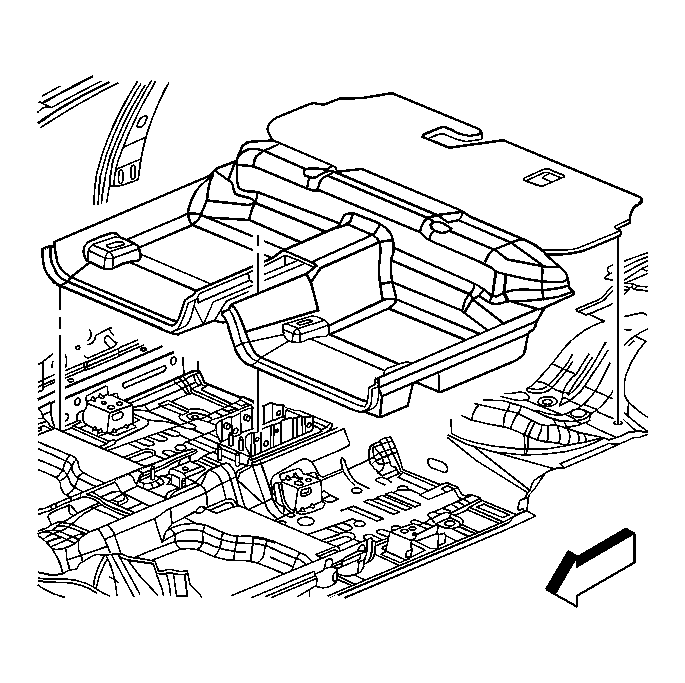

    Fig 1: View Of Rear Carpet
    GM1151381Courtesy of GENERAL MOTORS CORP.
  1. Install the rear carpet.
    2. NOTE: Refer to Fastener Notice in Cautions and Notices.
  2. Install the front seat bolts.

    Tighten:  Tighten the bolts to 45 N.m (33 lb ft).
