Removal Procedure

WARNING: This page is about a different car, the 2005 Chevrolet Malibu. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the door trim panel. Refer to Trim Panel Replacement - Side Front Door .

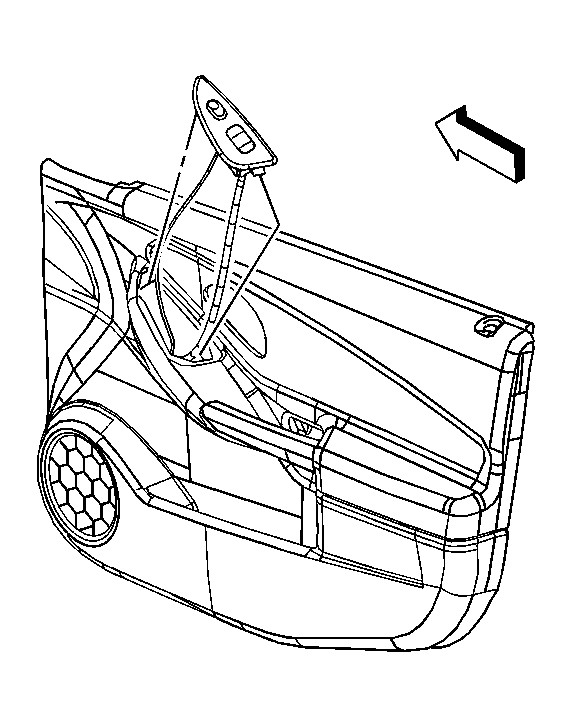

    2. Fig 1: Releasing Tabs And Pushing Door Switch Bezel From Door Trim
    GM1279480Courtesy of GENERAL MOTORS CORP.
  2. Release the tabs and push the door switch bezel from the door trim.
  3. Disconnect the electrical connectors from the door lock switch.
  4. Remove the switch from the bezel.
