Removal Procedure

WARNING: This page is about a different car, the 2005 Chevrolet Malibu. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the door trim panel. Refer to Trim Panel Replacement - Side Front Door .
  2. Release the tabs and push the door handle bezel from the door trim panel.
    3. Fig 1: Disconnecting Electrical Connector From Door Lock Switch
    GM1282007Courtesy of GENERAL MOTORS CORP.
  3. Disconnect the electrical connector from the door lock switch.

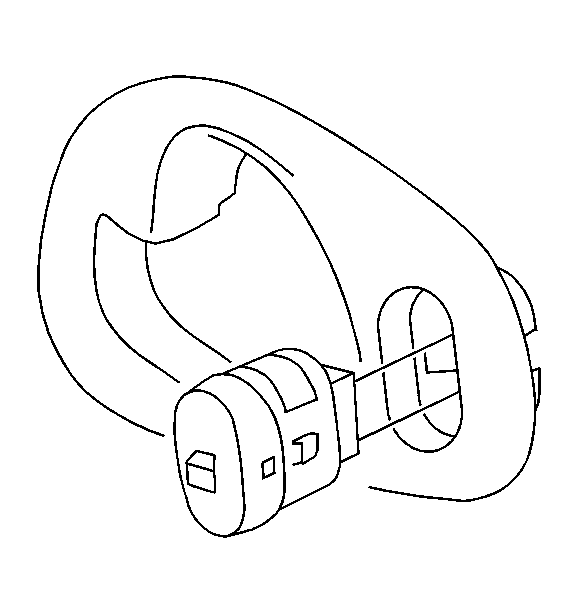

    4. Fig 2: Removing Switch From Bezel
    GM1282013Courtesy of GENERAL MOTORS CORP.
  4. Remove the switch from the bezel.
