Removal Procedure

WARNING: This page is about a different car, the 2005 Chevrolet Malibu. However, it is still accessible from the selected car via links, so may be relevant.
IMPORTANT: The locking rod is replaced as part of the door latch assembly.

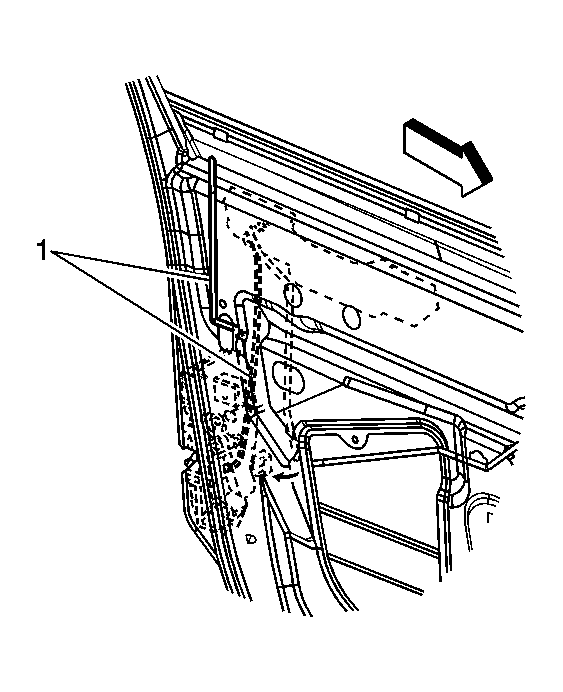

    Fig 1: Viewing Locking Rod
    GM1223884Courtesy of GENERAL MOTORS CORP.
  1. Remove the trim panel. Refer to Trim Panel Replacement - Side Front Door .
  2. Remove the front door water deflector. Refer to Water Deflector Replacement - Front Door .
  3. Remove the inside door handle. Refer to Door Handle Replacement - Front Inside .

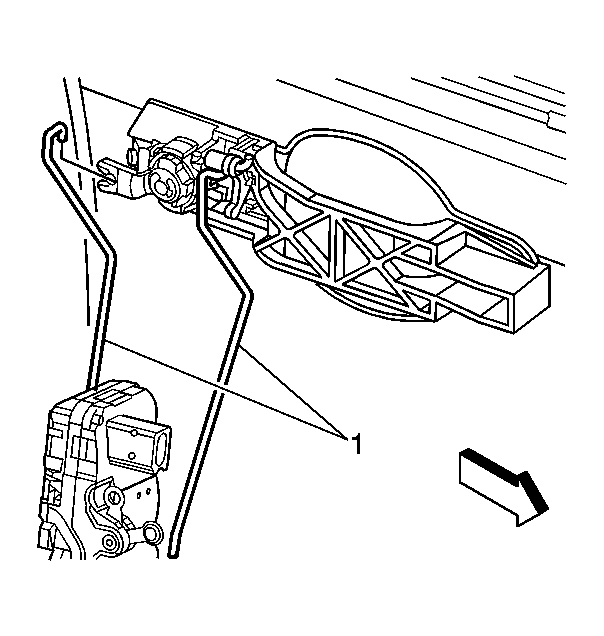

    4. Fig 2: Removing Locking Assembly
    GM1215428Courtesy of GENERAL MOTORS CORP.
  4. Remove the window run channel. Refer to Window Weatherstrip Run Channel Assembly Replacement - Front .
  5. Remove the locking assembly, including the attached locking rod (5).
