Installation Procedure

WARNING: This page is about a different variant/trim than selected.

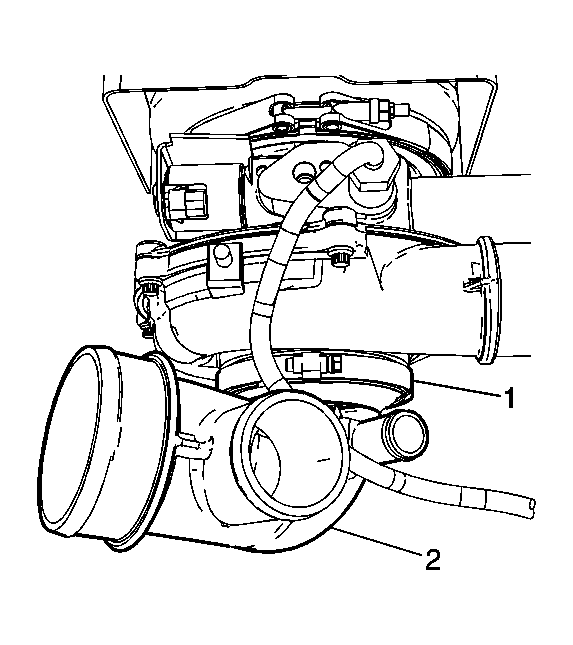

    Fig 1: View Of Turbocharger Air Intake Pipe
    GM1394901Courtesy of GENERAL MOTORS CORP.
  1. Clean the mating surfaces on the air intake pipe (2) and the turbocharger.
  2. Align the air intake pipe (2) to the turbocharger.
    NOTE: Refer to Fastener Notice in Cautions and Notices.
    3. IMPORTANT: The clamp for the air intake pipe uses reverse threads.
  3. Tighten the air intake pipe to turbocharger clamp (1).

    Tighten:  Tighten the clamp to 4.6 N.m (41 lb in).

  4. Install the engine wire harness clamp bolt.

    Tighten:  Tighten the bolt to 10 N.m (89 lb in).

  5. Connect the turbocharger electrical connector.
  6. Install the PCV hose/pipe. Refer to Crankcase Ventilation Hoses/Pipes Replacement in Engine Mechanical - 6.6L (LLY).
  7. Install the air cleaner outlet duct. Refer to Air Cleaner Outlet Duct Replacement .
  8. Install the intake manifold cover. Refer to Intake Manifold Cover Replacement in Engine Mechanical - 6.6L (LLY).
