DTC B2707: Gearshift Unlock Circuit Low: Notes

WARNING: This page is about a different car, the 2005 Saturn L300. However, it is still accessible from the selected car via links, so may be relevant.

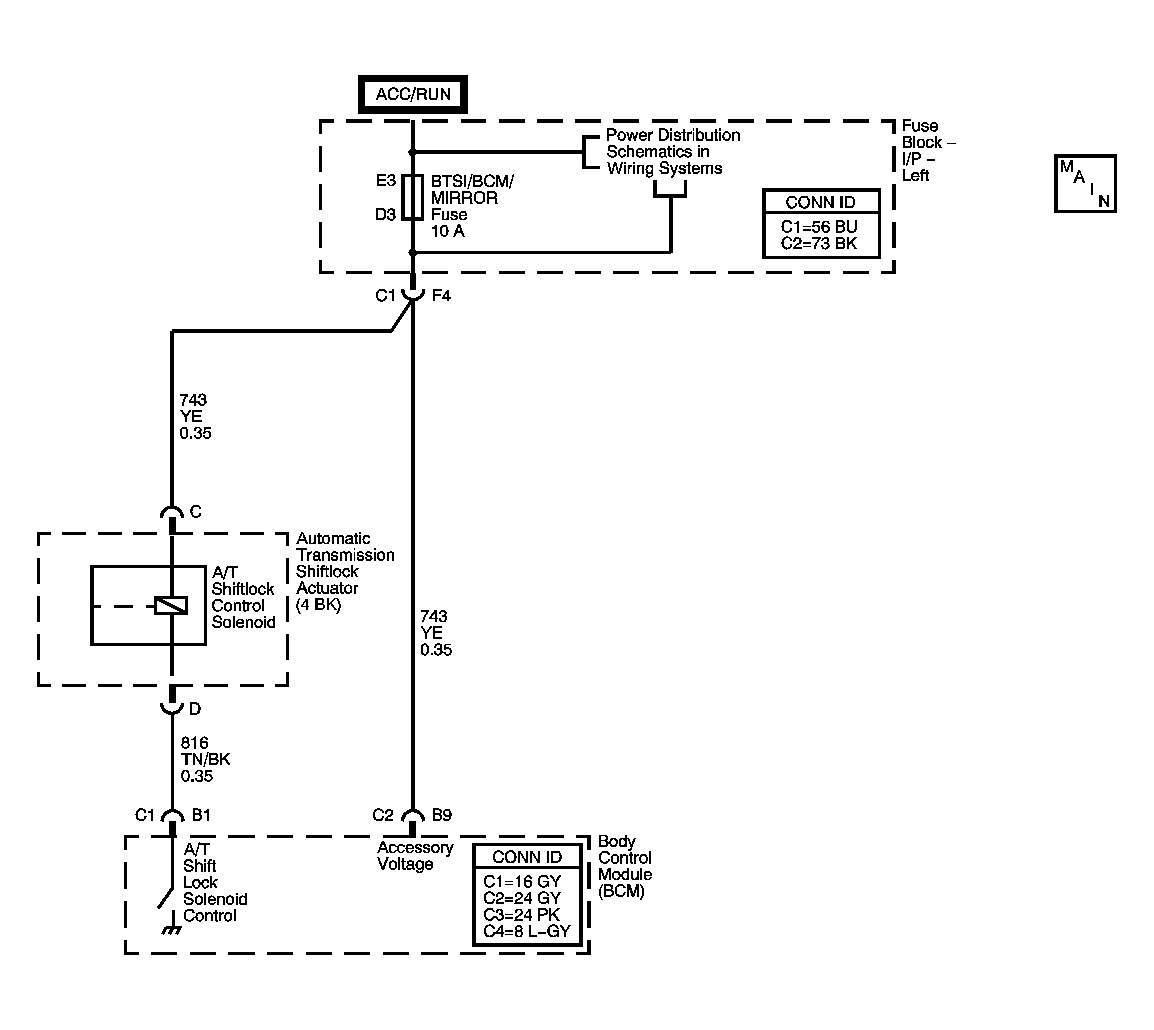

Fig 1: Automatic Transmission Shift Lock Control Solenoid Schematic
GM1473147Courtesy of GENERAL MOTORS CORP.
