Installation Procedure

WARNING: This page is about a different car, the 2005 Saturn L300. However, it is still accessible from the selected car via links, so may be relevant.

Install the insulators to the stabilizer bar.
Install the stabilizer bar clamps to the stabilizer bar.

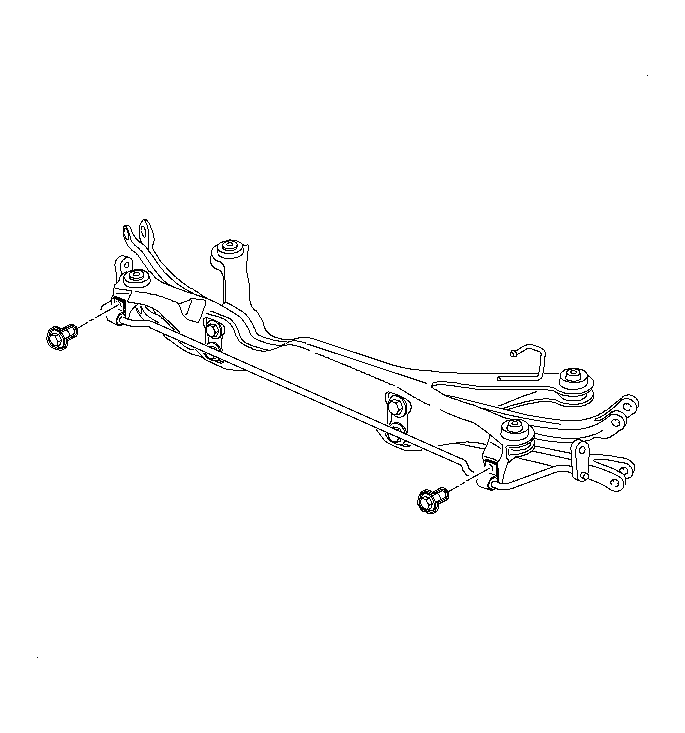

Fig 1: Removing/Installing Rear Stabilizer Bar

Courtesy of GENERAL MOTORS CORP.

Position the stabilizer bar to the rear support assembly.

NOTE: Refer to Fastener Notice in Cautions and Notices.

Install the stabilizer bar clamp to support assembly bolts.
Tighten: Tighten the bolts to 55 N.m (41 lb ft).

Fig 2: Locating Stabilizer Link-To-Trailing Arm Bolt

Courtesy of GENERAL MOTORS CORP.

Install both stabilizer link to trailing bar bolts.
Tighten: Tighten the bolts to 55 N.m (41 lb ft).

Fig 3: Removing/Installing Rear Heat Shield

Courtesy of GENERAL MOTORS CORP.

Install the fuel tank heat shield to the rear suspension support. Refer to Fuel Tank Heat Shield Replacement in Engine Exhaust.

Fig 4: Identifying Exhaust Muffler Hangers

Courtesy of GENERAL MOTORS CORP.

Install the exhaust muffler hangers.
Install the tire and wheels. Refer to Tire and Wheel Removal and Installation in Tires and Wheels.
Lower the vehicle.
