Installation Procedure

WARNING: This page is about a different car, the 2005 Saturn L300. However, it is still accessible from the selected car via links, so may be relevant.

If replacing the shock, mount the shock on the SA9155S .
Extend the shock to its travel limit.

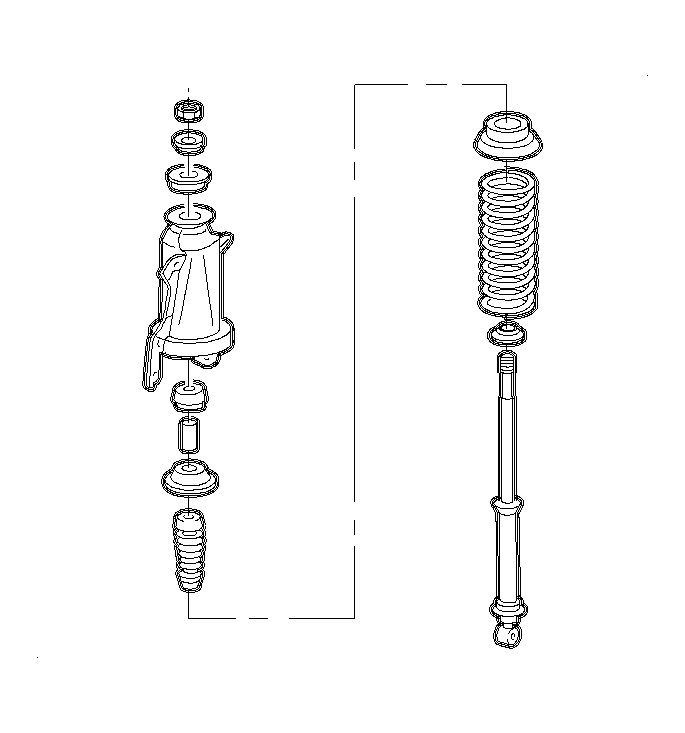

Fig 1: Exploded View Of Rear Shock Absorber Assembly

Courtesy of GENERAL MOTORS CORP.

IMPORTANT: Make sure that the spring is located in the correct position.

Install the shock components as noted during removal.
Compress the spring while guiding the shock absorber shaft through the upper mount. The spring is properly compressed when the upper washer and shaft nut can be installed.

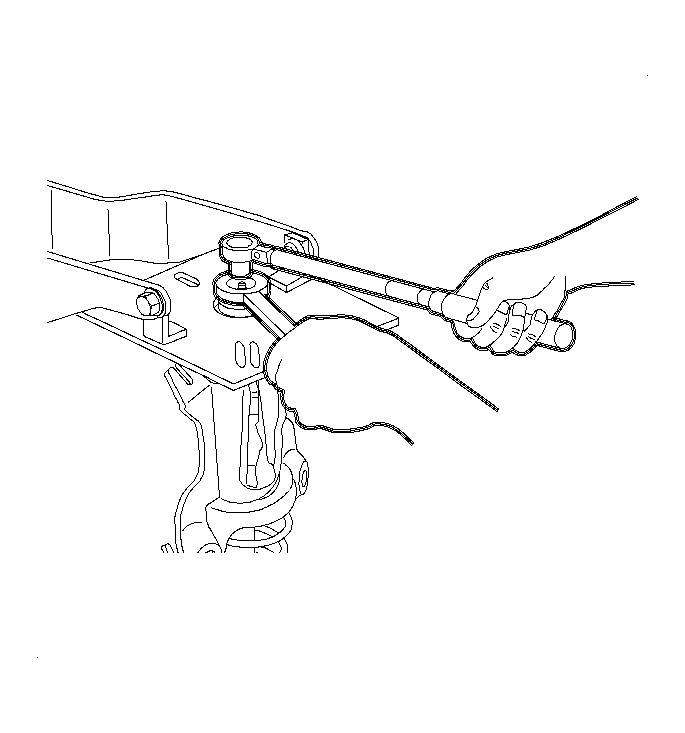

Fig 2: Removing/Installing Upper Shock Shaft Nut

Courtesy of GENERAL MOTORS CORP.

NOTE: Refer to Fastener Notice in Cautions and Notices.

Using a wrench and a socket, install the upper washer and shaft nut.
Tighten: Tighten the Upper shaft nut to 20 N.m (15 lb ft).

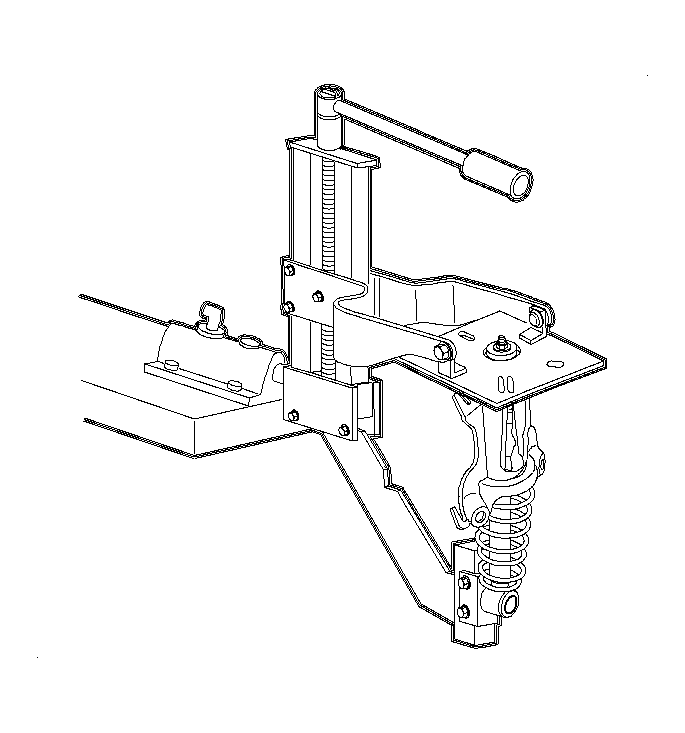

Fig 3: Compressing Shock Absorber Spring

Courtesy of GENERAL MOTORS CORP.

Release the spring tension.
Remove the shock carrier assembly from the SA9155S .
Install the shock carrier assembly. Refer to Shock Absorber Replacement .
