Installation Procedure

WARNING: This page is about a different car, the 2005 Saturn L300. However, it is still accessible from the selected car via links, so may be relevant.

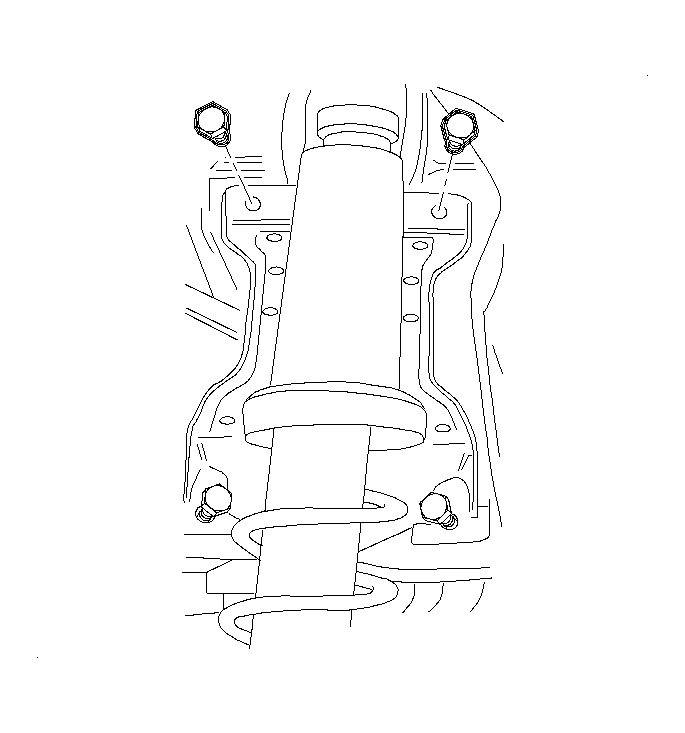

    Fig 1: Removing/Installing Rear Shock Absorber Upper Carrier Assembly-To-Body Bolts
    GM891983Courtesy of GENERAL MOTORS CORP.
  1. Align the shock carrier assembly lower holes/grooves on the lower carrier bolts.
    2. NOTE: Refer to Fastener Notice in Cautions and Notices.
  2. Install the upper carrier assembly bolts.

    Tighten:  Tighten all the carrier to body bolts to 55 N.m (40 lb ft).

    3. Fig 2: Removing/Installing Lower Shock Mounting Bolt
    GM891980Courtesy of GENERAL MOTORS CORP.
    IMPORTANT: A new bolt is required to ensure proper torque retention.
  3. Install a new lower shock mounting bolt.

    Tighten:  Tighten the bolt to 150 N.m (110 lb ft) plus an additional 30 to 45 degrees.

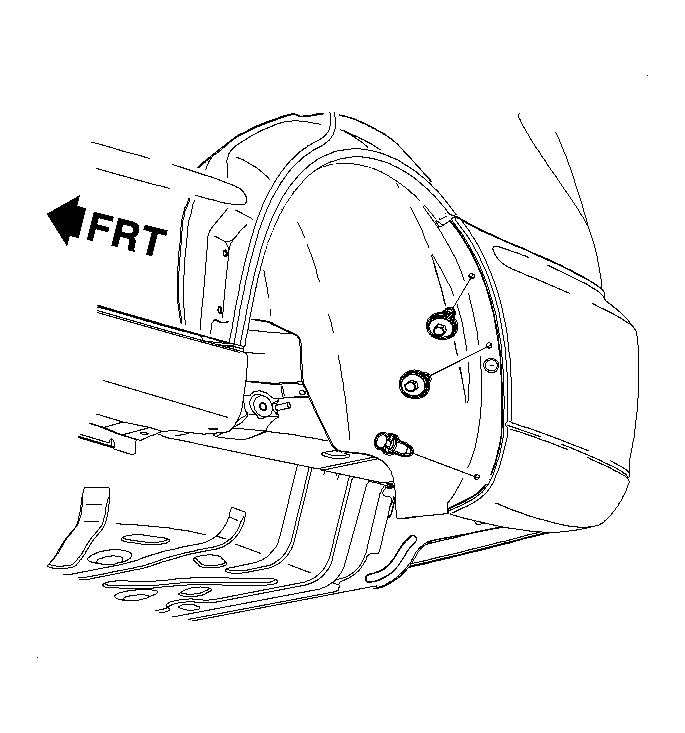

    4. Fig 3: Locating Rear Wheelhouse Panel Push-In Retainers
    GM886722Courtesy of GENERAL MOTORS CORP.
  4. Install the inner wheelhouse liner.
  5. Install the tire and wheel. Refer to Tire and Wheel Removal and Installation in Tires and Wheels.
  6. Lower the vehicle.
