Installation Procedure

WARNING: This page is about a different car, the 2005 Saturn L300. However, it is still accessible from the selected car via links, so may be relevant.

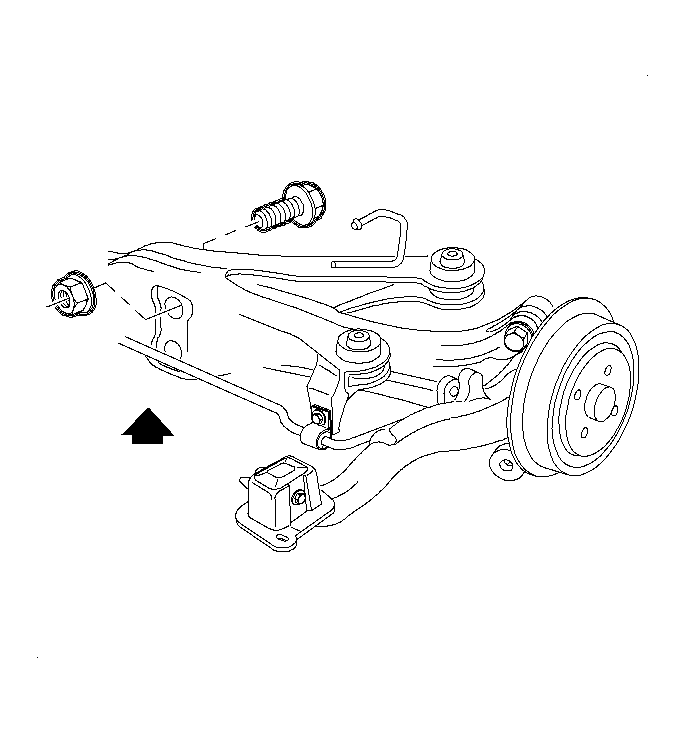

    Fig 1: Removing/Installing Rear Suspension Upper Control Arm-To-Support Assembly Bolt
    GM891523Courtesy of GENERAL MOTORS CORP.
  1. Install the rear suspension upper control arm to the support assembly.
    2. NOTE: Refer to Fastener Notice in Cautions and Notices.
  2. Install a new nut and bolt to the rear suspension upper control arm to support assembly.

    Tighten:  Tighten the nut and bolt to 90 N.m (66 lb ft) plus and additional 60 to 75 degrees.

  3. Install the rear support assembly. Refer to Support Replacement - Rear in Frame and Underbody.
