Installation Procedure

WARNING: This page is about a different car, the 2005 Saturn L300. However, it is still accessible from the selected car via links, so may be relevant.

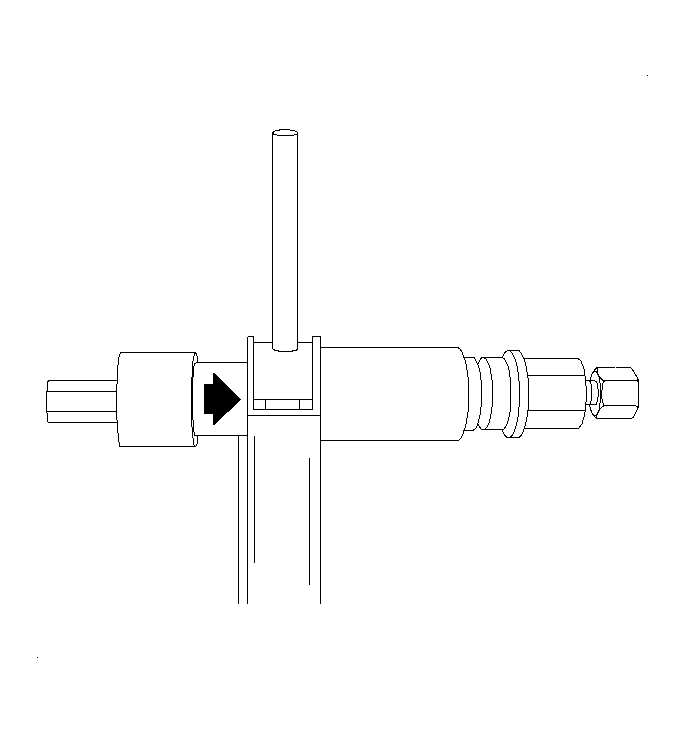

    Fig 1: Installing Rear Axle Control Arm Bushing
    GM891527Courtesy of GENERAL MOTORS CORP.
  1. Using the KM-906-B  , assemble the KM-906-70, KM-906-33, KM-906-35 and KM-906-34 and press the bushing into the control arm. See Special Tools .
  2. Remove the KM-906-70, KM-906-33, KM-906-35 and KM-906-34 from the control arm.
  3. Install the lower control arm. Refer to Rear Axle Lower Control Arm Replacement .
