Installation Procedure

WARNING: This page is about a different car, the 2005 Saturn L300. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the rear compartment lid switch to the deflector.

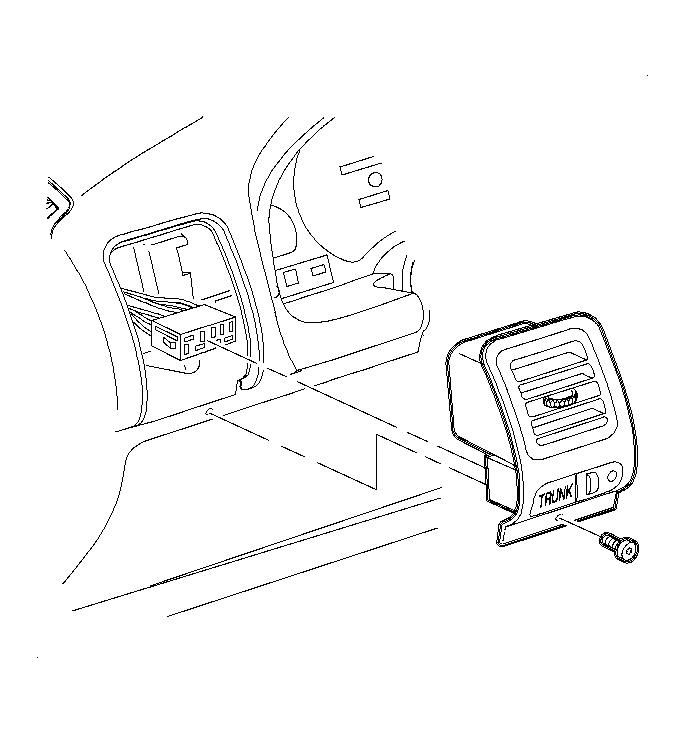

    2. Fig 1: Removing & Installing Deflector Assembly From Instrument Panel
    GM896836Courtesy of GENERAL MOTORS CORP.
  2. Connect the electrical connector.
  3. Install the deflector to the I/P.
    4. NOTE: Refer to Fastener Notice in Cautions and Notices.
  4. Install the retaining screw.

    Tighten:  Tighten the screw to 2 N.m (18 lb in)

  5. Install the knee bolster trim panel. Refer to Trim Panel Replacement - Knee Bolster .
