DTC B3268: Notes

WARNING: This page is about a different car, the 2005 Saturn L300. However, it is still accessible from the selected car via links, so may be relevant.

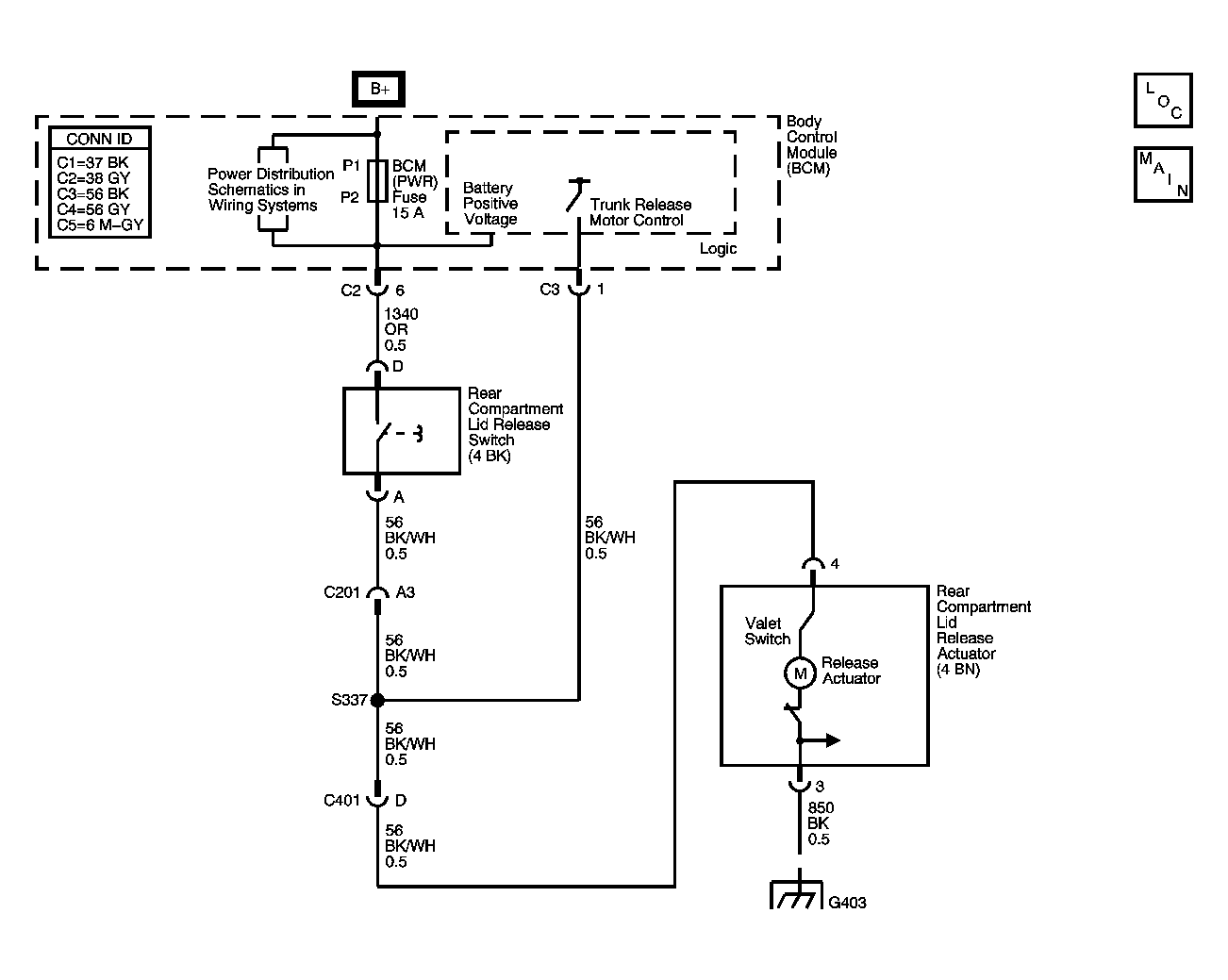

Fig 1: Rear Compartment Lid Release Solenoid Circuit
GM900009Courtesy of GENERAL MOTORS CORP.
