Removal Procedure

  1. Open the hood.
  2. Open the door.

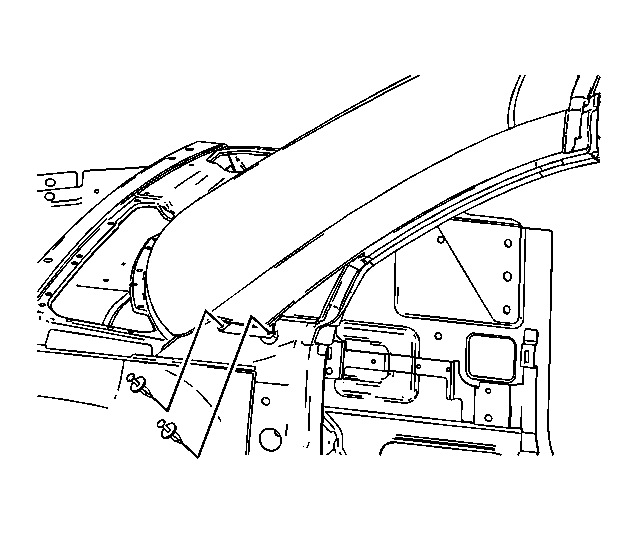

    3. Fig 1: Identifying Lower Windshield Frame Applique Retainers
    GM1253173Courtesy of GENERAL MOTORS CORP.
  3. Remove the lower windshield frame applique retainers using the J 36796  .
  4. Lower the retractable roof.

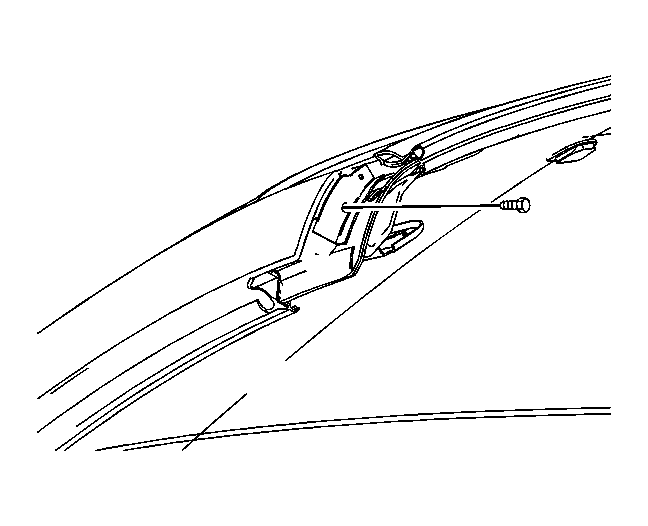

    5. Fig 2: Identifying Upper Windshield Frame Applique Retainer
    GM1253170Courtesy of GENERAL MOTORS CORP.
    IMPORTANT: When removing the upper windshield frame applique retainer, use caution to prevent the retainer from entering the water run channel in the header seal.
  5. Remove the upper windshield frame applique retainer.

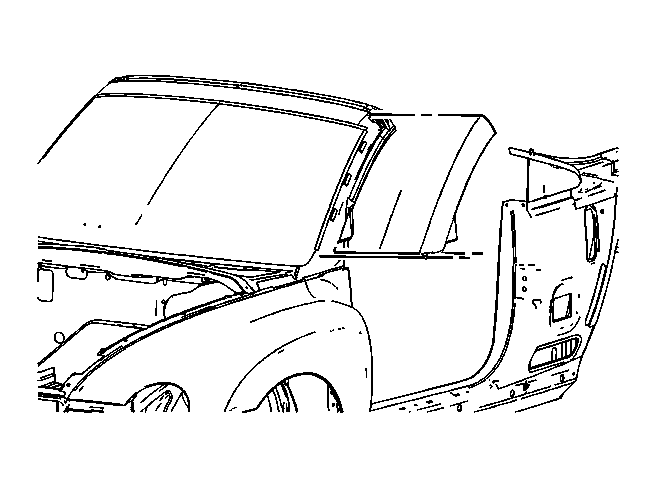

    6. Fig 3: View of Windshield Frame Applique
    GM1253176Courtesy of GENERAL MOTORS CORP.
  6. Pull outward to release the windshield frame applique from the Dual Loc patches.
