Power Distribution Schematics

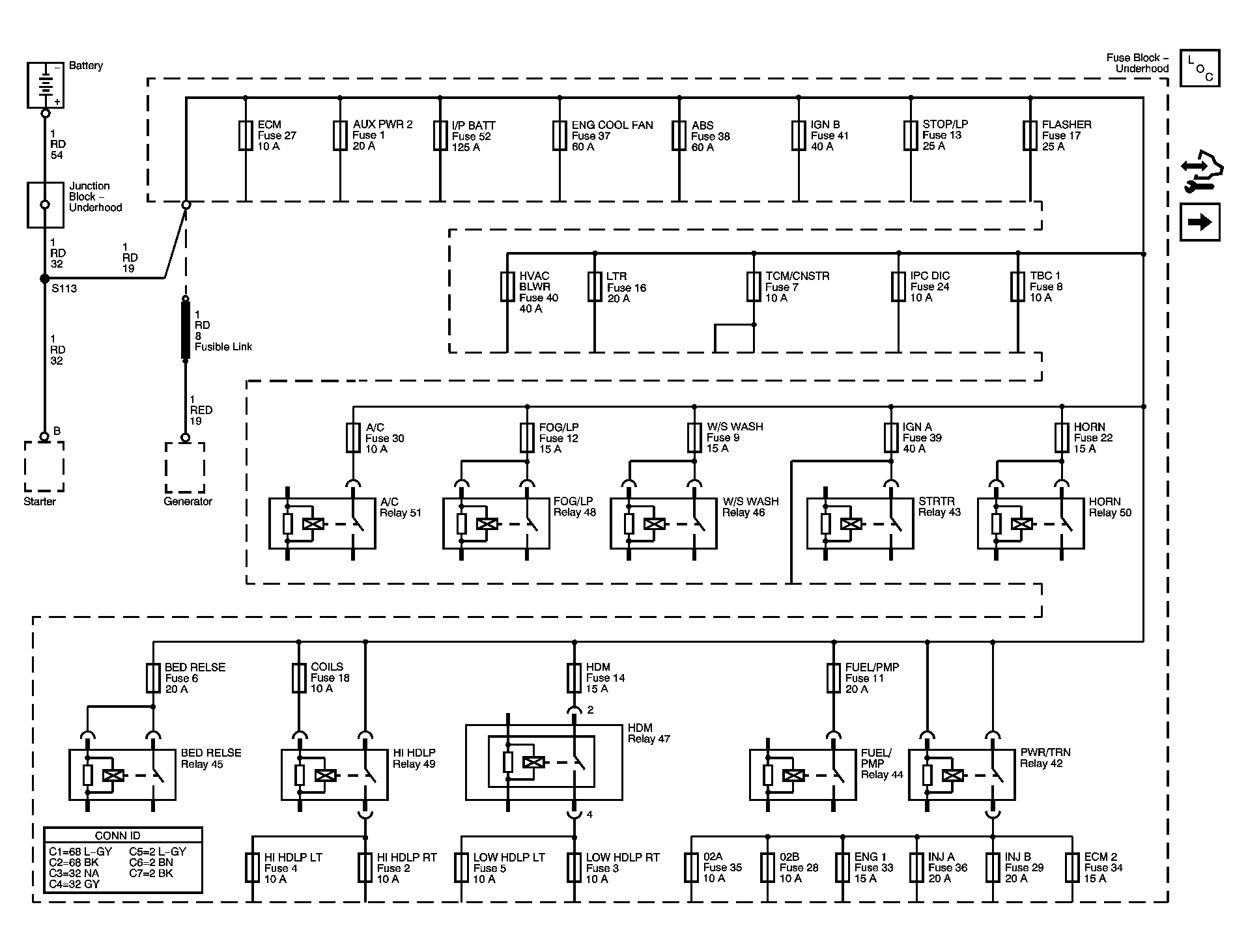

Fig 1: B+ BUS Schematic - Underhood Fuse Block

Courtesy of GENERAL MOTORS CORP.

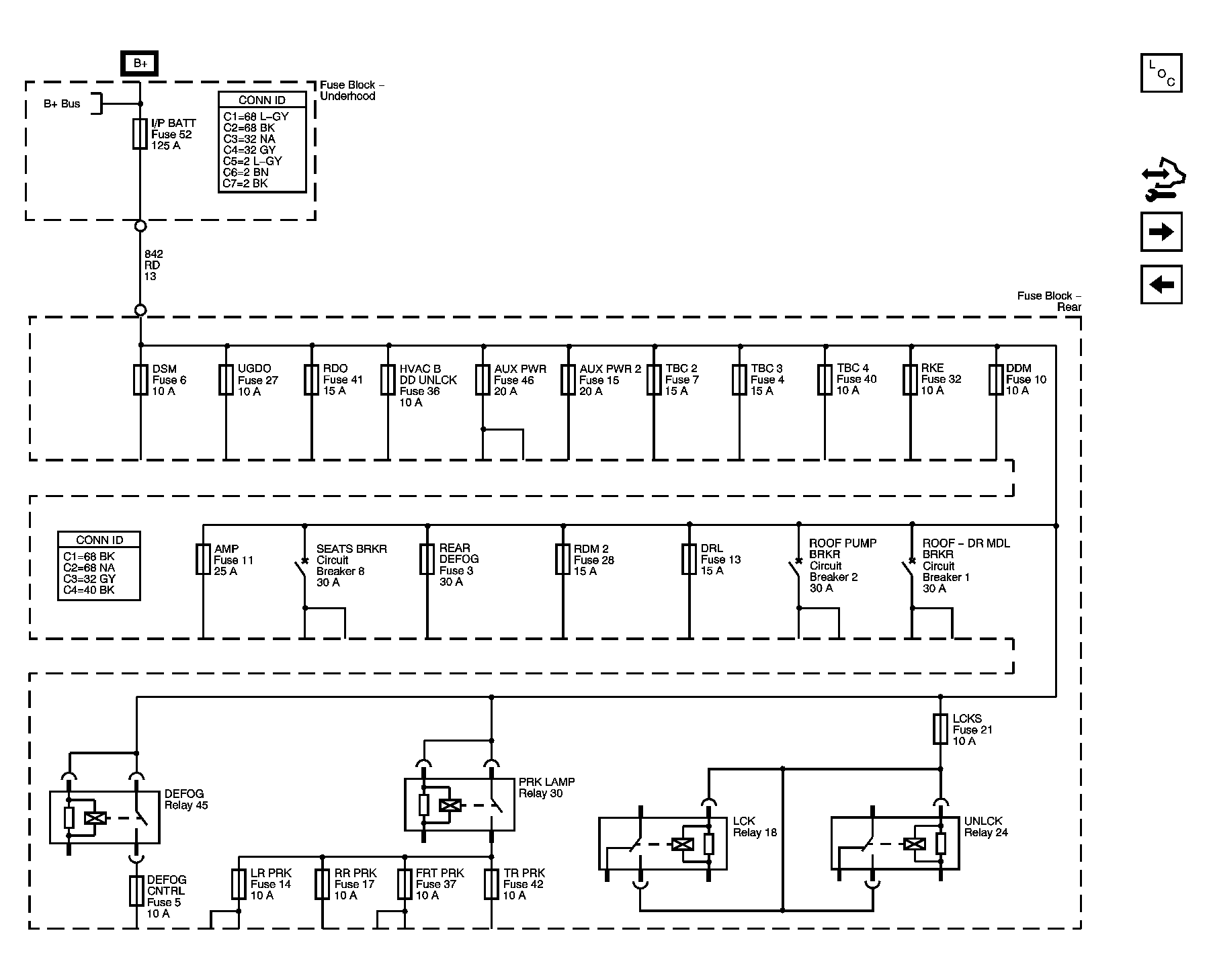

Fig 2: B+ BUS Schematic - Rear Fuse Block

Courtesy of GENERAL MOTORS CORP.

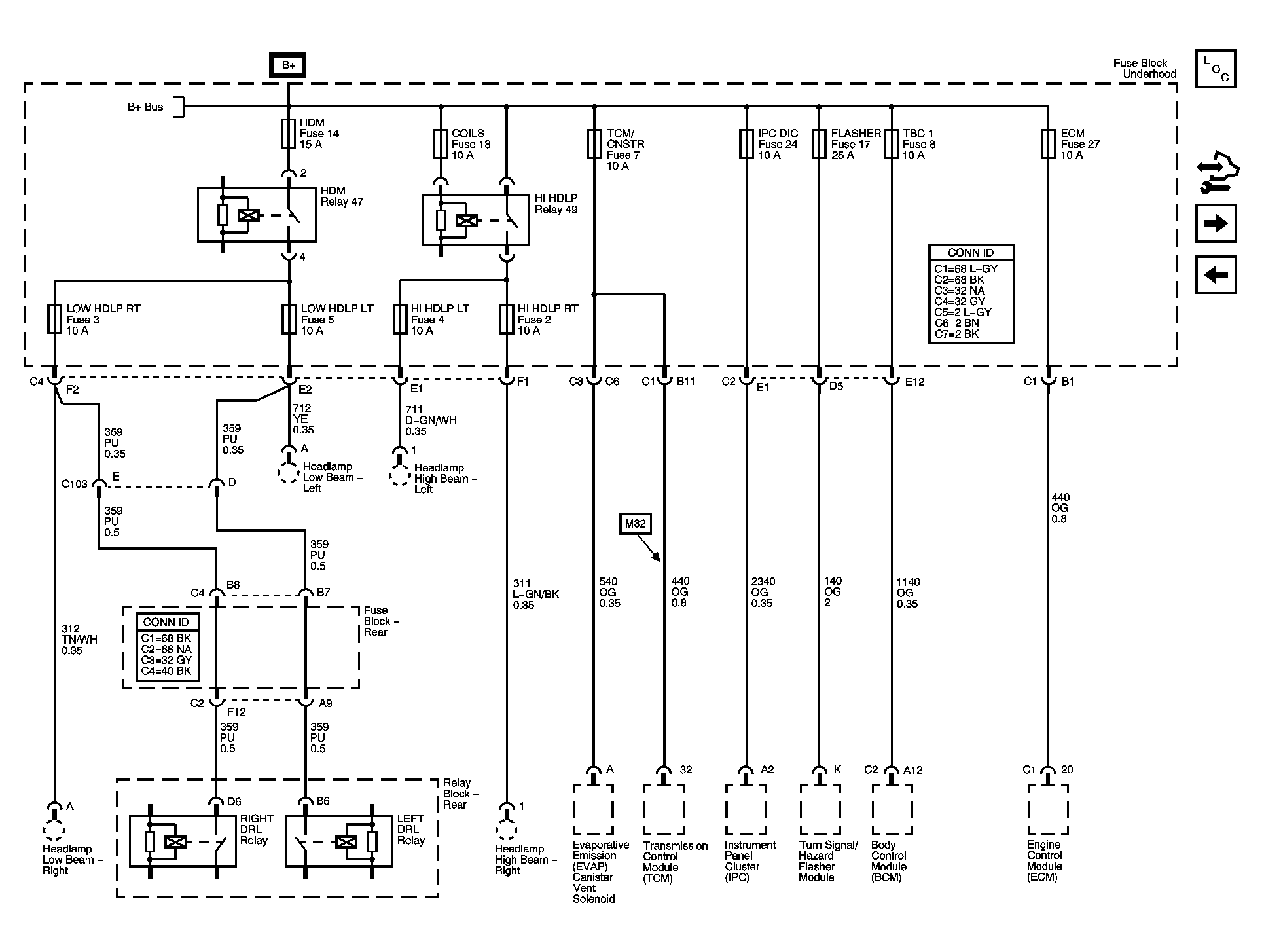

Fig 3: COILS, ECM, FLASHER, HDM, HI HDLP LT, HI HDLP RT, IPC DIC, LOW HDLP LT, LOW HDLP RT, TBC 1 & TCM/CNSTR Fuses Schematic

Courtesy of GENERAL MOTORS CORP.

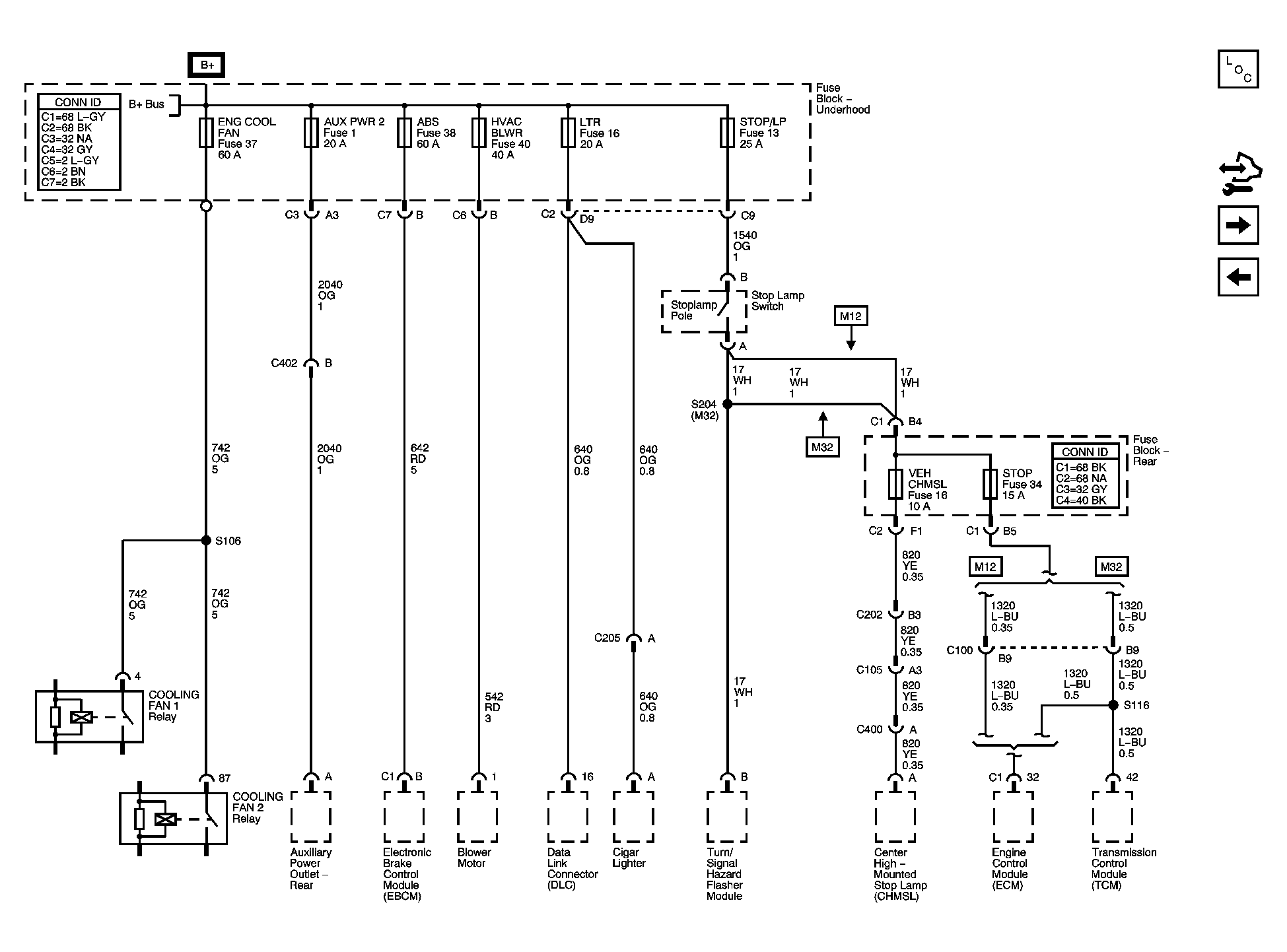

Fig 4: ABS, AUX PWR 2, ENG COOL FAN, HVAC BLWR, LTR, STOP, STOP/LP & VEH CHMSL Fuses Schematic

Courtesy of GENERAL MOTORS CORP.

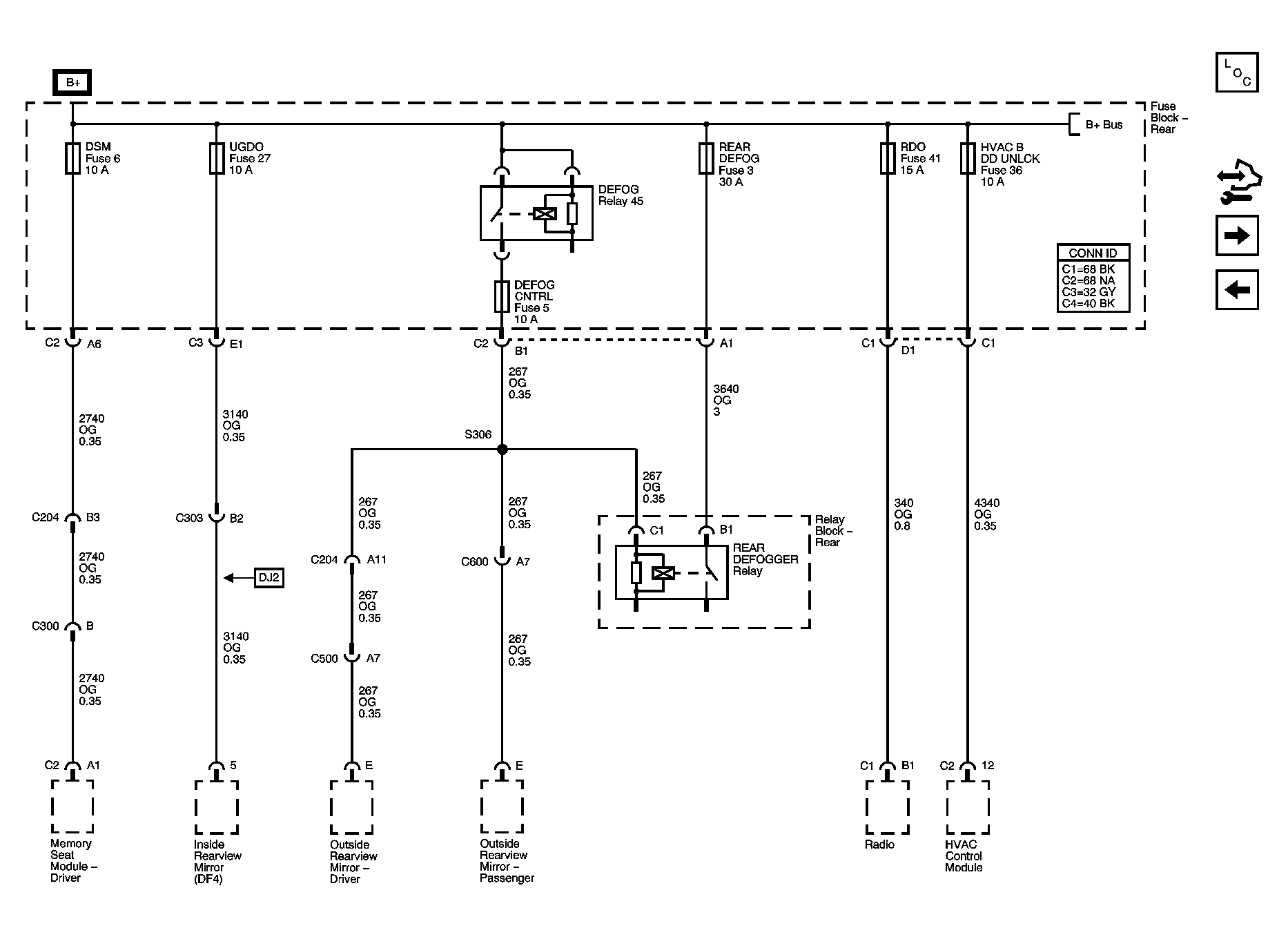

Fig 5: DEFG CONT, DR SEAT MOD, HVAC B DD UNLOCK, R/DEFG, RDO & UGDO Fuses Schematic

Courtesy of GENERAL MOTORS CORP.

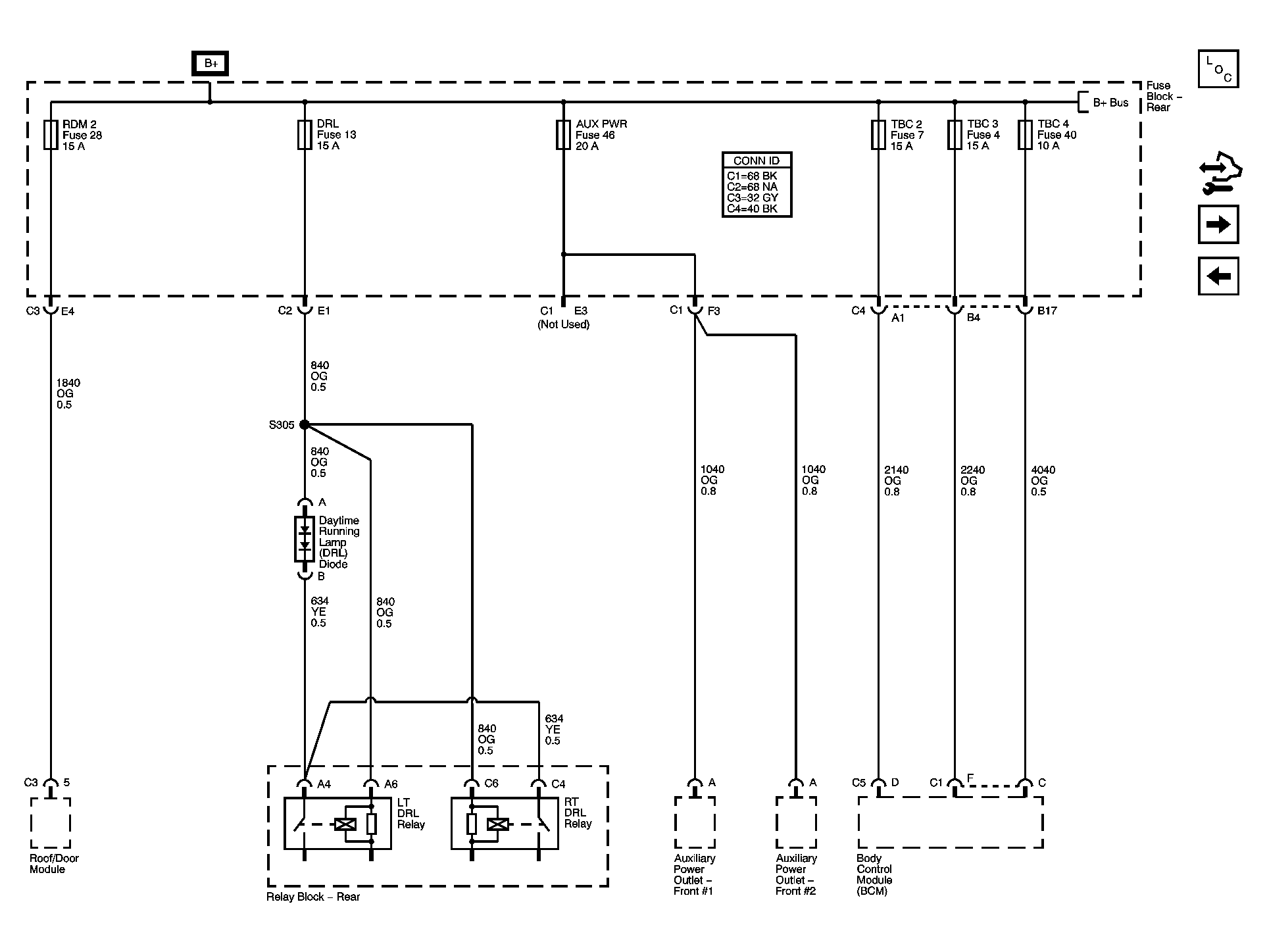

Fig 6: AUX PWR, DRL, RDM 2, TBC 2, TBC 3 & TBC 4 Fuses Schematic

Courtesy of GENERAL MOTORS CORP.

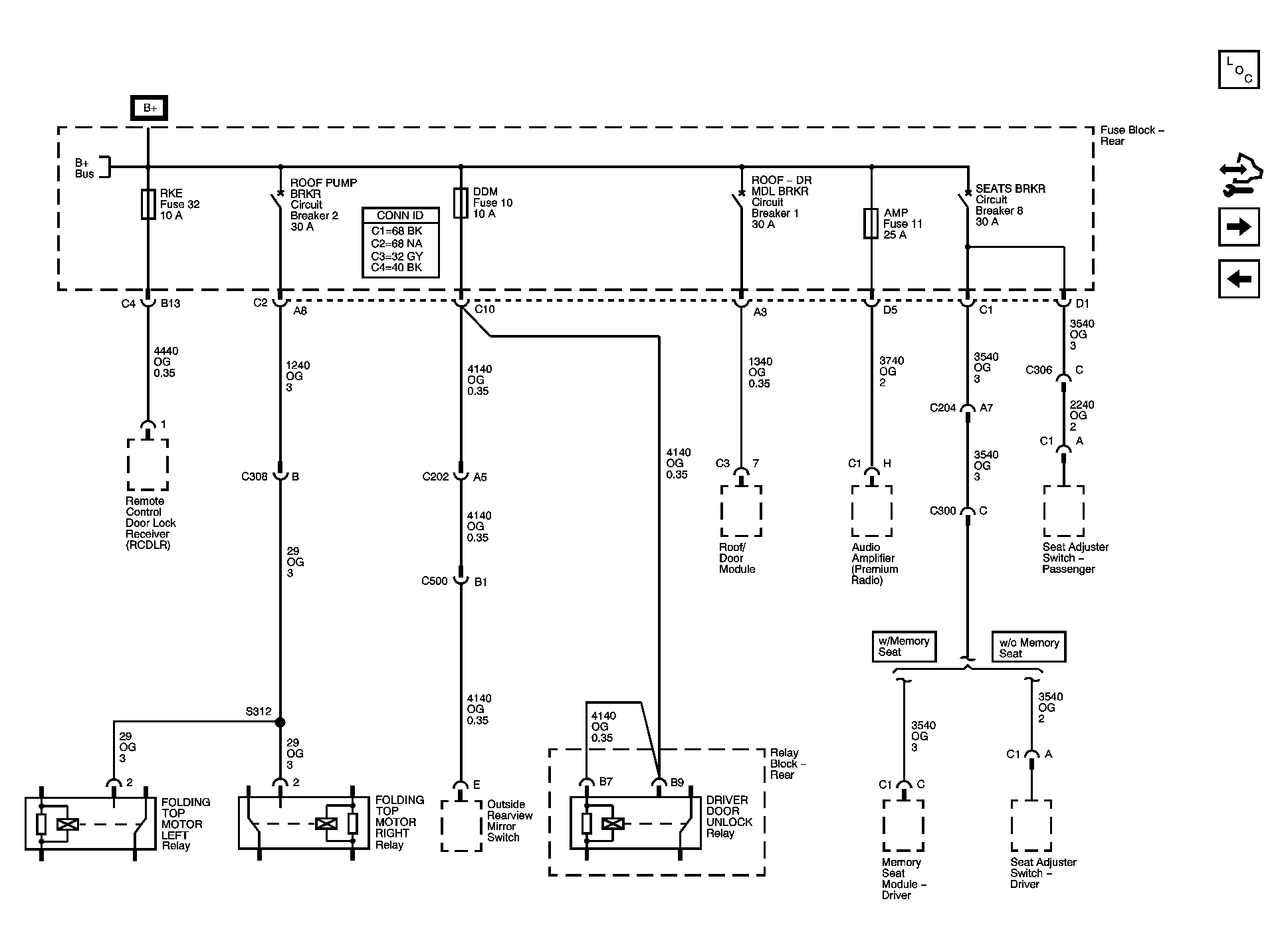

Fig 7: AMP, DDM, and RKE Fuses, and ROOF-DOOR MOD, ROOF-PUMP & SEATS Circuit Breakers Schematic

Courtesy of GENERAL MOTORS CORP.

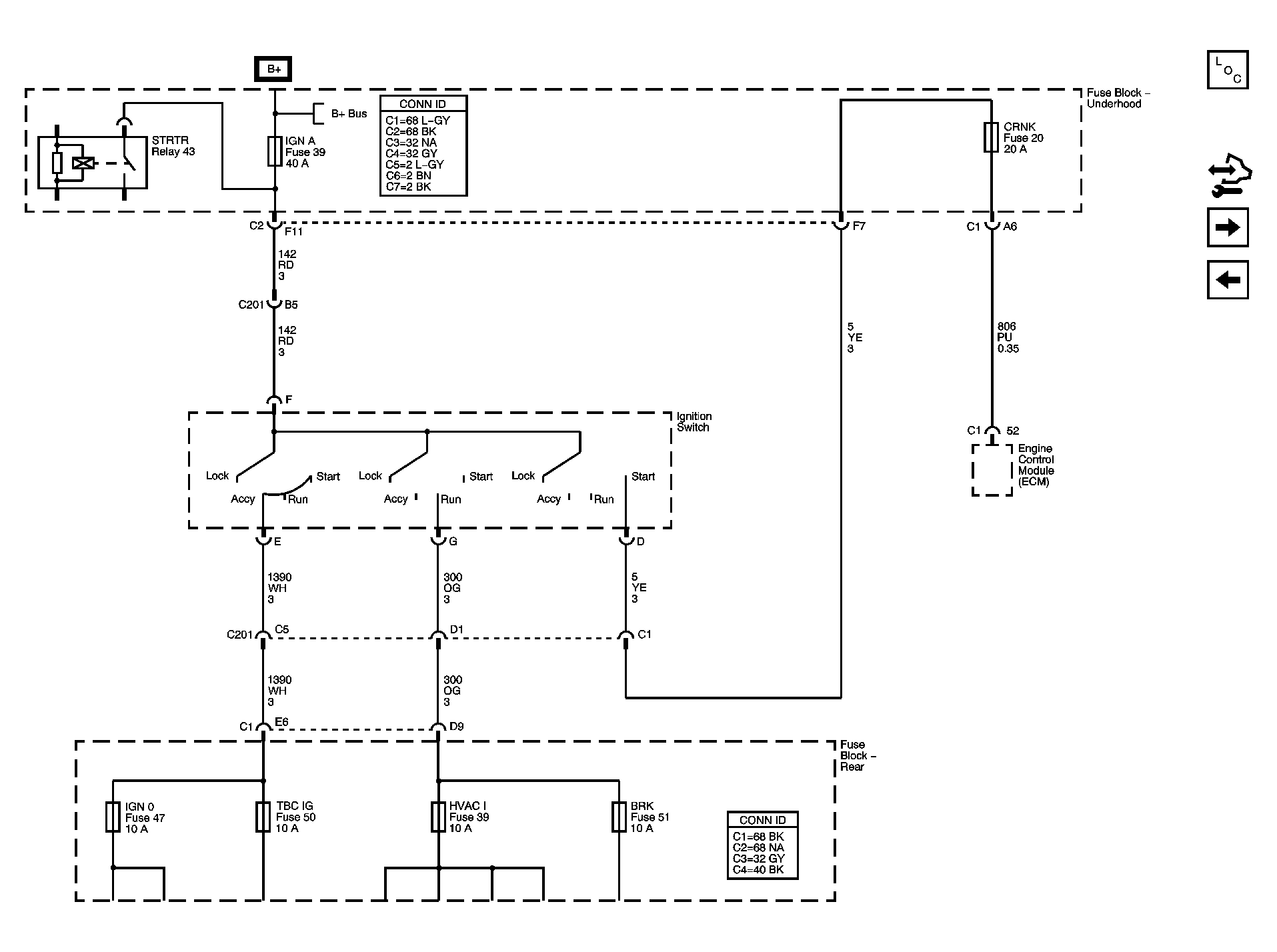

Fig 8: Ignition Switch - ACCY/RUN/START, RUN, and START Bus Bars, CRNK & IGN A Fuses Schematic

Courtesy of GENERAL MOTORS CORP.

Fig 9: Ignition Switch - ACCY/RUN and RUN/START Bus Bars & IGN B Fuse Schematic

Courtesy of GENERAL MOTORS CORP.

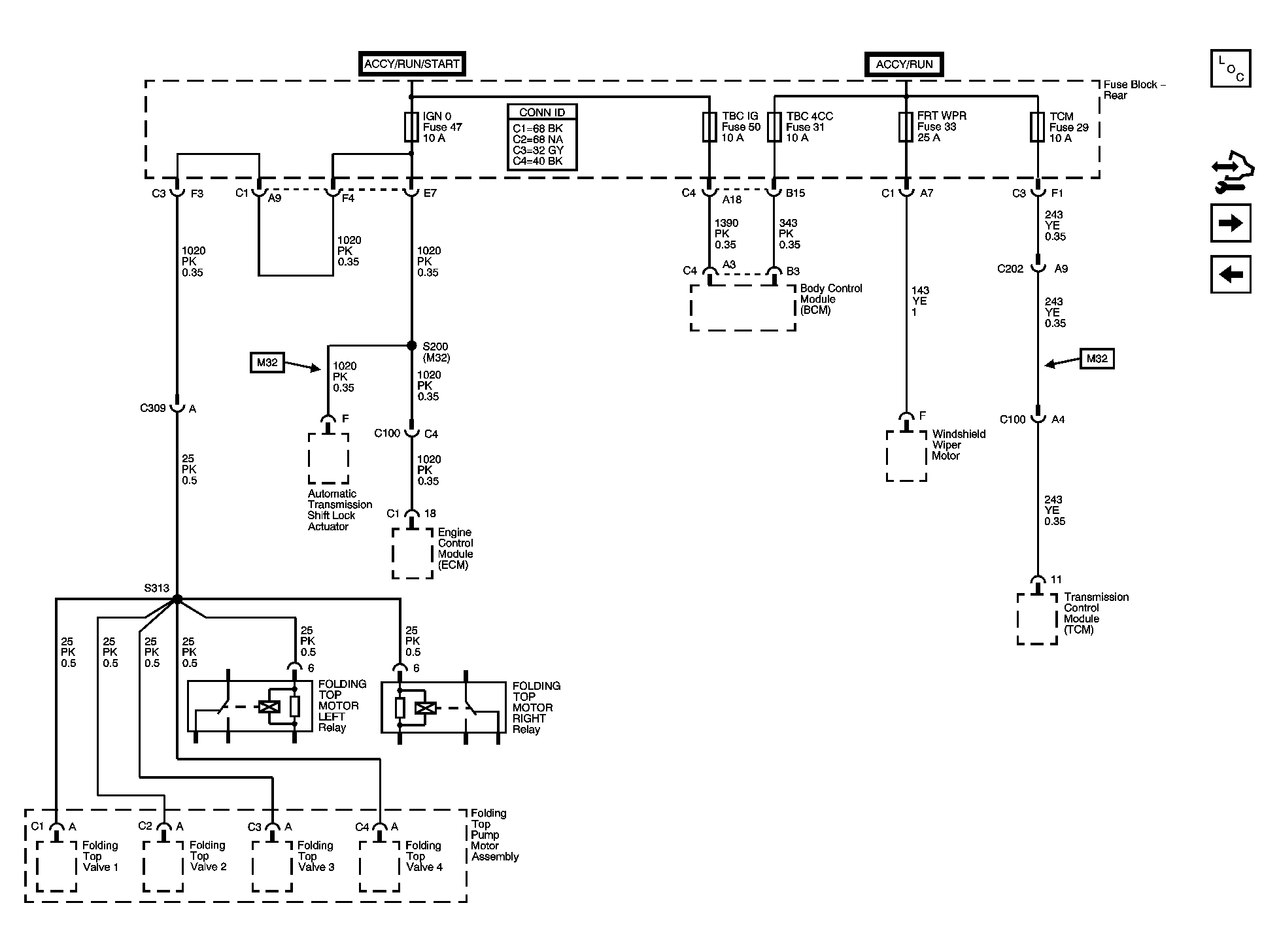

Fig 10: IGN 0, TBC IG, TBC 4CC & FT WPR Fuses Schematic

Courtesy of GENERAL MOTORS CORP.

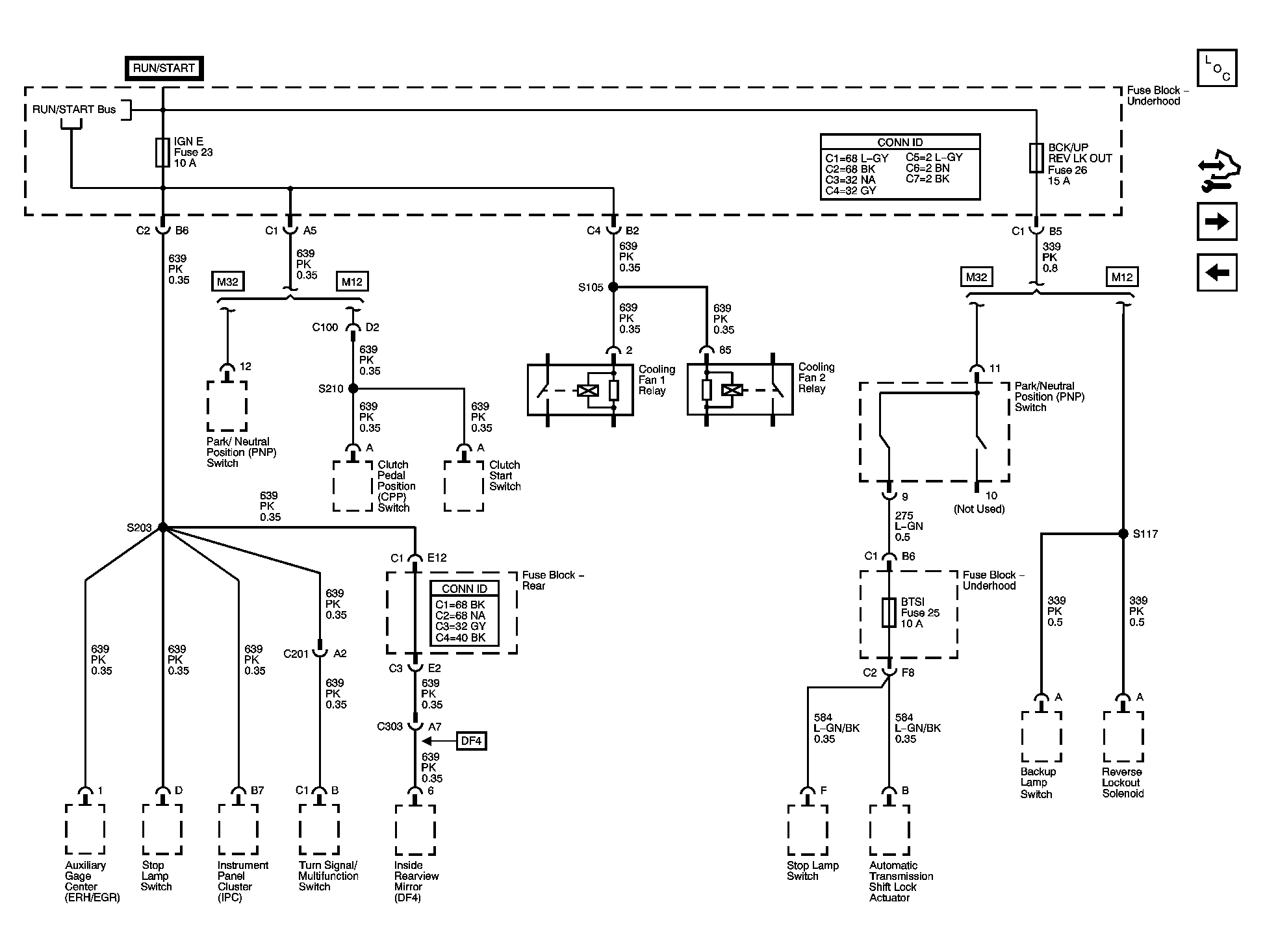

Fig 11: BCK/UP REV LK OUT, BTSI & IGN E Fuses Schematic

Courtesy of GENERAL MOTORS CORP.

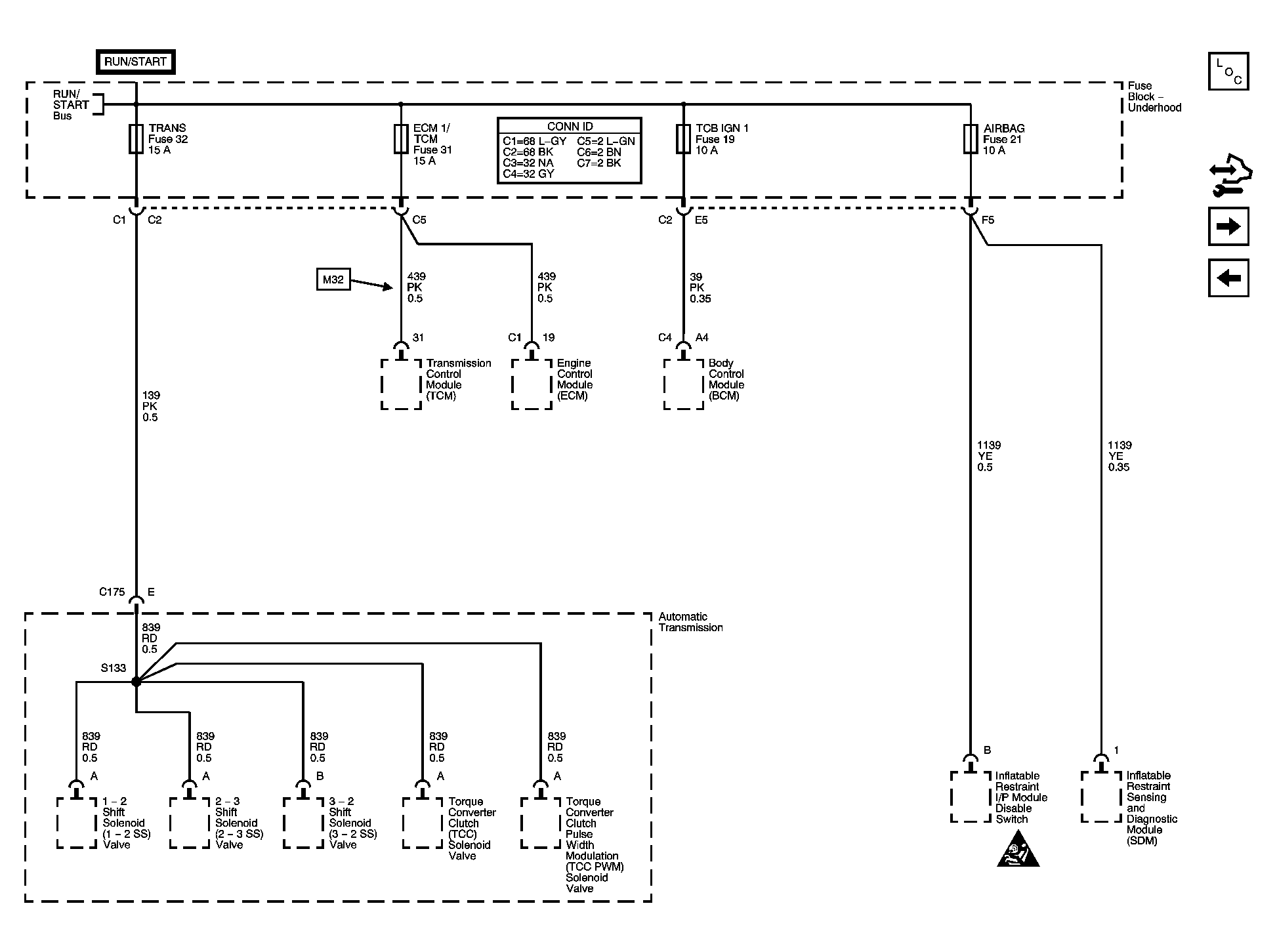

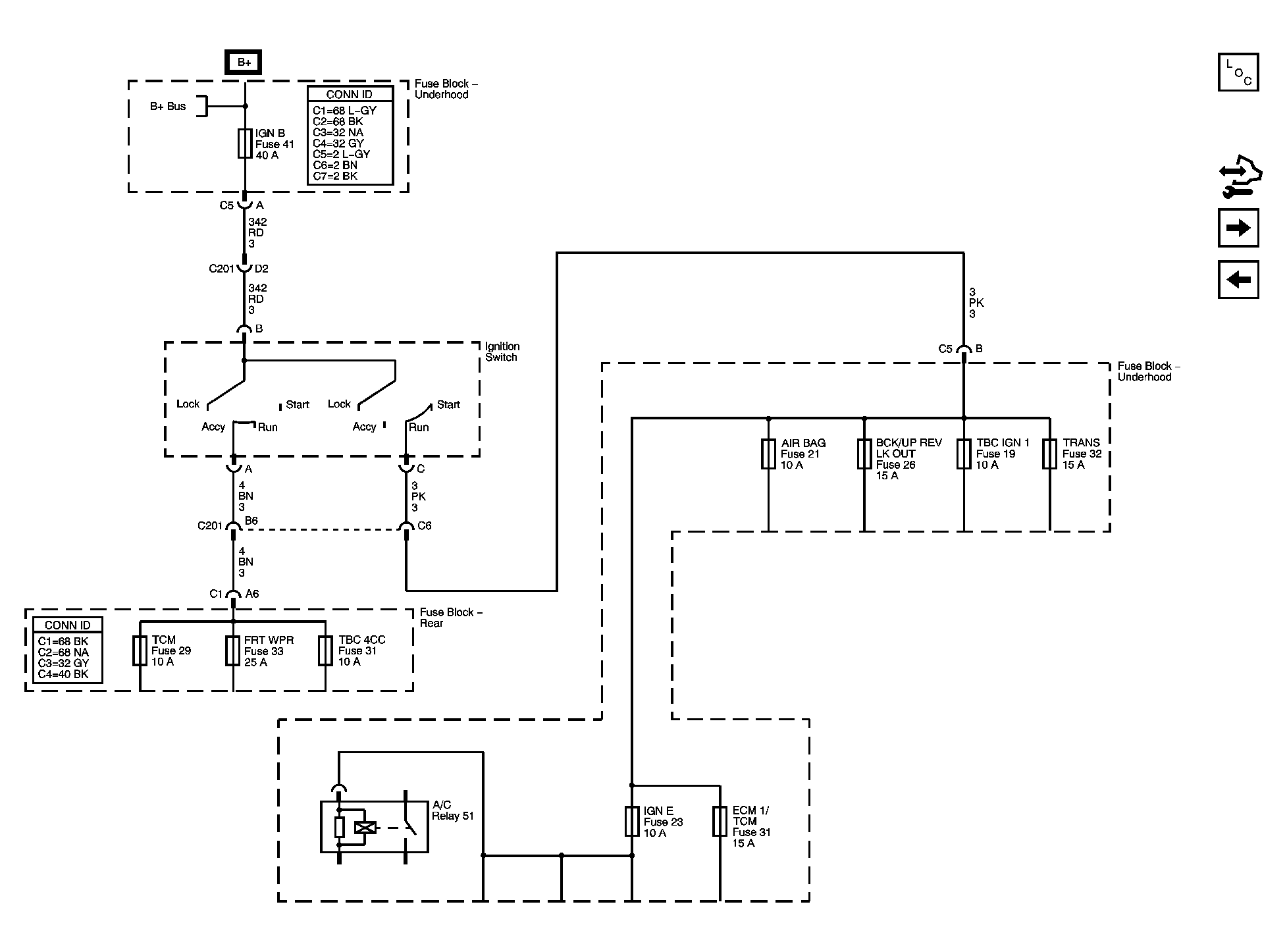

Fig 12: AIRBAG, ECM 1/TCM, TCB IGN 1 & TRANS Fuses Schematic

Courtesy of GENERAL MOTORS CORP.

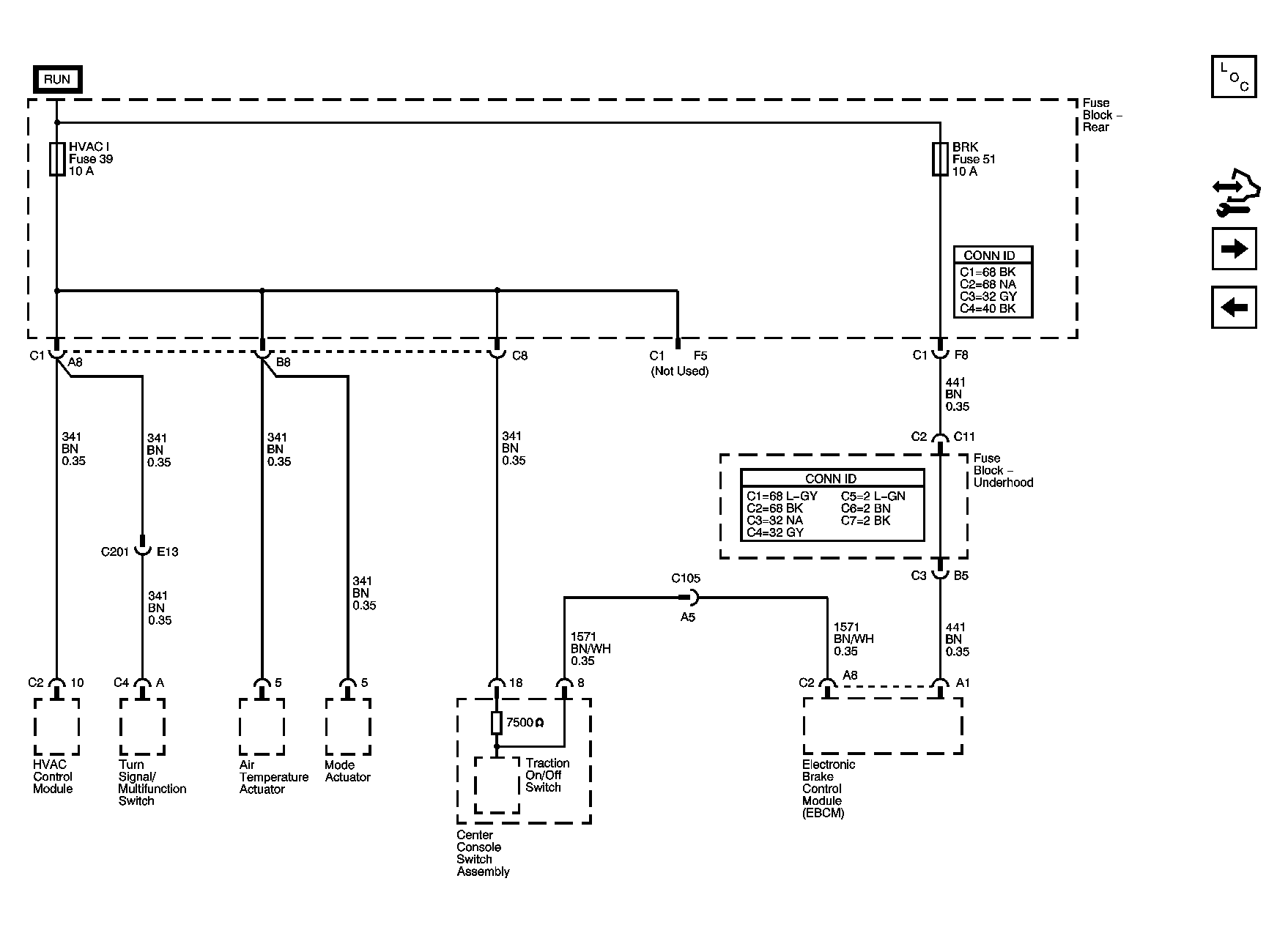

Fig 13: BRK & HVAC I Fuses Schematic

Courtesy of GENERAL MOTORS CORP.

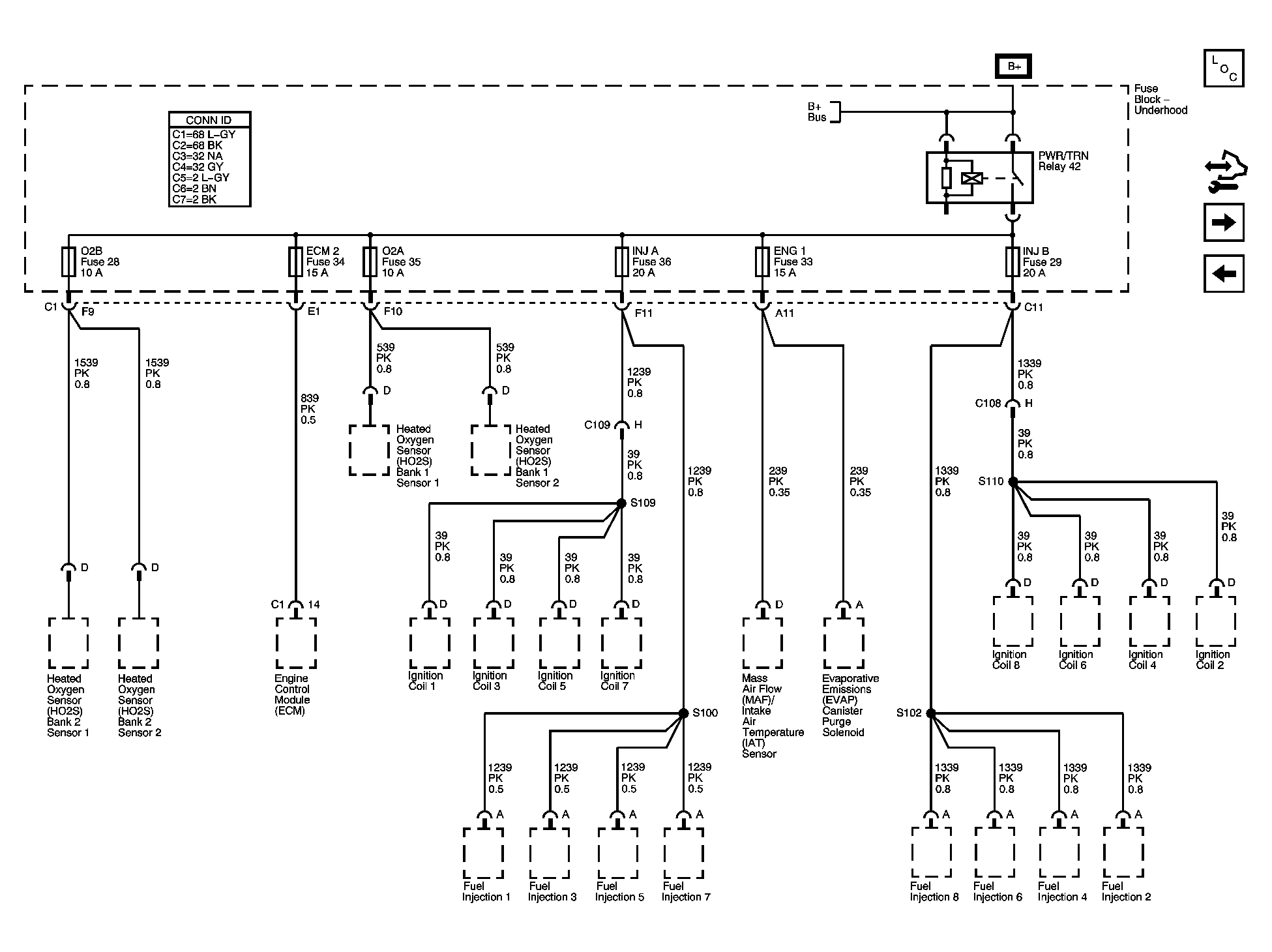

Fig 14: ECM 2, ENG 1, INJ A, INJ B, O2A & O2B Fuses Schematic

Courtesy of GENERAL MOTORS CORP.

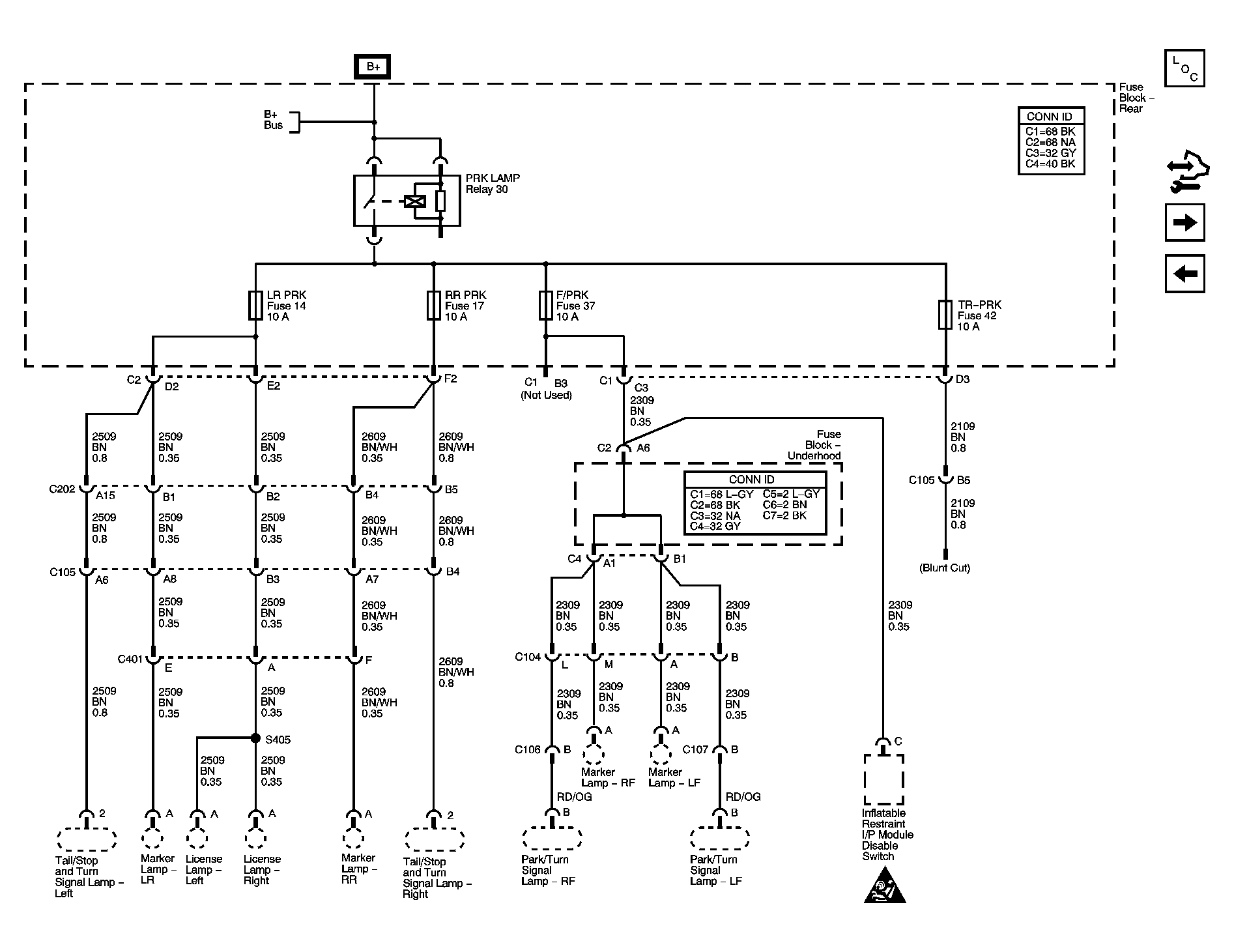

Fig 15: F/PRK, LR PRK, RR PRK & TR-PRK Fuses Schematic

Courtesy of GENERAL MOTORS CORP.

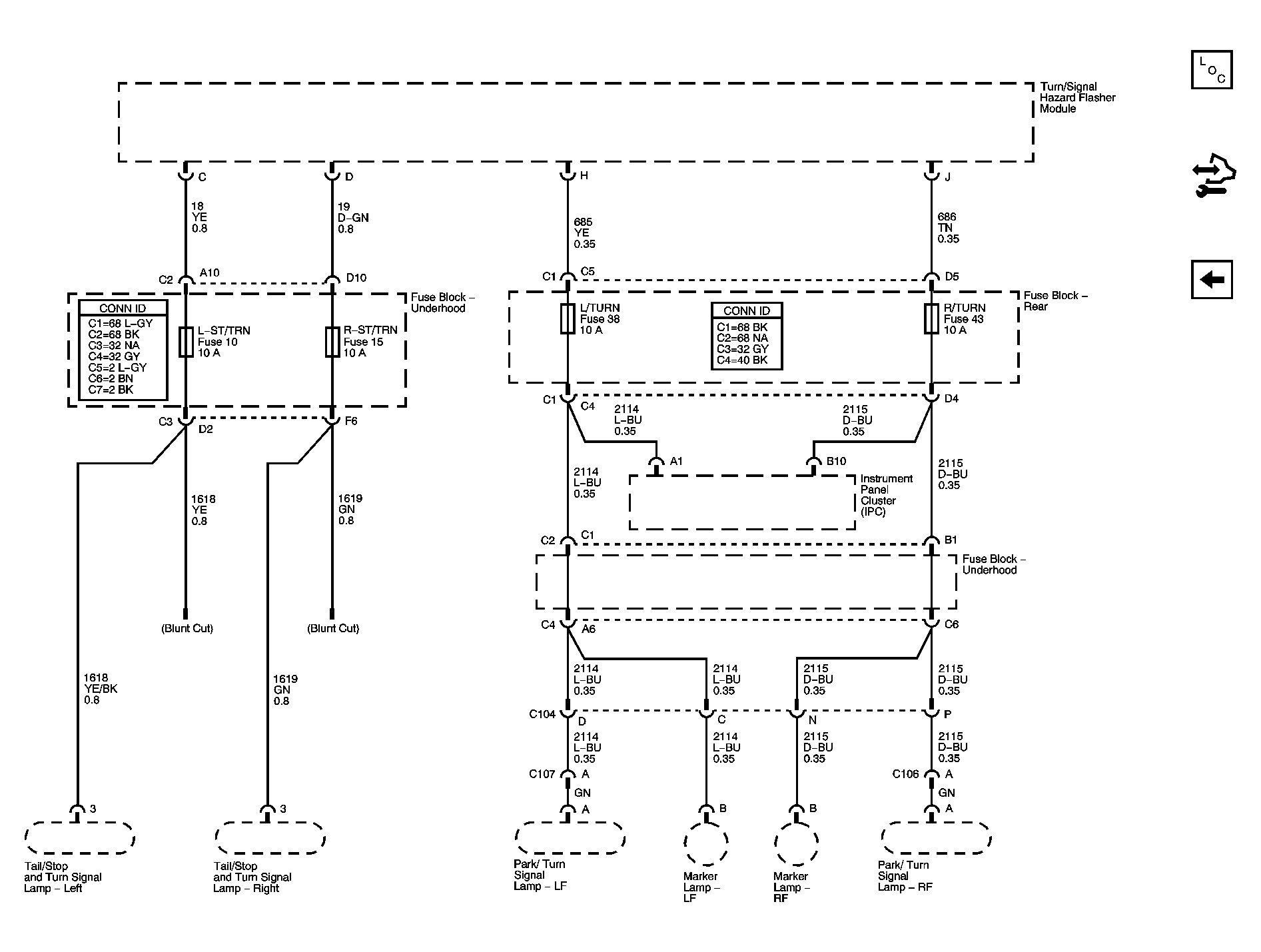

Fig 16: L-ST/TRN, L/TURN, R-ST/TRN & R/TURN Fuses Schematic

Courtesy of GENERAL MOTORS CORP.
