Installation Procedure

WARNING: This page is about a different car, the 2005 Chevrolet Corvette. However, it is still accessible from the selected car via links, so may be relevant.

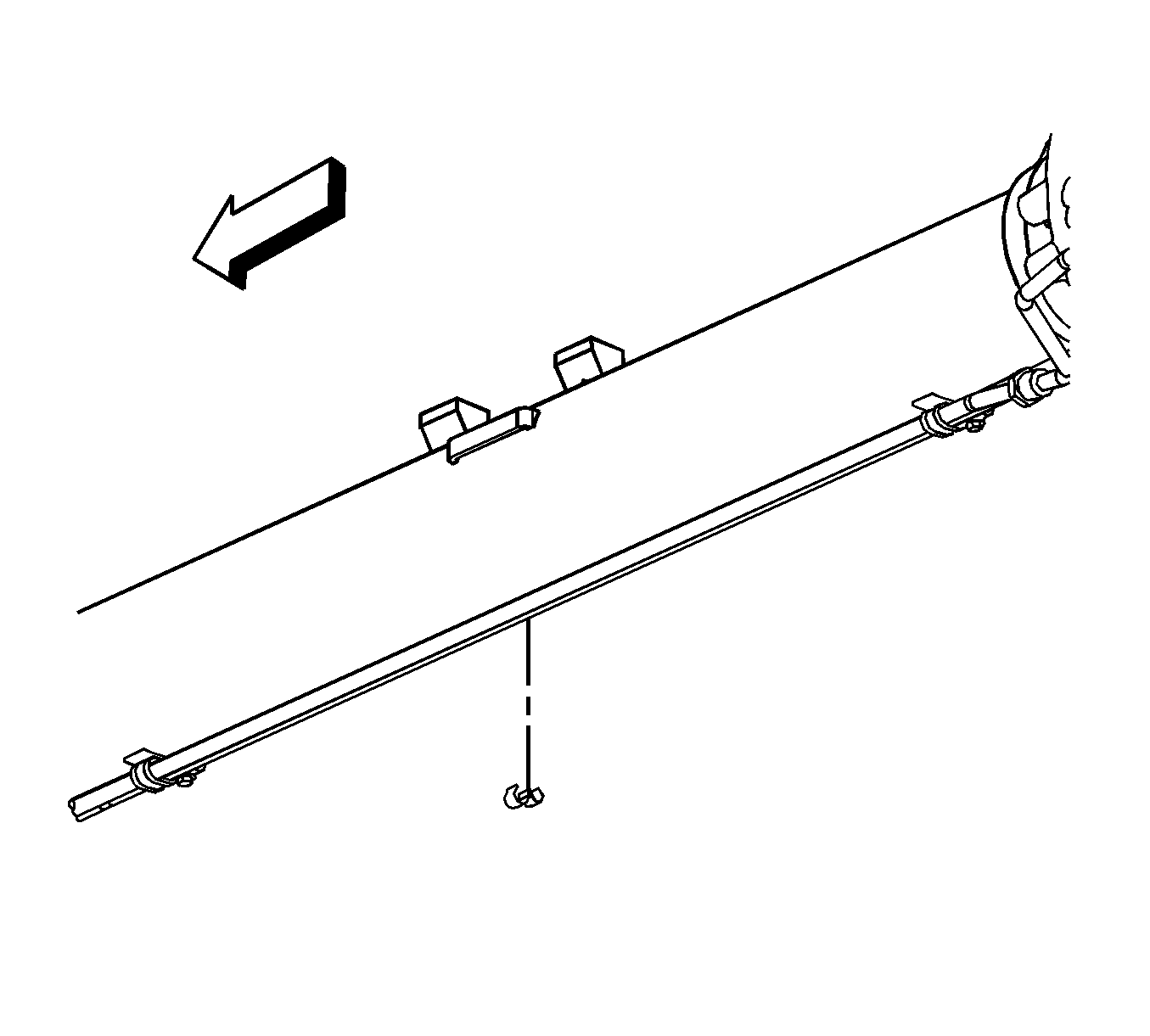

Fig 1: Intermediate Transmission Fluid Cooler Lower Pipe & Rear Transmission Lower Pipe

Courtesy of GENERAL MOTORS CORP.

Connect the intermediate transmission fluid cooler lower pipe to the rear transmission lower pipe. Refer to Transmission Fluid Cooler Line Quick Connect Fitting .

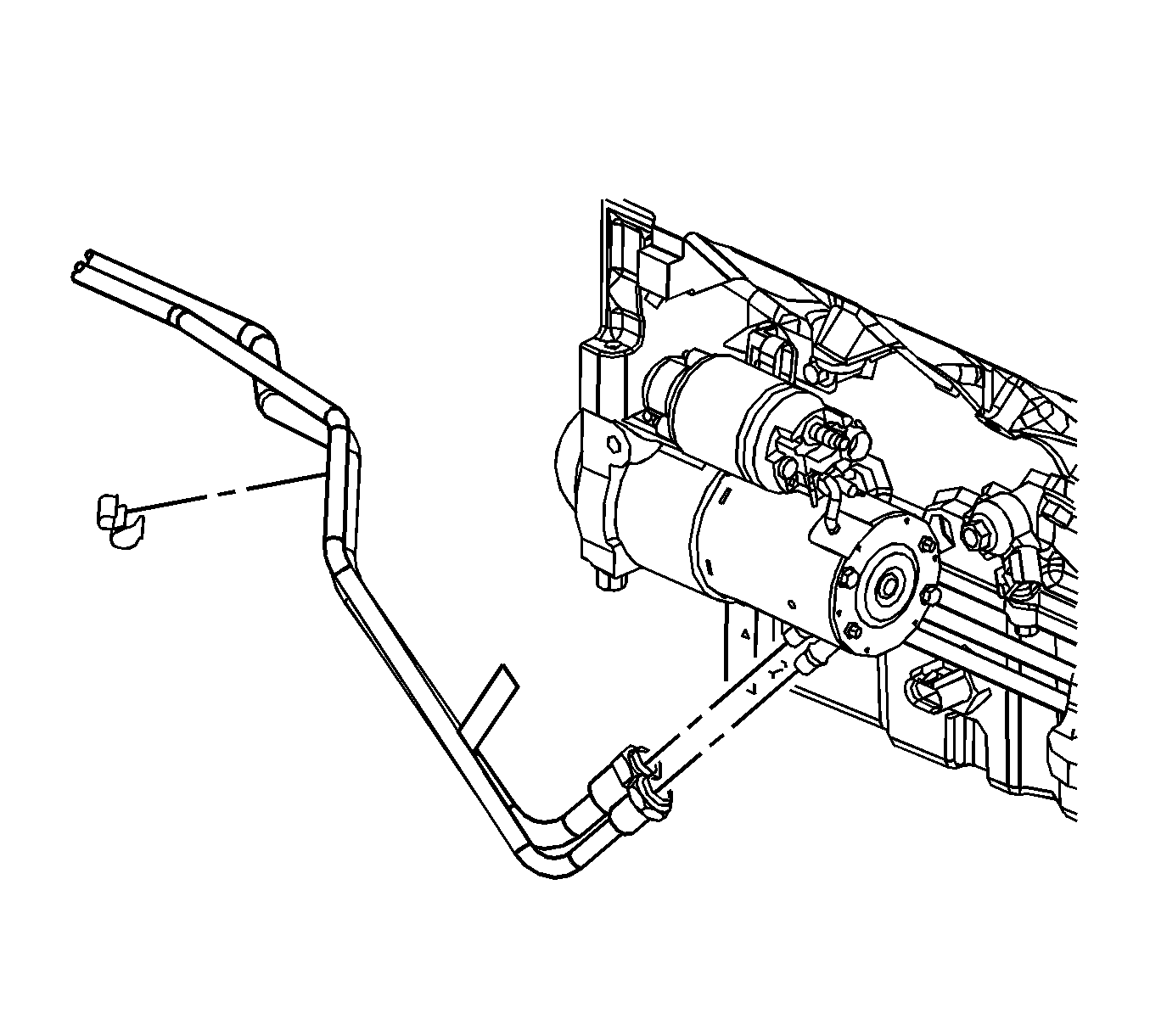

Fig 2: Upper & Lower Transmission Oil Cooler Lines At Intermediate Lines

Courtesy of GENERAL MOTORS CORP.

Connect the intermediate transmission fluid cooler lower pipe to the front transmission fluid cooler lower pipe. Refer to Transmission Fluid Cooler Line Quick Connect Fitting .

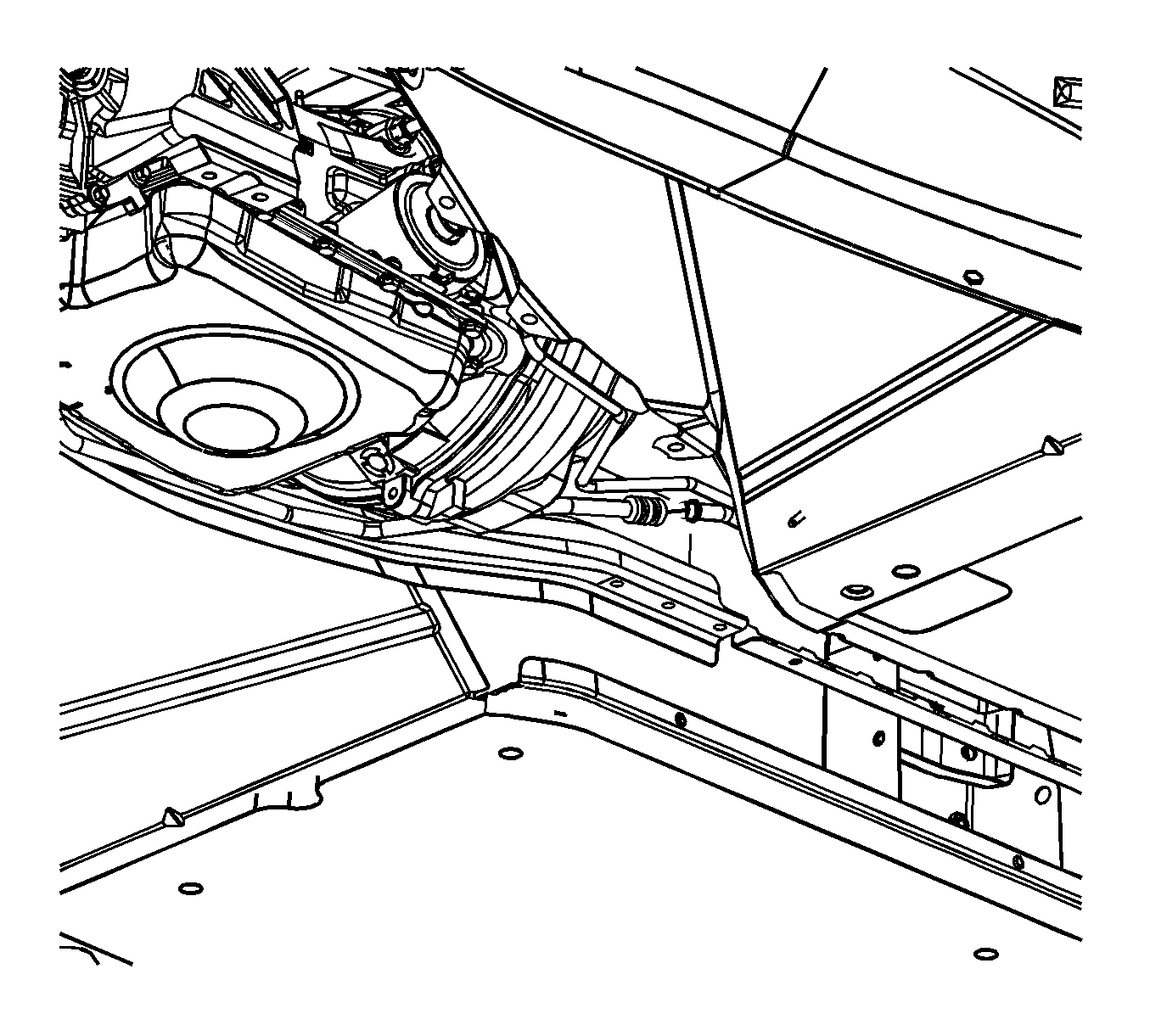

Fig 3: Transmission Fluid Cooler Pipes & Clip

Courtesy of GENERAL MOTORS CORP.

Install the transmission fluid cooler pipes clip.

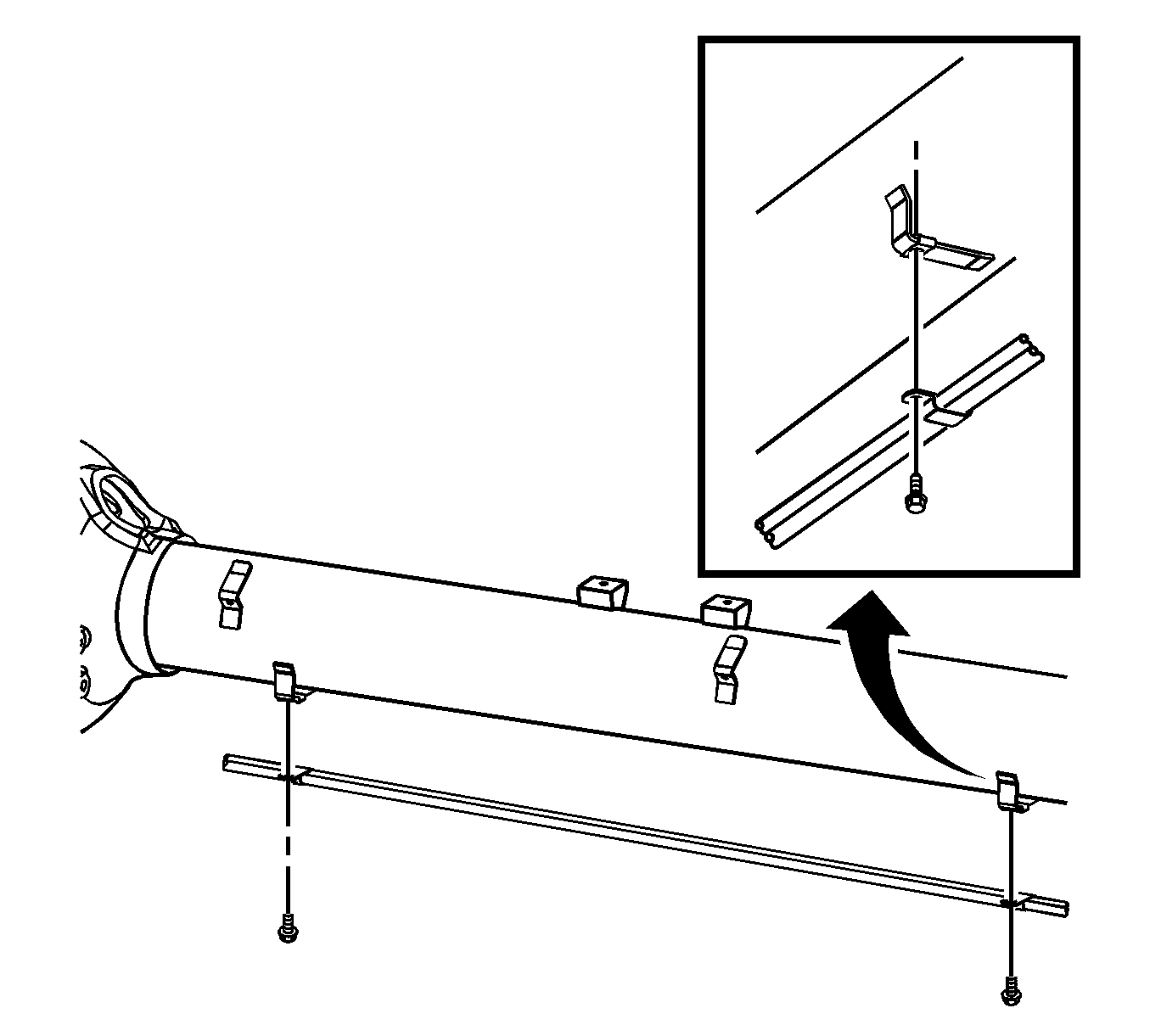

Fig 4: Rear Transmission Fluid Cooler Upper Pipe, Retaining Bolts & Driveline Support

Courtesy of GENERAL MOTORS CORP.

NOTE: Refer to Fastener Notice in Cautions and Notices.

Install the transmission fluid cooler pipe retaining bolts to the driveline support.
Tighten: Tighten the bolt to 12 N.m (9 lb ft).
Check the transmission fluid level, add fluid if necessary. Refer to Transmission Fluid Checking Procedure .
Remove the drain pan.
Install the driveline tunnel closeout panel. Refer to Driveline Tunnel Closeout Panel Replacement in Propeller Shaft.
Lower the vehicle. Refer to Lifting and Jacking the Vehicle in General Information.
