Removal Procedure

WARNING: This page is about a different car, the 2005 Chevrolet Corvette. However, it is still accessible from the selected car via links, so may be relevant.

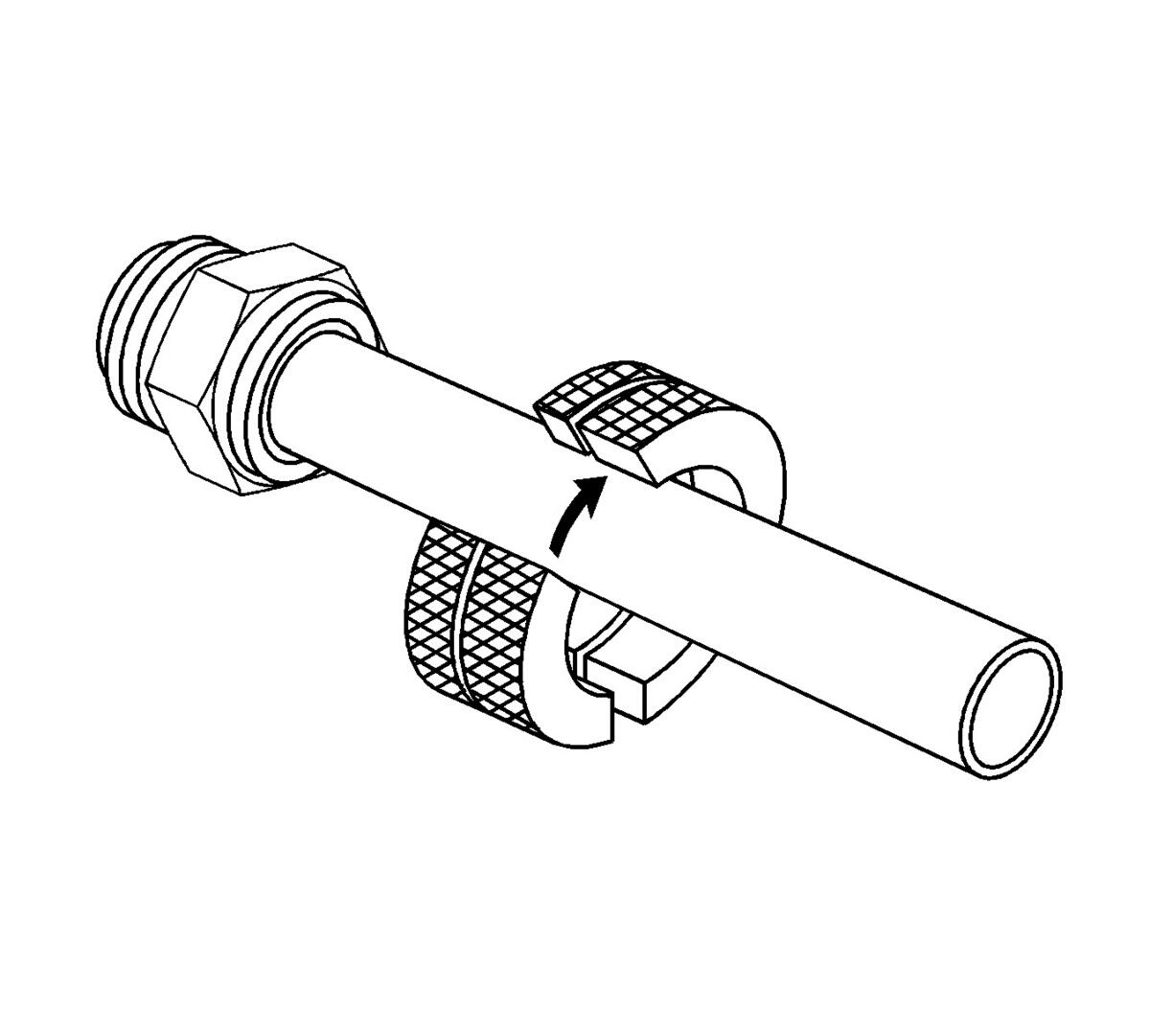

Fig 1: Installing J 41623-B Onto Generator Cooling Inlet Pipe

Courtesy of GENERAL MOTORS CORP.

Install the J 41623-B or the DT-47731 onto the transmission oil cooler (TOC) pipe.

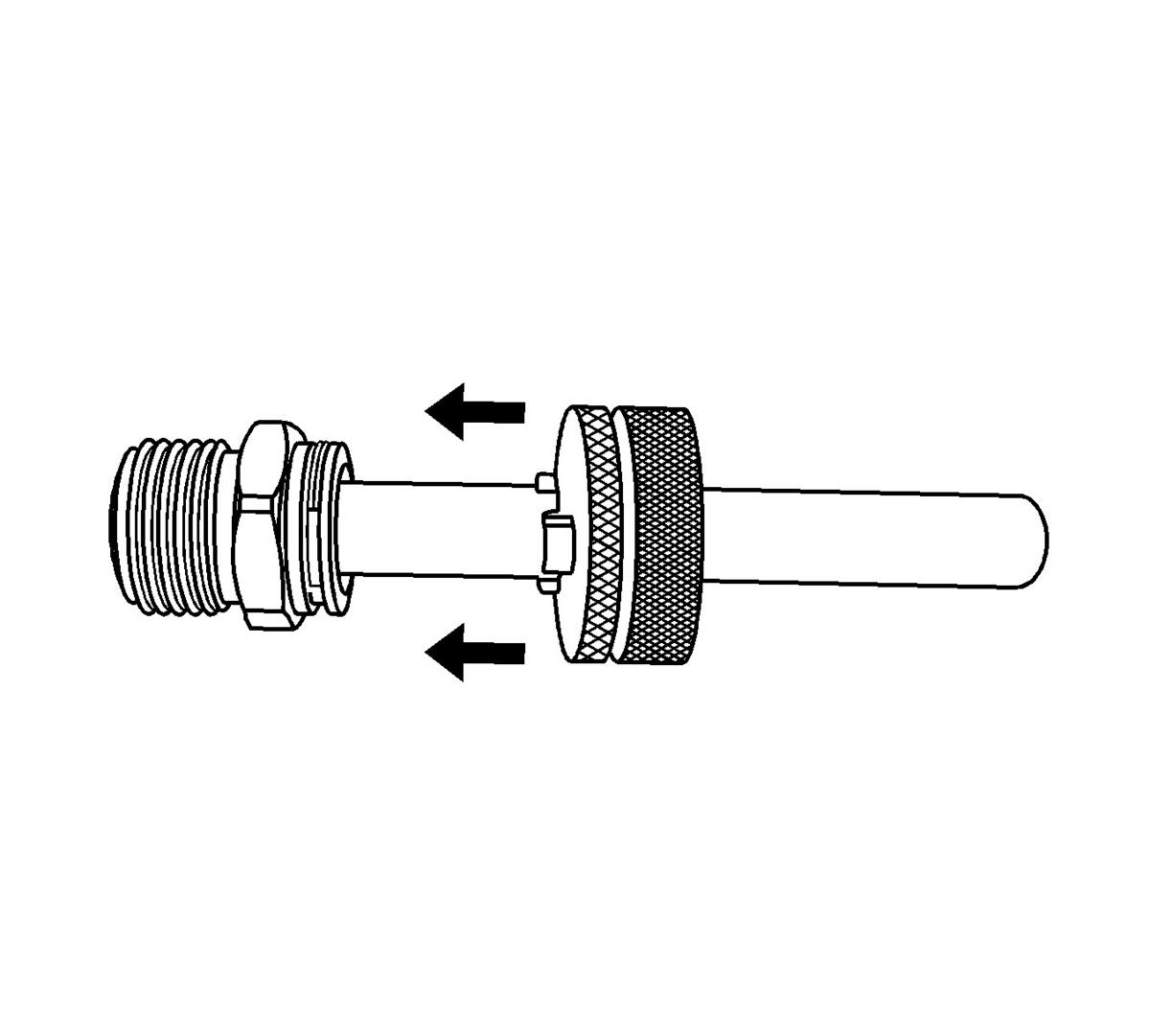

Fig 2: Sliding J 41623-B Toward Generator Cooling Inlet Pipe Fitting

Courtesy of GENERAL MOTORS CORP.

Slide the J 41623-B or the DT-47731 toward the TOC pipe fitting.

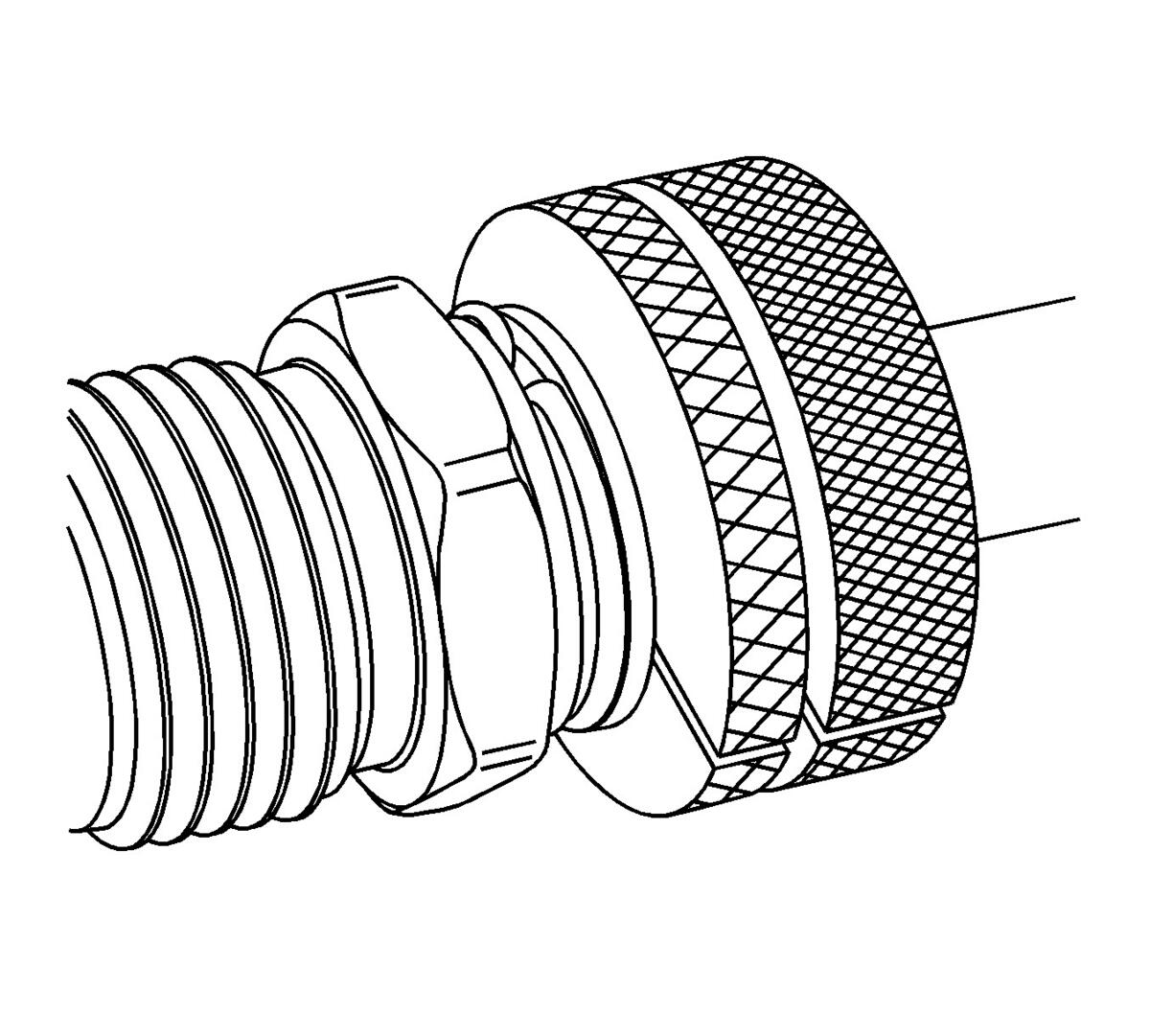

Fig 3: Rotating J 41623-B On Coolant Pipe

Courtesy of GENERAL MOTORS CORP.

IMPORTANT: Rotate the J 41623-B or the DT-47731 to engage the TOC pipe fitting's retainer slots.
The J 41623-B or the DT-47731 should be nearly flush with the fitting.

Connect the J 41623-B or the DT-47731 onto the TOC pipe fitting.

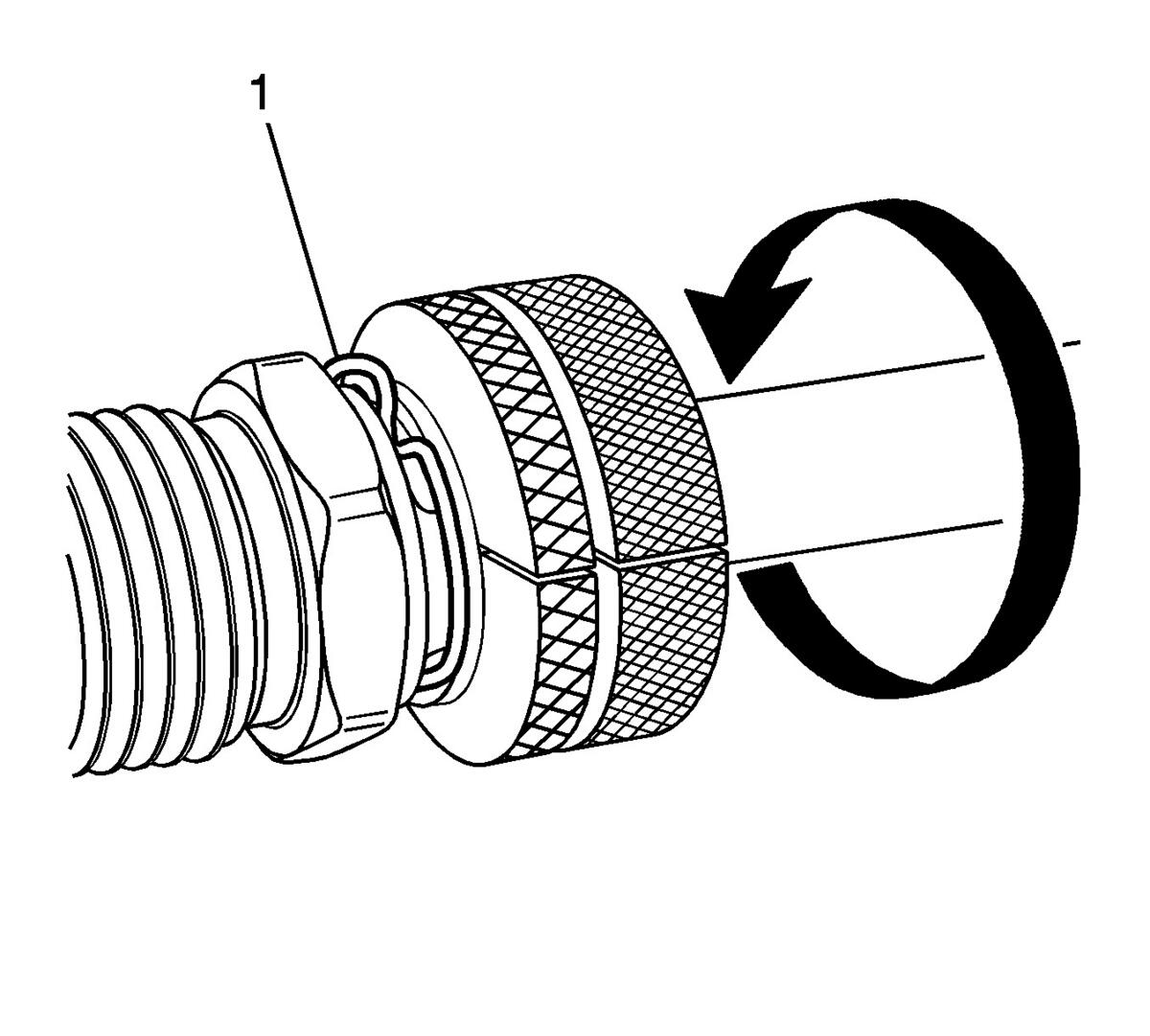

Fig 4: Rotating J 41623-B Until Retainer Clip Rises Above Fitting Retainer Seat

Courtesy of GENERAL MOTORS CORP.

Rotate the J 41623-B or the DT-47731 until the retainer clip (1) rises above the fitting retainer seat.

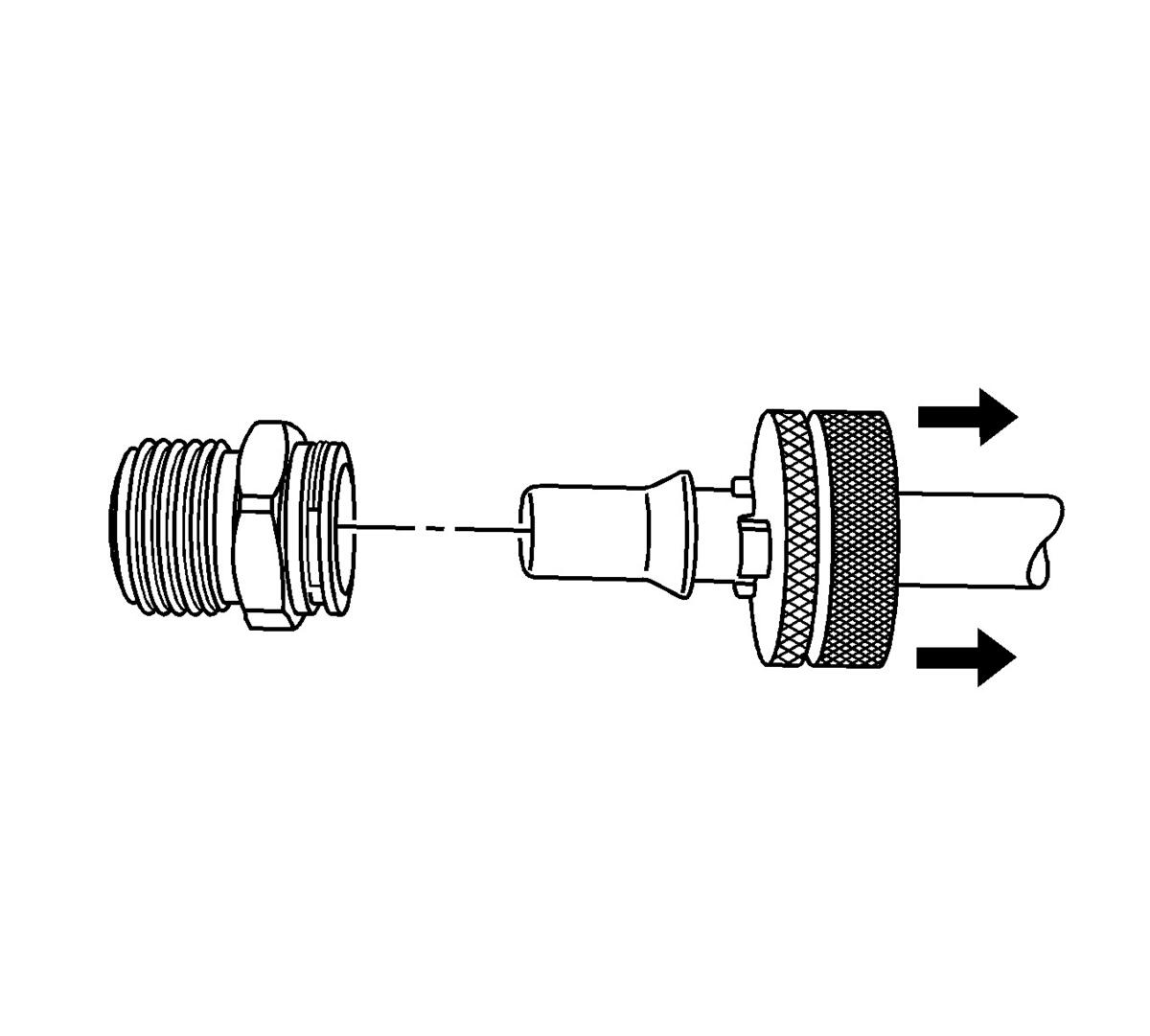

Fig 5: Removing J 41623-B From Generator Cooling Inlet Pipe

Courtesy of GENERAL MOTORS CORP.

Pull back on the TOC pipe to disengage the pipe from the TOC pipe fitting.
Remove the J 41623-B or the DT-47731 from the TOC pipe.
