Removal Procedure

WARNING: This page is about a different car, the 2005 Chevrolet Corvette. However, it is still accessible from the selected car via links, so may be relevant.
  1. Drain the cooling system. Refer to Draining and Filling Cooling System (Static Fill) .
  2. Remove the radiator support. Refer to Radiator Support Replacement .
    3. Fig 1: Radiator Inlet Hose At Radiator
    GM1482975Courtesy of GENERAL MOTORS CORP.
  3. Disengage tension on the radiator inlet hose clamp at the radiator using J 38185  . See Special Tools .
  4. Disconnect the radiator inlet hose from the radiator.

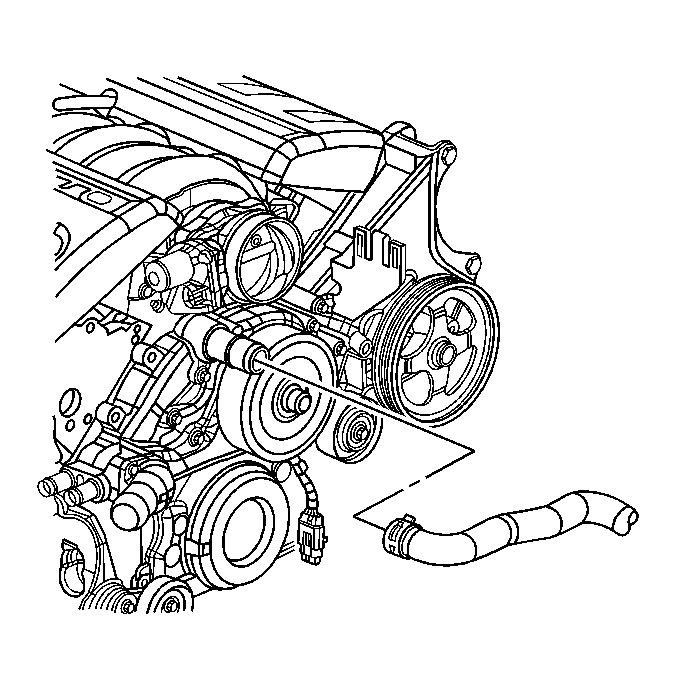

    5. Fig 2: Radiator Inlet Hose At Water Pump
    GM1482977Courtesy of GENERAL MOTORS CORP.
  5. Disengage tension on the radiator inlet hose clamp at the water pump using J 38185  . See Special Tools .
  6. Disconnect the radiator inlet hose from the water pump.
  7. Remove the radiator inlet hose from the vehicle.
