Installation Procedure

WARNING: This page is about a different car, the 2005 Chevrolet Corvette. However, it is still accessible from the selected car via links, so may be relevant.

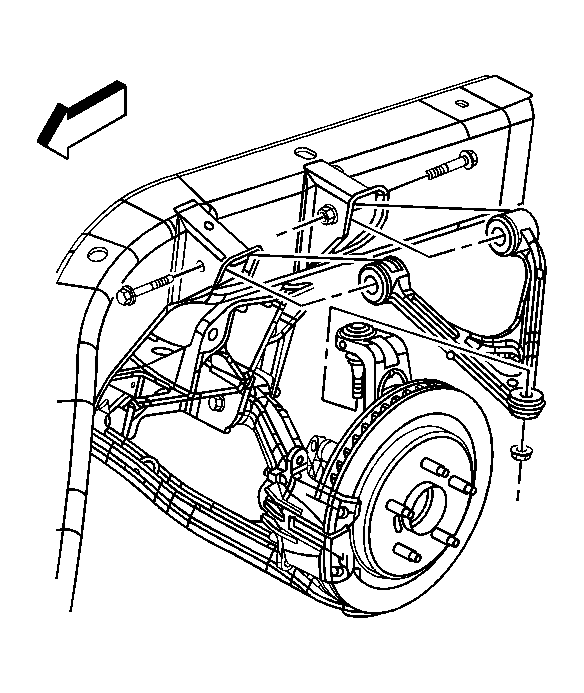

    Fig 1: Upper Control Arm, Frame & Suspension Knuckle
    GM922525Courtesy of GENERAL MOTORS CORP.
  1. Install the upper control arm to the vehicle.
    2. NOTE: Refer to Fastener Notice in Cautions and Notices.
  2. Install the upper control arm mounting bolts and to the frame.

    Tighten:  Tighten the upper control arm mounting bolts to 110 N.m (81 lb ft).

  3. Install the suspension knuckle upper ball joint stud into the upper control arm.

    It may be necessary to use an allen wrench to keep the ball joint stud from spinning while tightening the ball joint stud nut.

  4. Install the upper ball joint stud nut.

    Tighten:  Tighten the suspension knuckle ball joint stud nut to 30 N.m (22 lb ft) plus 195 degrees.

    5. Fig 2: View Of Wheel Speed Sensor Electrical Connectors
    GM919156Courtesy of GENERAL MOTORS CORP.
  5. Connect the wheel speed sensor electrical connector.
  6. Connect the electronic suspension control sensor link. Refer to Rear Position Sensor Replacement - Electronic Suspension in Electronic Suspension Control (ESC).
  7. Remove the jack stand from the lower control arm.
  8. Install the tire and wheel assembly. Refer to Tire and Wheel Removal and Installation in Tires and Wheels.
  9. Lower the vehicle.
  10. Perform a rear wheel alignment. Refer to Measuring Wheel Alignment in Wheel Alignment.
