Underhood Lamp Replacement
WARNING: This page is about a different car, the 2005 Chevrolet Corvette. However, it is still accessible from the selected car via links, so may be relevant.
Underhood Lamp Replacement

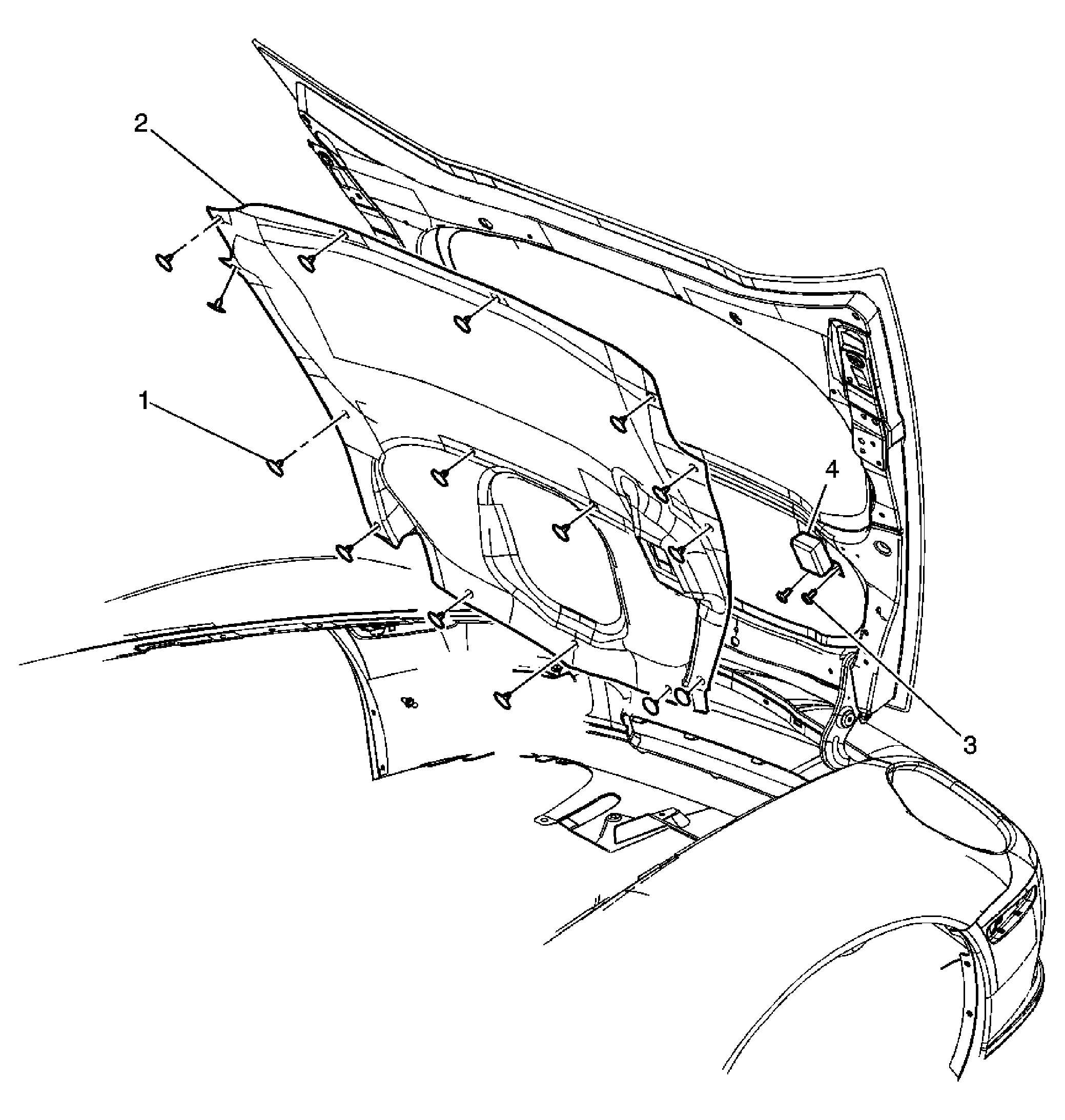

| Callout | Component Name |
|---|---|
|
CAUTION:
The high intensity discharge system produces high voltage and current. To reduce the risk of severe shocks and burns:
CAUTION:
The high intensity discharge system produces high voltage and current. In order to reduce the risk of severe shocks and burns, the battery negative cable must be disconnected any time service work is being performed on or around the high intensity discharge system.
NOTE:
Refer to Fastener Notice
in Cautions and Notices. Fastener Tightening Specifications:
Refer to Fastener Tightening Specifications . |
|
| 1 | Retainer, Hood Insulator (Qty: 14) Tighten: 3 N.m (27 lb in) |
| 2 | Insulator, Hood |
| 3 | Rivet, Underhood Lamp
CAUTION:
Refer to Eye Protection Caution
in Cautions and Notices. Tip: Drill out the rivets retaining the underhood lamp. |
| 4 | Underhood Lamp Tip: Disconnect the electrical harness. |
