Body Control System Schematics

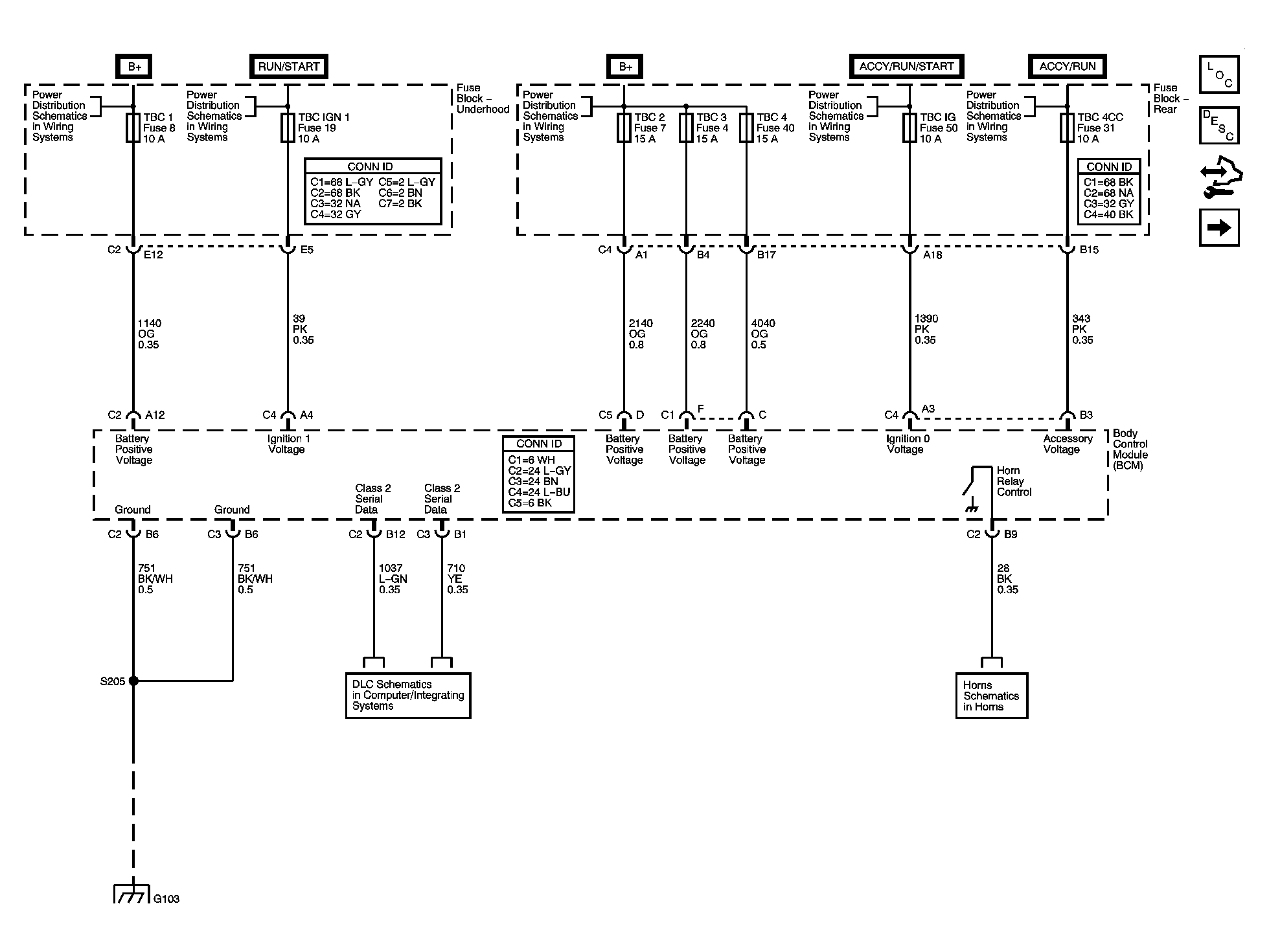

Fig 1: Power, Ground, Serial Data & Horn References Schematic
GM1458609Courtesy of GENERAL MOTORS CORP.

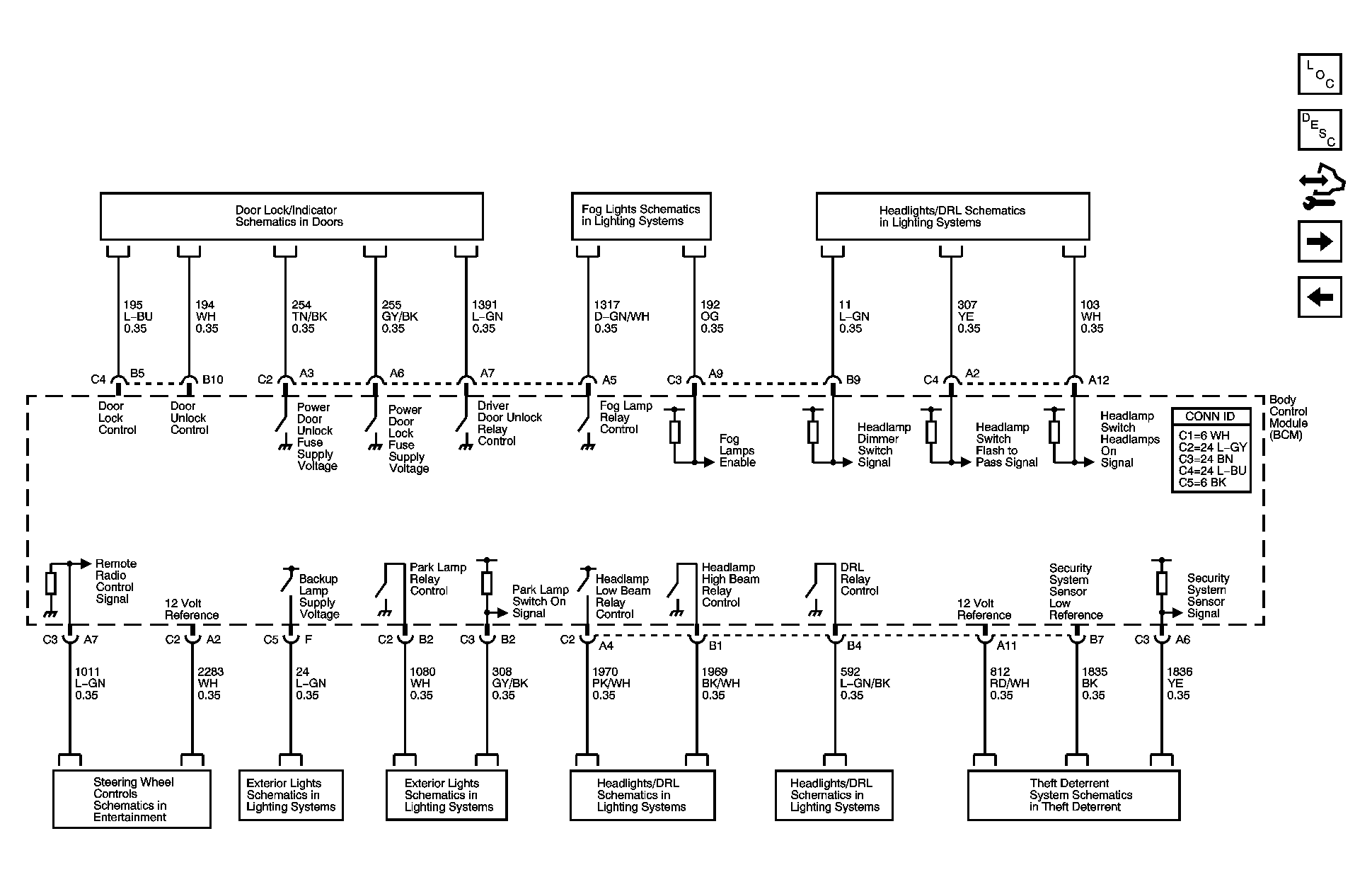

Fig 2: Door Locks, Headlamps/DRL, Exterior Lights & Pass Lock References Schematic
GM1458613Courtesy of GENERAL MOTORS CORP.

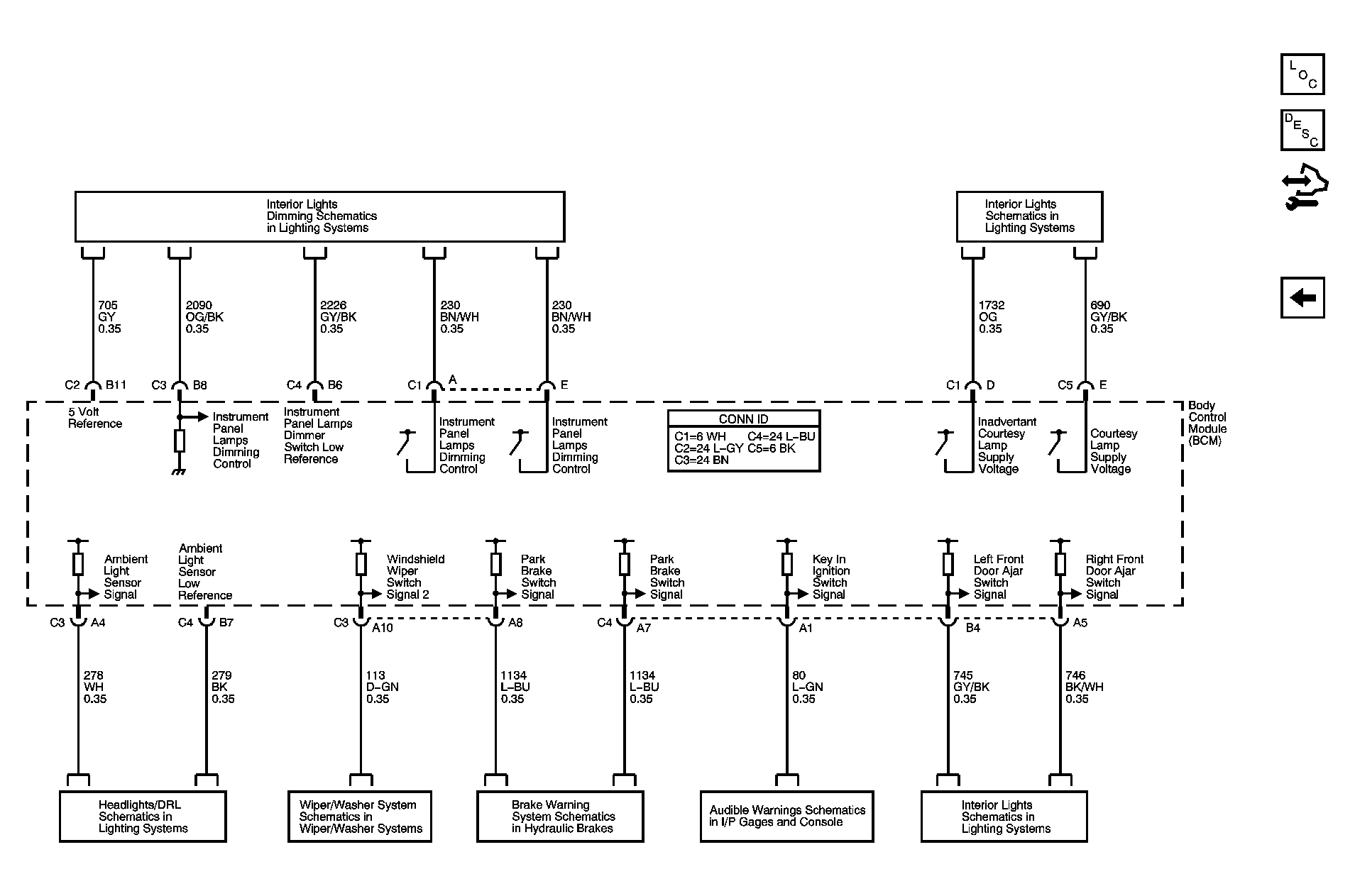

Fig 3: Interior Lights, Interior Lights Dimming, Brake Warning & Audible Warning References Schematic
GM1458615Courtesy of GENERAL MOTORS CORP.
