Disassembly Procedure

    Fig 1: Detent Screw & Input Driveshaft
    GM1251691Courtesy of GENERAL MOTORS CORP.
  1. Remove the detent screw at the end of the input driveshaft
    2. Fig 2: Snap Ring & Gear Cluster
    GM1251692Courtesy of GENERAL MOTORS CORP.
  2. Remove the snap ring at the base of the gear cluster.

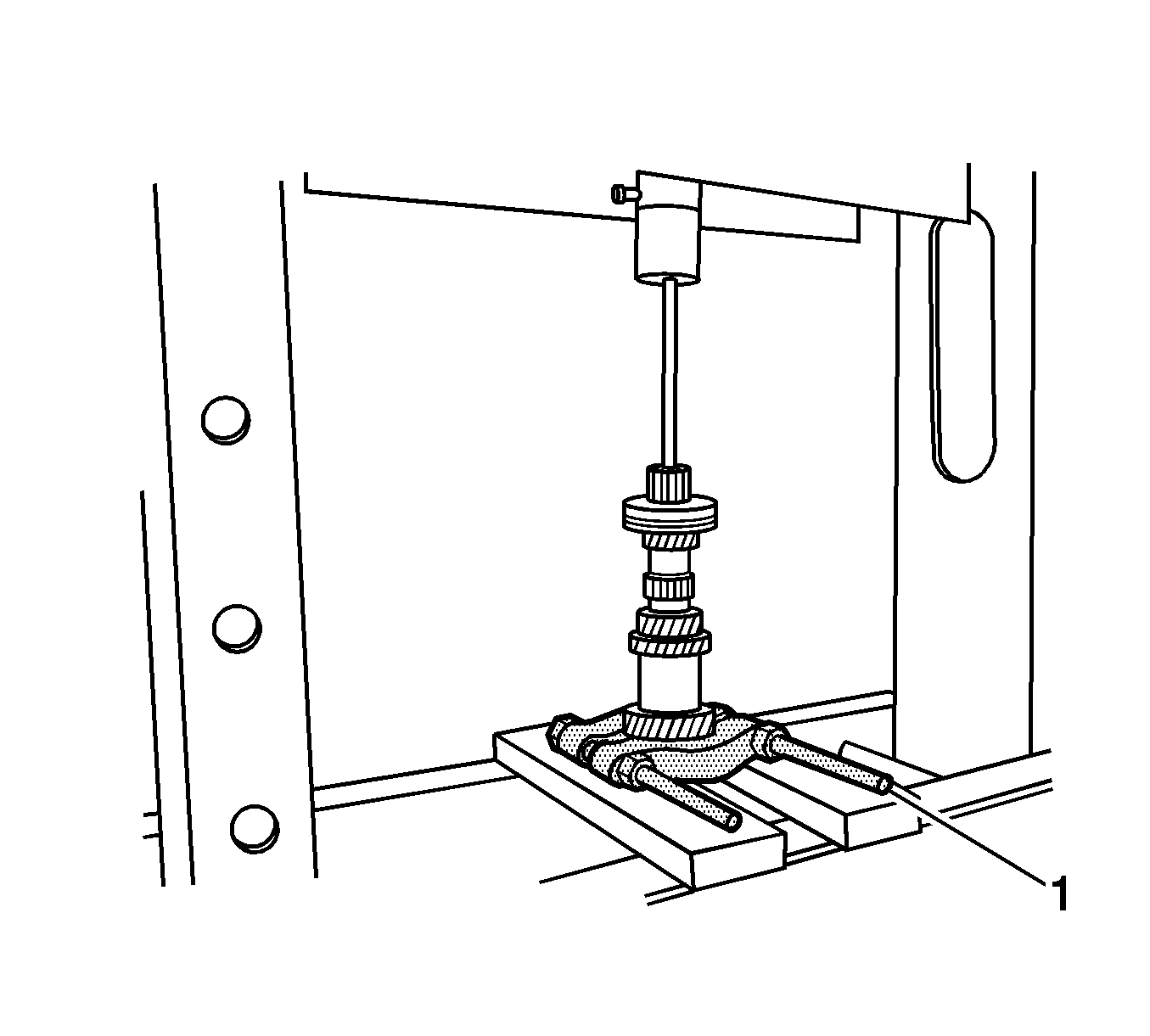

    3. Fig 3: Input Driveshaft Cluster Gear & J 22912-01
    GM1251693Courtesy of GENERAL MOTORS CORP.
  3. Press the input driveshaft from the input shaft cluster gear using the J 22912-01  (1).

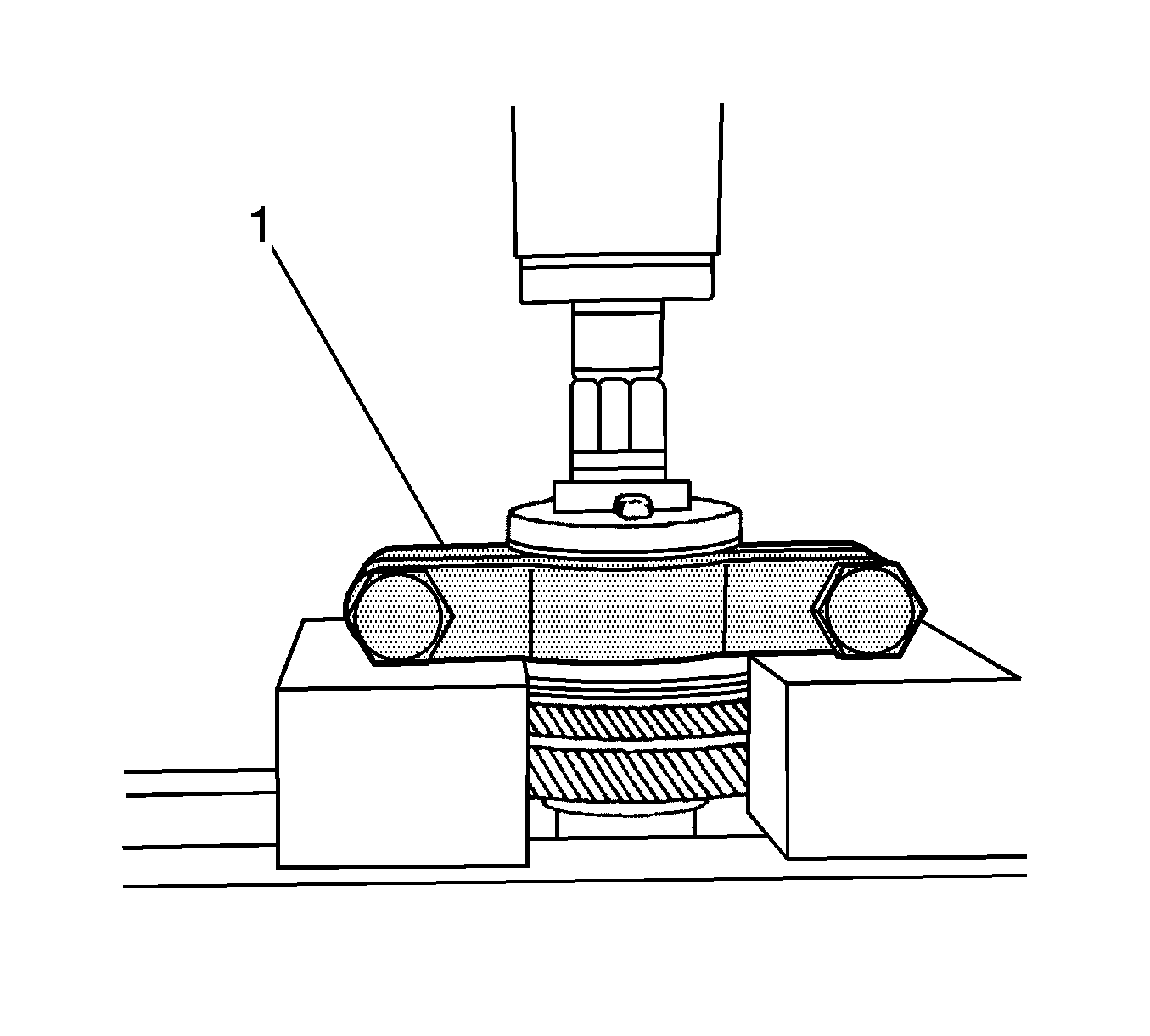

    4. Fig 4: Cluster Shaft Bearing & J 22912-01
    GM1251694Courtesy of GENERAL MOTORS CORP.
  4. Remove the cluster shaft bearing from the input shaft gear cluster using theJ 22912-01  (1).
