Installation Procedure

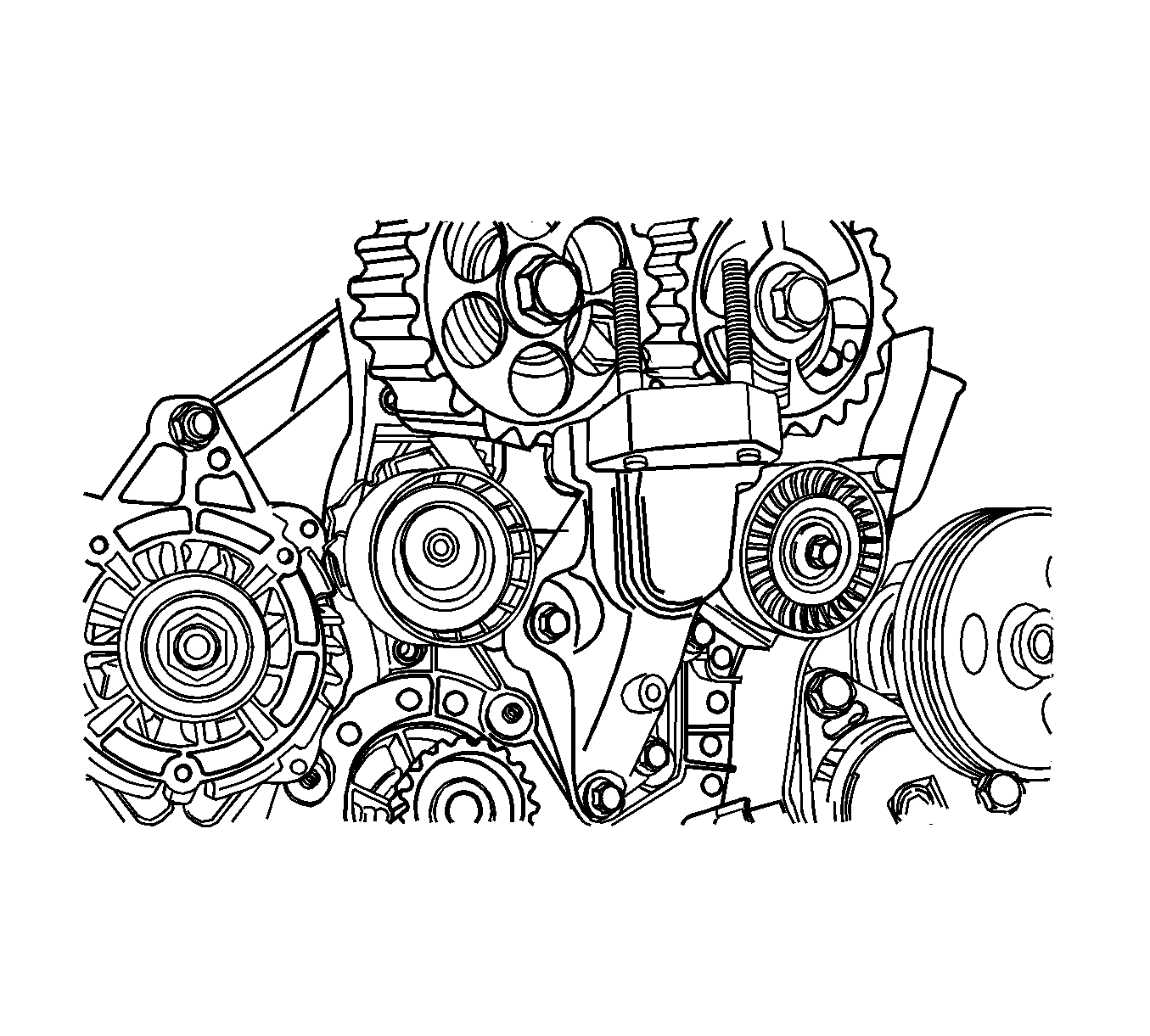

    Fig 1: View Of Engine Mount
    GM1291363Courtesy of GENERAL MOTORS CORP.
  1. Install the engine mount.
    2. NOTE: Refer to Fastener Notice in Cautions and Notices.
  2. Install the engine mount retaining bolts.

    Tighten:  Tighten the engine mount attaching bolts to 30 N.m (22 lb ft)  .

  3. Install the front timing belt cover. Refer to Timing Belt Cover Replacement .

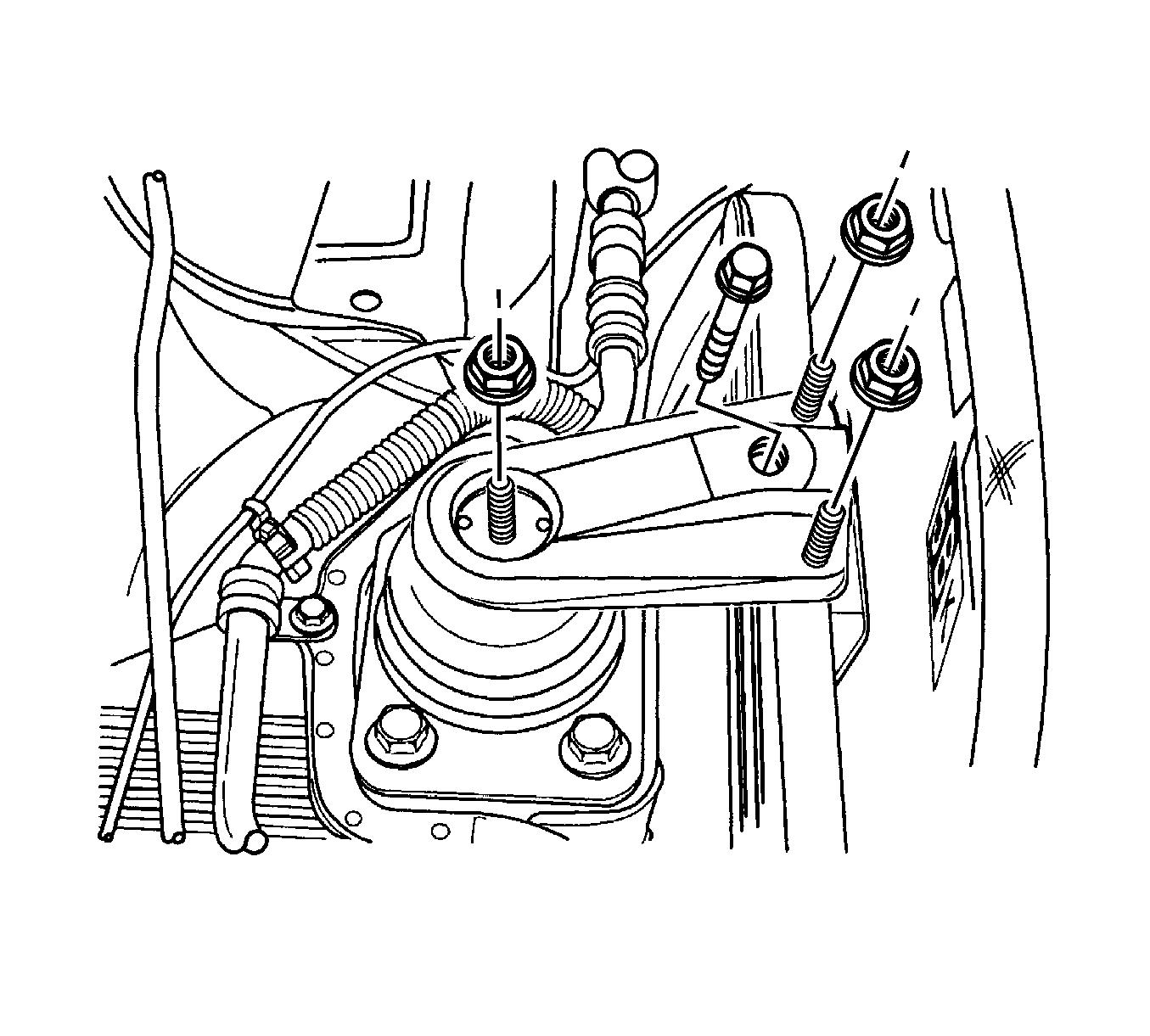

    4. Fig 2: View Of Engine Mount Bracket Attaching Bolts/Nuts
    GM1291231Courtesy of GENERAL MOTORS CORP.
  4. Install the engine mount bracket attaching bolts/nuts.

    Tighten:  Tighten the engine mount bracket attaching bolts/nuts to 55 N.m (41 lb ft)  .

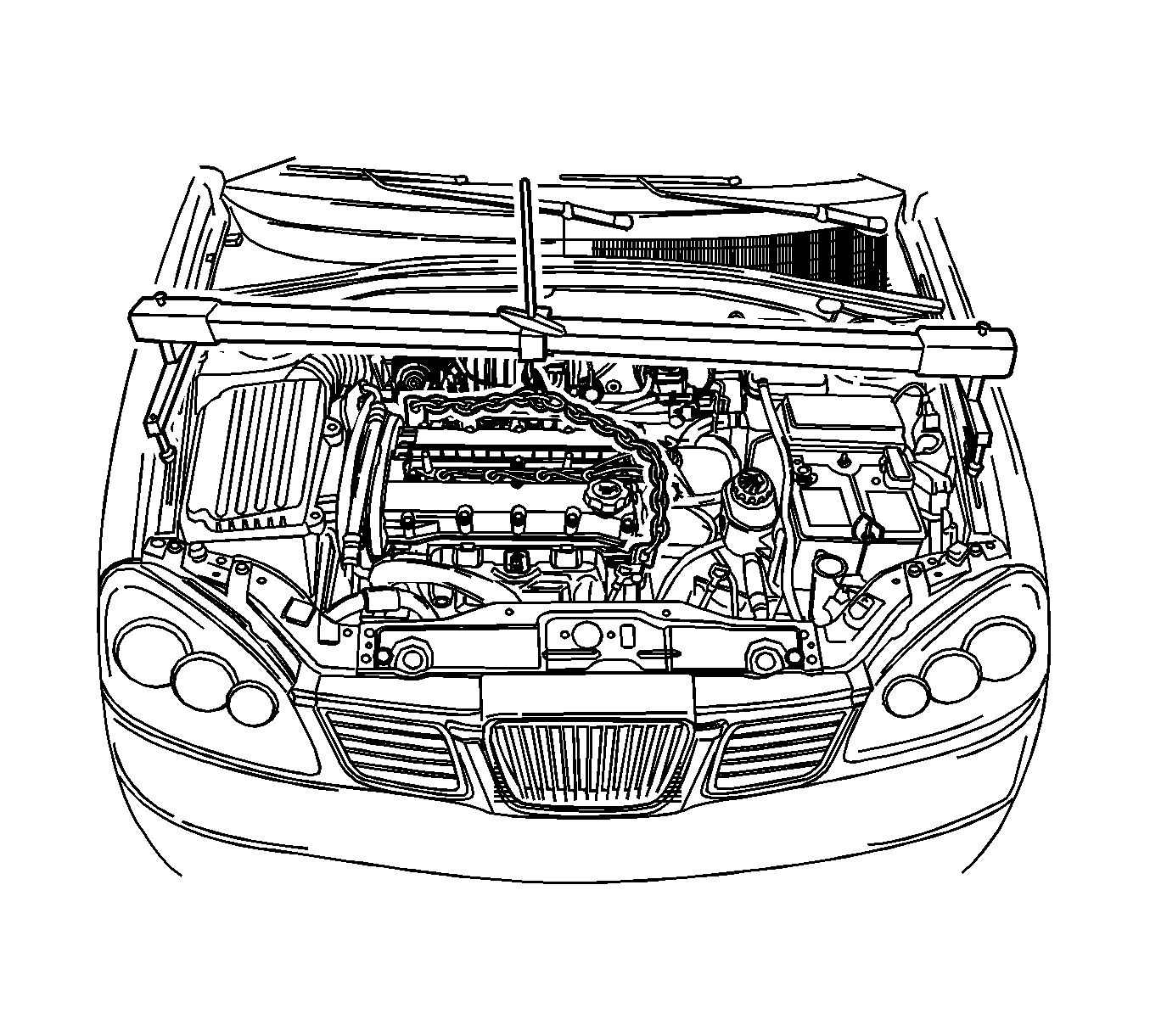

    5. Fig 3: View Of Engine Assembly And J 28467-B
    GM1291350Courtesy of GENERAL MOTORS CORP.
  5. Remove the J 28467-B  .
  6. Connect the negative battery cable.
